Subframe
Topic Started: Feb 16 2009, 06:57 PM (12,246 Views)
metroschultz
Member Avatar
Please just call me; "Schultz"

Bobby called me this afternoon, :fon
While I was in the midst of being pi$$ed off at the F150 for :banghead not cooperating and :banghead allowing itself to be :banghead repaired easily. :banghead
He has purchased a small socket set and removed the fenders, and hood, and front bumper cover, and reinforcement behind the bumper.
I will pick him up tomorrow around 08:30, :coffee where we will asses the damage with greater accuracy, (cause all the parts are out of the way now), then head to Pick-N-Pull to get parts.
I will take more pictures and see if there is anything we overlooked the first time around. :dunno
Offline Profile Quote Post Goto Top

dimetrodon


"Paul, you are one hell of a guy to go out of your way and help these poor unfortunate people with their mishap. Kudos to you man."

Truer words were never written.
Offline Profile Quote Post Goto Top

metroschultz
Member Avatar
Please just call me; "Schultz"

Pickins was slim at the yard today,
All the Geos was beat up :redx (one poor Metro had been hit so hard on three sides it wasn't easy to tell if anybody lived) :holycrap or had been robbed.
All we were able to get was the bumper light assembly, the reinforcement and the filler.
They are supposed to put some more lines :stoner out later this week.
Meanwhile I will call my friend, :fon who just happens to own a junkyard, :tumbleweed and see if he has anything we can use.
Offline Profile Quote Post Goto Top

Demon-hemi
Member
[ *  *  * ]
looks exactly like my wreck i had this weekend, except it was my pass side
Offline Profile Quote Post Goto Top

metrojoe
Member Avatar
smokin'

good job on helping them out :cheers i cant wait to see it when done.
Offline Profile Quote Post Goto Top

Wade
Member Avatar
Fresh Fish
[ * ]
metroschultz
Feb 18 2009, 09:38 AM
Schultz is more than willing to help. :cheers
Metroshultz and I work together. He's tryin' to talk me into helpin', too. But, so far --- he's better'n me. We'll see.
You won't find many out there with Shultzy's caring mindset. He's a great guy as a coworker and friend.

OK, P***, is the butter thick enough?
Offline Profile Quote Post Goto Top

metroschultz
Member Avatar
Please just call me; "Schultz"

I'm gonna beatcha when I get back to work boychile
Offline Profile Quote Post Goto Top

metroschultz
Member Avatar
Please just call me; "Schultz"

UPDATE

Bobby just purchased a 1993 Metro exactly like his crashed 1994.
It needs a little work, but a lot less than the victim.
So this weekend we will be pulling parts from the victim to put on the new one.
This relieves me of the worry about his frame issues.
Upon closer inspection, with the fenders off, there is also frame damage on the right as well as what we already saw on the left.
I must admit now, I was none to keen on doing both the right and left frame horn. One side would have been O.K. then I would use the good side as reference. With 2 bent frame horns I have no reference and since I don't have a body shop manual for point to point measurements it would have been dicey getting all the holes in all the right places.

Soo off to the crusher with you, crash victim.
After we save all the goodness from your insides.
MMMMMMMMMMmmmmmmm Guuuuuuuud.
Offline Profile Quote Post Goto Top

metroschultz
Member Avatar
Please just call me; "Schultz"

Posted Image

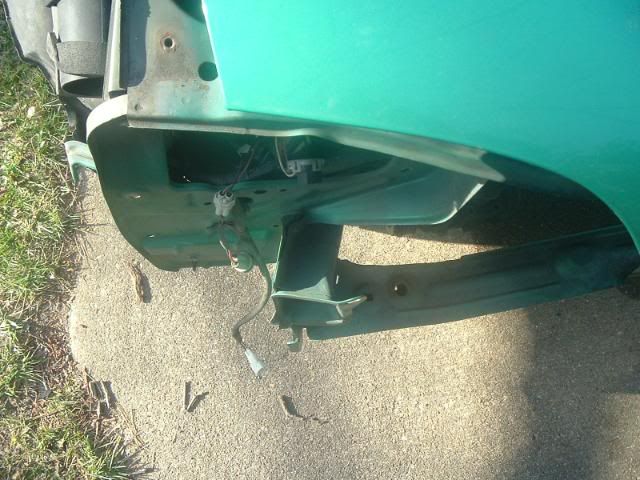

A better look at Thing 1's bent right frame extension.

Posted Image

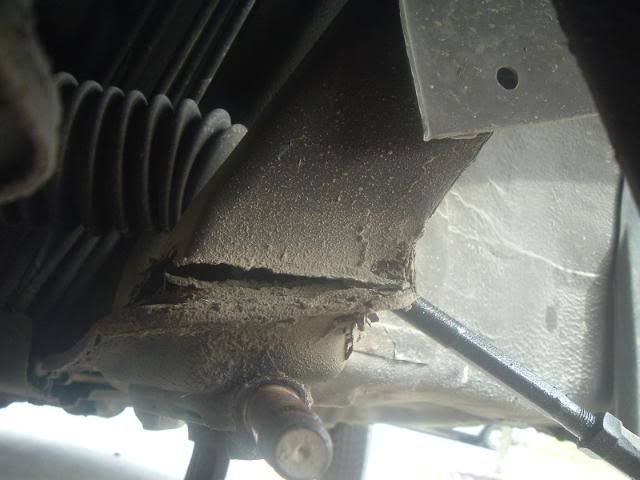

Thing 2

Posted Image

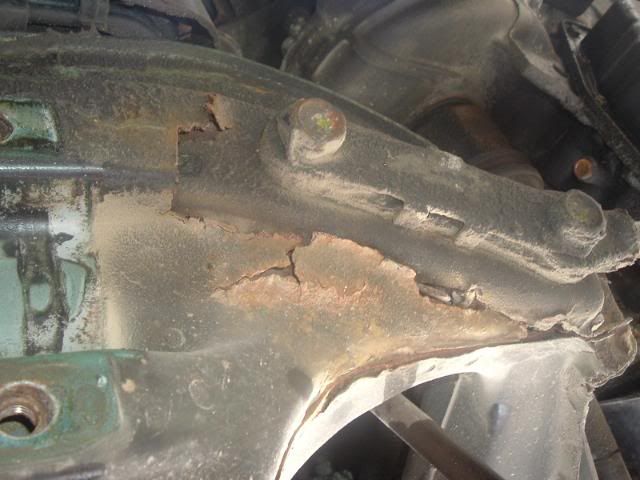

Uh Oh the dreaded frame rot!! In this pic you can clearly see the lower control arm is pulling away from the body.

Posted Image

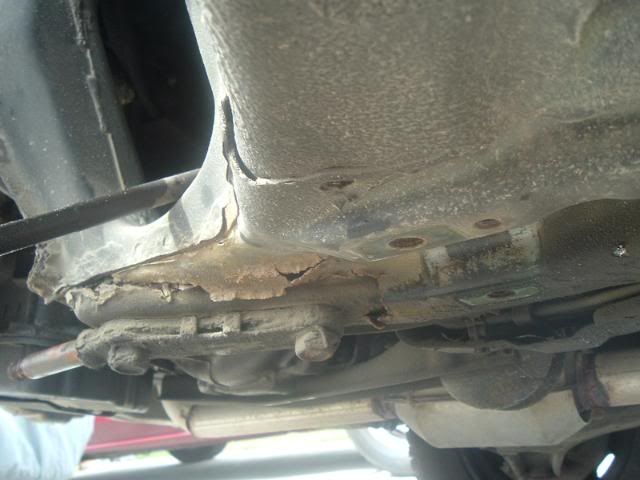

Another view

Posted Image
And another

Posted Image

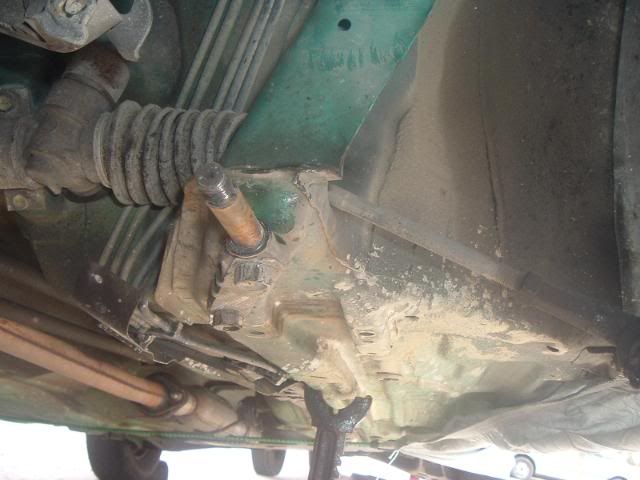

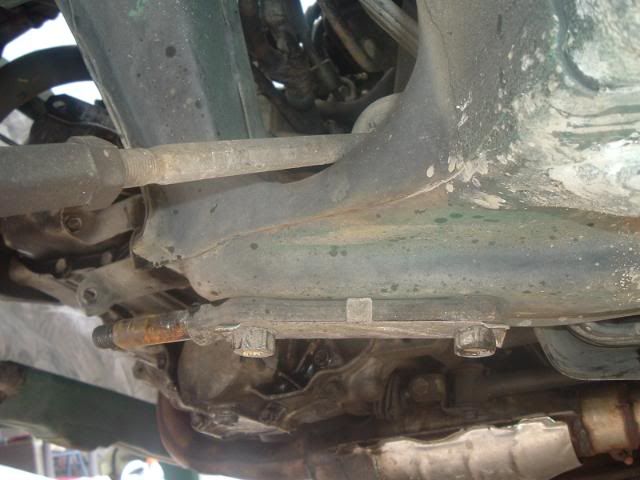

Oooh lookie here, no rust on thing 1. I believe it will work.

Posted Image
Yes I'm sure it will.

These cars are put together with preformed panels. All the panels are spot welded together. I will cut the good lower panel from Thing 1 and weld it to the good body sections of thing 2. Then I will weld some re-enforcements in just like Johnny and the rest of the guys who have experienced the dreaded frame rot.
In the FWIW column,

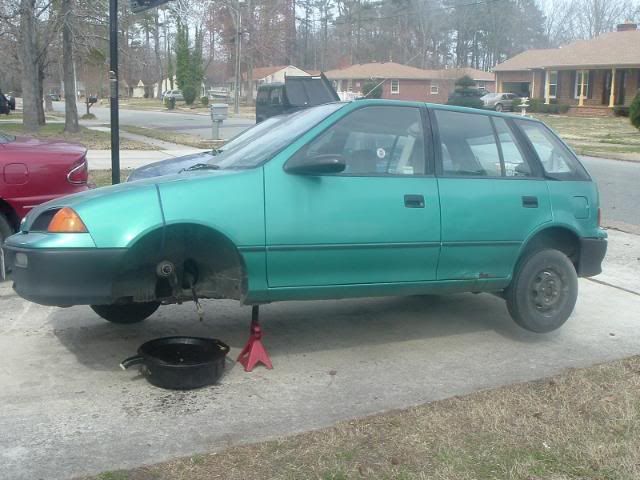

This is the only thing this car needs to be road ready. The previous owner thought the wheel was kicked out due to a bad bearing. We checked the lights and such for Virginia State Inspection. So, tomorrow, Lord willing, we will be welding one Geo frame to another in an attempt to make a really strong front end.
TTFN
Offline Profile Quote Post Goto Top

2000Firefly1.3L
Member Avatar


that's a big job. hope all goes well.
Offline Profile Quote Post Goto Top

Johnny Mullet
Member Avatar
Fear the Mullet

Good luck metroshultz!
Offline Profile Quote Post Goto Top

metroschultz
Member Avatar
Please just call me; "Schultz"

:coffee
It's 07:30 and I'm awake.
Weather is supposed to be $#itty all day.
Nor-Easter blowin in.
Probably the same system that is hitting the Atlanta event. Sorry guys, I didn't want it this weekend either.
Gotta get some food then go cut some Geo.
Offline Profile Quote Post Goto Top

metroschultz
Member Avatar
Please just call me; "Schultz"

We are done for the day.
I have to get cleaned up for the Grandsons Birthday party.
9 this year!
Bobby has the camera and will post pics sometime this evening.
Basically;
We got the good frame piece from Thing 1
and trimmed it down to a usable size.
Then cut bad frame piece from Thing 2
and trimmed just enough metal to get a solid weld all the way around.
I will put some angle iron in areas that appear to be lacking in strength.
and re-enforce what ever else looks "Iffy"
Next weekend we will take the other side and weld it up before it separates from the car like this one did.
TTFN
Offline Profile Quote Post Goto Top

Dirty
Fresh Fish
[ * ]
I learned today that Paul is a lot like Michelangelo. But instead of marble, he uses metal. Here are some pictures of the artist at work.

Posted Image

Posted Image

I'm not sure what the #*%hole in the picture below is trying to do. He looks like one of Santa's elves working on Christmas toys ... and failing.

Posted Image

Here's the hole left behind in "Thing 1."

Posted Image

If you can't bring the car to the garage, bring the garage to the car.

Posted Image

Now if the weather permits, all that's left is to take this:

Posted Image

Posted Image

... and weld it onto "Thing 2."
Edited by Dirty, Feb 28 2009, 10:48 PM.
Offline Profile Quote Post Goto Top

dimetrodon


Paul,

Do you weld with conventional welding rods or do you have a MIG welder? if rods, what rods (number, thickness and brand) do you use and what current settings would be about right for the "tin foil" these cars are made from?

Fred
Offline Profile Quote Post Goto Top
