Mystery piece; Identified at last.....
Topic Started: May 27 2010, 01:51 PM (1,563 Views)
KY Metro
Member Avatar
Member

Picasa is momentarily screwed up, probably my fault.

I've got to go edit all my posts to get the pics back. :banghead

Your patience is appreciated.
Offline Profile Quote Post Goto Top

KY Metro
Member Avatar
Member

Pic is fixed.
Offline Profile Quote Post Goto Top

nerys
Member Avatar
Grr

#4 in the diagram?? - #25 is close but like #30 seems the wrong shape
Edited by nerys, May 28 2010, 10:35 AM.
Offline Profile Quote Post Goto Top

KY Metro
Member Avatar
Member

nerys
May 28 2010, 10:35 AM
#4 in the diagram?? - #25 is close but like #30 seems the wrong shape
I think #4 is the valve cover gasket.....

Really, the only thing Ive been into so far is the head/intake assembly.

It's gotta be for one of those, I think. :ermm: Odd.
Offline Profile Quote Post Goto Top

JellyBeanDriver


Please post a clear picture of what your throttle body opening looks like after you remove the air cleaner cover and filter.

Dave
Offline Profile Quote Post Goto Top

crankcase


Again, I'm almost positive it goes on the throttle body. Look around the top of the throttle body and find the injector wires that are encased in a cloth sheath (rubber insulated wires in a cloth sheath). The little section of cloth sheath winds around this piece (I'm almost sure).

Check a diagram of a throttle body.
Edited by crankcase, May 28 2010, 06:21 PM.
Offline Profile Quote Post Goto Top

91 ragtop
Member Avatar


Crankcase is ALMOST positive but I am 100% Positive that it goes on top of the throttle body. It bolts on under the tower that the air cleaner nut screws on to. Ken....
Offline Profile Quote Post Goto Top

bogs
Member Avatar
Duct tape heals all wounds

nerys
May 28 2010, 10:35 AM
#4 in the diagram?? - #25 is close but like #30 seems the wrong shape
Like I said, my memory sucks, that was the closest one I saw to what I remembered :) Now that I can see it again, though, yah, definitely not that one.

Now that I can see it next to a ruler, and its roughly 4" long, I would suspect the above posts are correct, since you say you've been into the intake etc.
Edited by bogs, May 28 2010, 11:27 PM.
Offline Profile Quote Post Goto Top

KY Metro
Member Avatar
Member

Posted Image

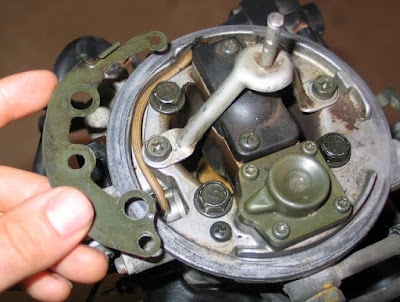

Thanks guys, thats it sure enough.

Seems to be a sort of cover for that sensor wire.
Offline Profile Quote Post Goto Top

91 ragtop
Member Avatar


Did you happen to remove the throttle body from the manifold for some reason ? That would explain why this part was removed. You just took out a few more bolts than necessary, that's all. Ken....
Offline Profile Quote Post Goto Top

KY Metro
Member Avatar
Member

91 ragtop
May 29 2010, 10:03 AM
Did you happen to remove the throttle body from the manifold for some reason ? That would explain why this part was removed. You just took out a few more bolts than necessary, that's all. Ken....
I disassembled the whole intake, cleaned it, painted it, and reassembled it.

See the Project thread here, specifically the intake being painted in this post.
Offline Profile Quote Post Goto Top

JellyBeanDriver


KY Metro
May 29 2010, 09:13 AM
Posted Image

Thanks guys, thats it sure enough.

Seems to be a sort of cover for that sensor wire.
I win
Offline Profile Quote Post Goto Top
