Tofuball's '94 XFi; It's all about city MPG
Topic Started: Mar 12 2011, 08:59 AM (39,430 Views)
dayle1960
Member Avatar
Fastest Hampster EVER

Tofuball
Sep 2 2011, 11:12 PM
It's a bit late, but here is a picture of the suspension being replaced:
Posted Image
Did you spray some sort of bed liner inside the wheel well? If so, it looks nice. Everything in this picture looks nice. You do good work, Tuffy. :thumb
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Haha, thanks!
Everything looks nice because I replaced everything!

After I fixed up the rust I painted it with primer.
Then I painted it bright red.
Then I painted it over with rubberized undercoat.

If the undercoat ever flakes off, I should be able to see the red against the black quite easily :)
Offline Profile Quote Post Goto Top

Coche Blanco
Member Avatar
Troll Certified

I see a sway bar.

Looks like you added stuff too. :P
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

I added that swaybar a long time ago. It got new endlinks in that pic though to replace the old ones.
Offline Profile Quote Post Goto Top

bogs
Member Avatar
Duct tape heals all wounds

You got rx7 rims and didn't post pics of it ?????????
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

The RX-7 guys call them "Phone Dial Rims" - they're usually found on the four lug RX-7 FCs and people throw them out or give them away all the time as they upgrade to the five-lug hubs that have four piston front calipers, vented rear rotors (fronts are always vented), and of course, five lug hubs that can accept nicer rims.

I actually have six. Two with good tires, two with bad tires, and two with no tires. I want to clean the best four of them up and paint them white.

Next I have to figure out what tires to actually buy for them. Even though they're much bigger then the 13 inch wheels\tires I brought home for Tom's car, they feel like they actually do weigh less. I'm thinking I'll go with the same diameter as the stock 13 inch so to net a bit of a highway MPG boost, but not so large that the weight is really holding me down in the city (90% of my driving)
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

bogs
Sep 19 2011, 02:44 AM
You got rx7 rims and didn't post pics of it ?????????
Posted Image

That x4. Happy? ;)
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

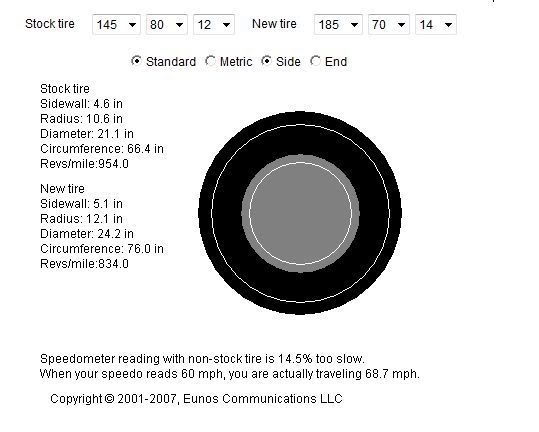

They're 185-70-14 (834r/m)
Vs the stock 145-80-12 (11lbs each, 954r/m)
Supposedly the 13 inch wheels are 155-80-13, and 16lbs each. (886r/m)

185-60-14 would net 887r/m - same as the stock 13 inch. They seem to be 16 to 18lbs a tire.
175-65-14 would net 879r/m - similar and they weigh a pound less usually, bonus that they are thinner and seem to be more common. (51PSi, 16lbs, $57)
165-65-14 would net 899r/m - LRR, 44PSI, 13LBS, but $85 each!

Posted Image

What are your thoughts?
Edited by Tofuball, Sep 19 2011, 09:12 AM.
Offline Profile Quote Post Goto Top

bogs
Member Avatar
Duct tape heals all wounds

Tofuball
Sep 19 2011, 07:22 AM
bogs
Sep 19 2011, 02:44 AM
You got rx7 rims and didn't post pics of it ?????????

That x4. Happy? ;)
Happy-er, but mounted you insensitive clot ! :evillol
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

I need to buy those gorilla lug nuts or whatever first, apparently, wouldn't I? :)

Edit: Ordered them. Should be here in 3 to 5.

I'm thinking of cleaning all the rims up and painting them white, my friend Jon tells me I should save the weight.
Edited by Tofuball, Sep 19 2011, 02:46 PM.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

I finally toasted that old RBC12 I was using. It had a decent run for how beat up it was. I left the lights on by accident one night last week and it never really recovered from that.

But I consider the test a success because it let me know that a single ancient\refurbished RBC12 was the minimum of adequate.

I ordered two brand new ones for $44.
Edited by Tofuball, Sep 20 2011, 10:03 AM.
Offline Profile Quote Post Goto Top

Coche Blanco
Member Avatar
Troll Certified

Tofuball
Sep 20 2011, 10:02 AM
I ordered two brand new ones for $44.
Total, or?
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Total. Shipped.
Offline Profile Quote Post Goto Top

Coche Blanco
Member Avatar
Troll Certified

I plan on getting this one. Guys over at TeamSwift says it does fine...and it's super light. Like 1.5lbs or something.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Cool. Too small for me.

Also! My bathroom scale says:
the stock 13" Geo rim + tire is 27lbs (155-80-13) (886r/m)
the stock 14" RX7 rim + tire is 30lbs (185-70-14) (834r/m)
Offline Profile Quote Post Goto Top
