Tofuball's '94 XFi; It's all about city MPG
Topic Started: Mar 12 2011, 08:59 AM (39,426 Views)
starscream5000
Member Avatar
Got 70 MPG?

It's easier to pull both than to wrestle the tranny back on to the motor.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Yeah, always fun lining those things up. I've always been pretty crazy about getting them perfectly aligned the first time so the trans slides right in, but I figure either way you're right, so as a unit I shall pull it.


WHEELS:
The RX-7 wheels make this car handle and brake awesome. I now think the stock wheels\tires were a safety hazzard compared to how much better the car behaves.

Downside? Clutch wear, and a little more effort to accel.

BATTERY:
The two RBC2 batteries and the capacitor start the car reliably and quickly every time without an under-voltage (no more lost radio stations).
Edited by Tofuball, Oct 11 2011, 07:56 AM.
Offline Profile Quote Post Goto Top

snowfish
Member Avatar
Basic GearHead

starscream5000
Oct 10 2011, 09:05 PM
It's easier to pull both than to wrestle the tranny back on to the motor.
:thumb :+1 Too much wrestling, the other way, for me. :gamerz
Offline Profile Quote Post Goto Top

Bad Bent
Member Avatar
Facetious Educated Donkey

I did one install plus a pull and install with just removing the crank pulley on bot the '91 and '96. I didn't want to get into removing axles at the time. Lowered the engine onto a floor jack with a pan sized piece of plywood on it to prevent denting. Keep the rope taught from above and maneuver the jack a little to align bolt holes. :-/
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

I pulled the engine without removing the trans and without a lift.

Tom told me I could have his old engine. My plan is to make this engine my max MPG engine.
Edited by Tofuball, Oct 20 2011, 05:34 PM.
Offline Profile Quote Post Goto Top

Alpine
1020cc G10 GOML

i pulled my engine with my friend and my arms.

put it back in the same way, except i was under the motor holding the tranny and engine level
Offline Profile Quote Post Goto Top

DevLocus
New Member
[ *  * ]
Reminds me of the time with the Mustang engine ... but a lot lighter I am guessing ...
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Yeah, we stripped that mustang engine though, it was just the short block, but still a big chunk of iron. Geo engine was the whole engine and accessories. Weighed in at 155lbs.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Got Tom's old engine completely apart. The previous owner did horrible things to this engine, it's obvious they've been in here, denting and scratching everything.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Picture time!

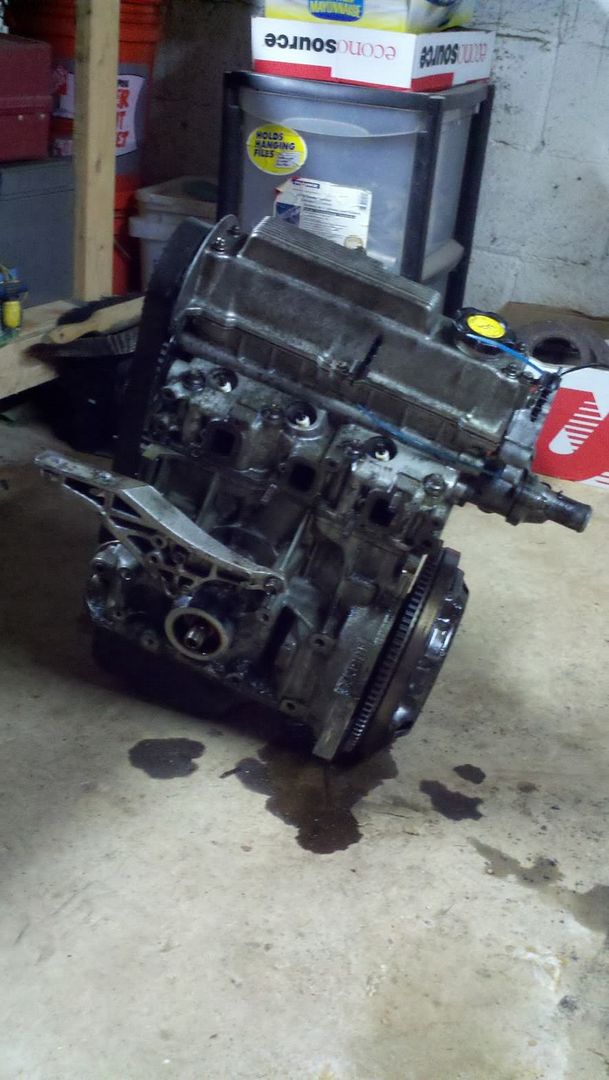

Tom's car is a 2000 Chevy Metro, I think. Here is his old engine out:
Posted Image

Well, really is not much to these engines:
Posted Image

This engine has a lot of issues. I think it was run very low on oil. Also, check out the crank:
Posted Image

Deja 'vu
Posted Image
Edited by Tofuball, Oct 22 2011, 06:29 PM.
Offline Profile Quote Post Goto Top

Bad Bent
Member Avatar
Facetious Educated Donkey

Looks like the oil that should have been on the crank was on the outside of the engine, eh.
But it makes for pretty line patterns around the crank shaft. :-/
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

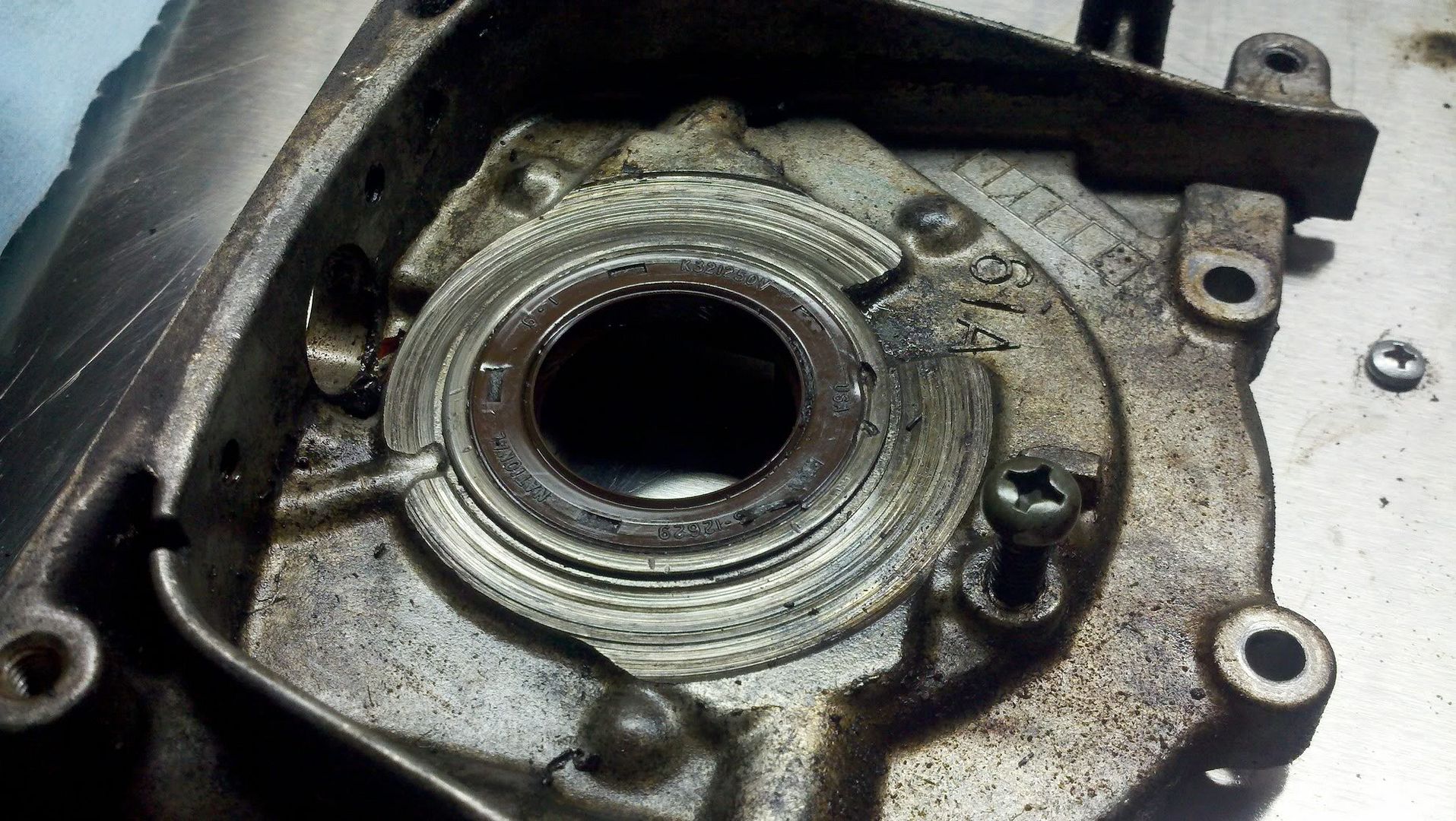

Oh no, I've got better;

Posted Image

What is this, the wrong year crank? I don't even . . . .

Posted Image
Edited by Tofuball, Oct 22 2011, 07:20 PM.
Offline Profile Quote Post Goto Top

Memphis metro


Worn thrust bearings.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

The RX-7 sold.

The block and crank are going to the machine shop tomorrow.

Next project: 1985 Celica GTS: Manual RWD 22R.
Edited by Tofuball, Oct 23 2011, 07:18 PM.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

OK, I hope I'm right about this because I'm about to start cutting.

This is what I measured:
Piston dish: 5ml
Head chamber size: 32ml

What is our head gasket compressed thickness?
What is the stock piston to deck clearance?

Thread I posted: http://geometroforum.com/topic/4555781/1/
Edited by Tofuball, Oct 24 2011, 09:22 PM.
Offline Profile Quote Post Goto Top
