Tofuball's '94 XFi; It's all about city MPG
Topic Started: Mar 12 2011, 08:59 AM (39,422 Views)
Tofuball
Member Avatar
Strange Mechanic

Fun fact: Cyl three is the last to get coolant. I wonder if that slight heat increase contributes the the frequency of it's burnt exhaust valve . . .
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Total seal piston rings part number X8024 fits our application. Three rings with the second ring being gapless.
I emailed their tech and he said the gapless ring is slightly lower tension then a stock ring.

I emailed them asking about price. Standard premium rings from rock auto are ~$50 IIRC.

EDIT: They got back to me, $122.56 w/o an acct. I asked them how one would get an account.

Here is the listing from summit: http://www.summitracing.com/parts/TSR-X8024-20/ where it's $121
And from some other random site for $103: http://sdparts.com/details/total-seal-piston-rings/totx8024-20

Edited by Tofuball, Nov 7 2011, 11:22 PM.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Installed new tires and rims. They're 23lbs each with tire.
Edited by Tofuball, Nov 11 2011, 05:23 PM.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Pistons came. Block goes back to machine shop tomorrow for the overbore and re-hone.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

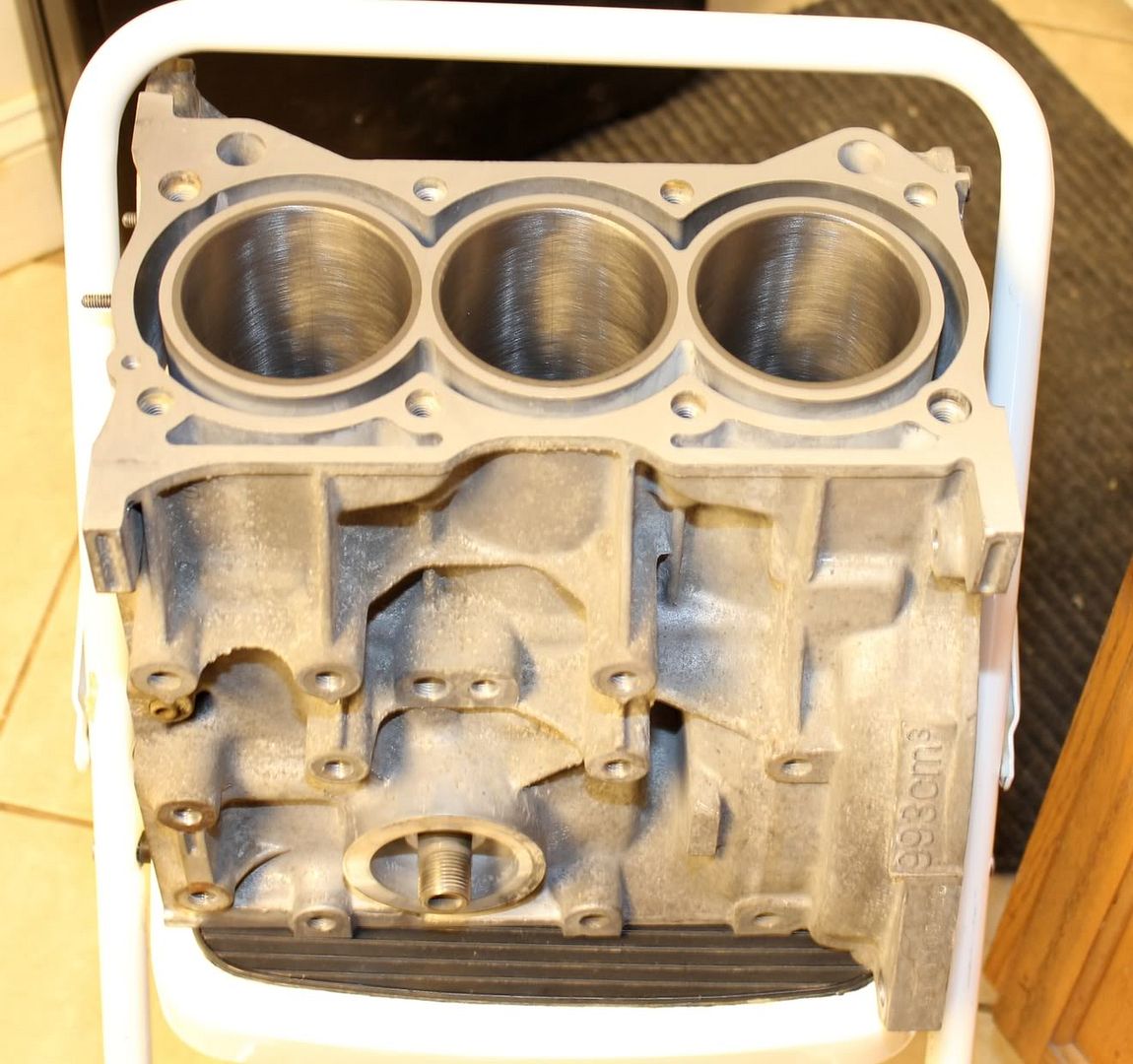

Oh, good, the block is back from the shop. No more scratchy bores.

Posted Image

Let's clean it off and mask it off . . .

Posted Image

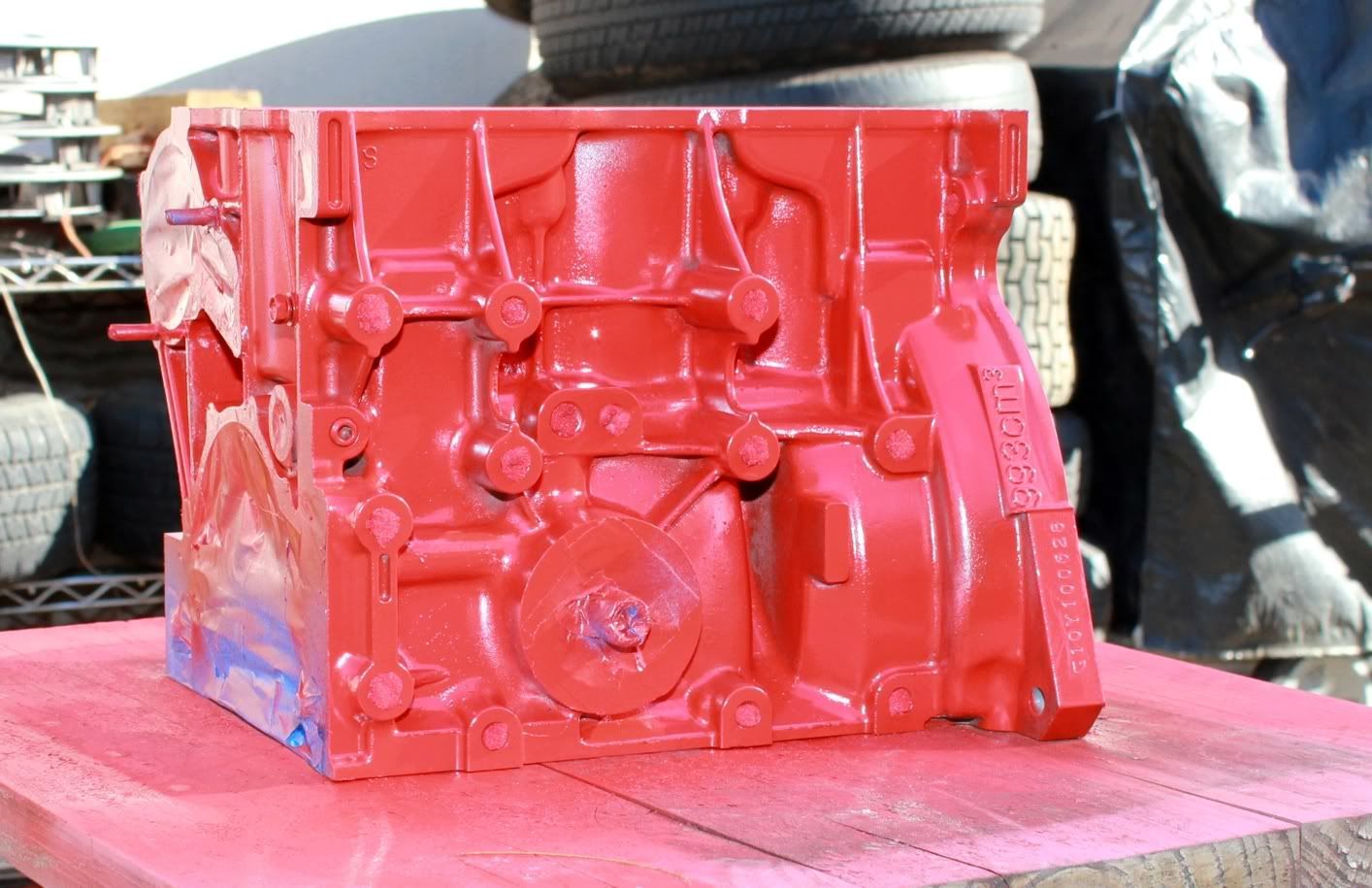

I see a red block . . .

Posted Image

. . . I want to paint it black . . .

Posted Image

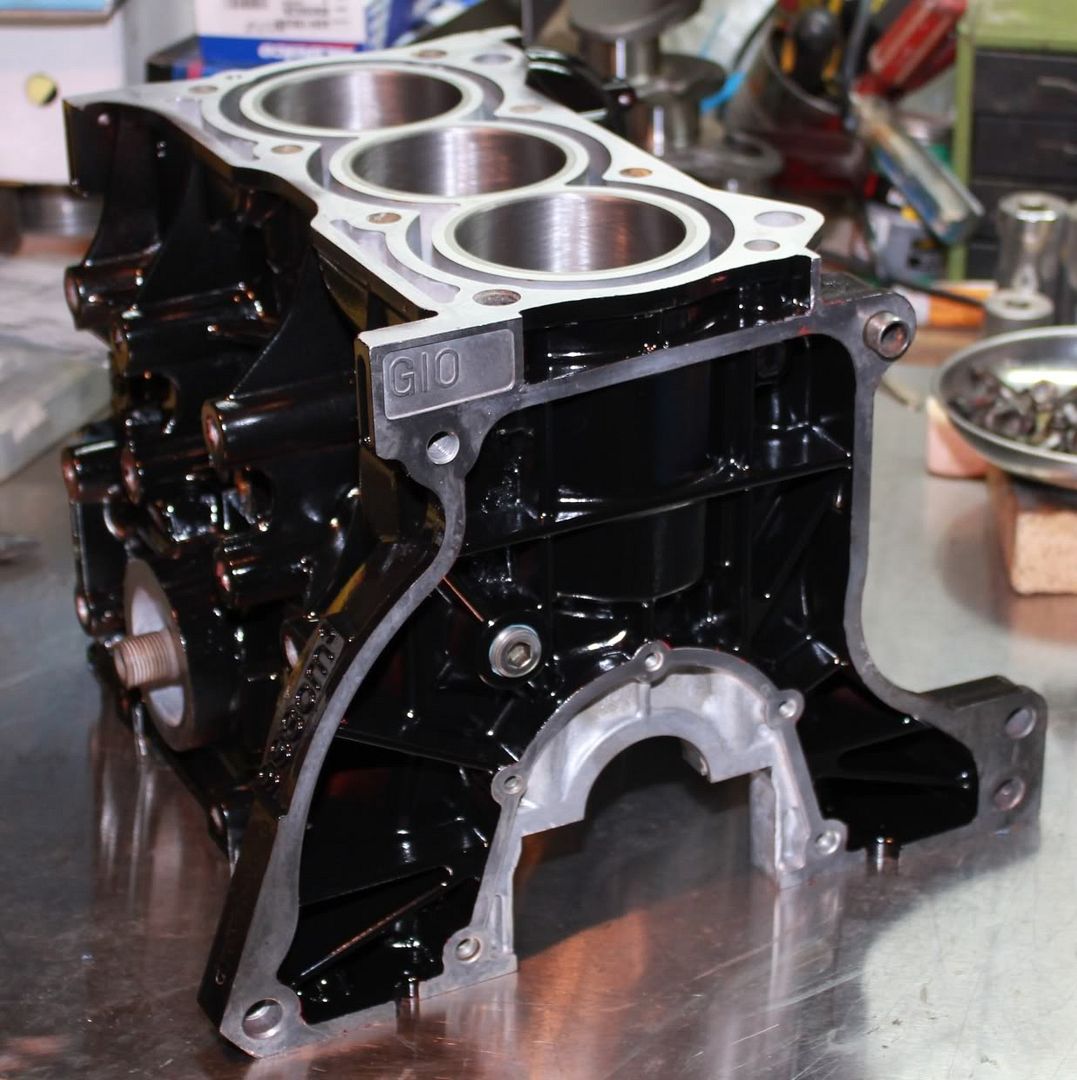

. . . no colors anymore . . .

Posted Image

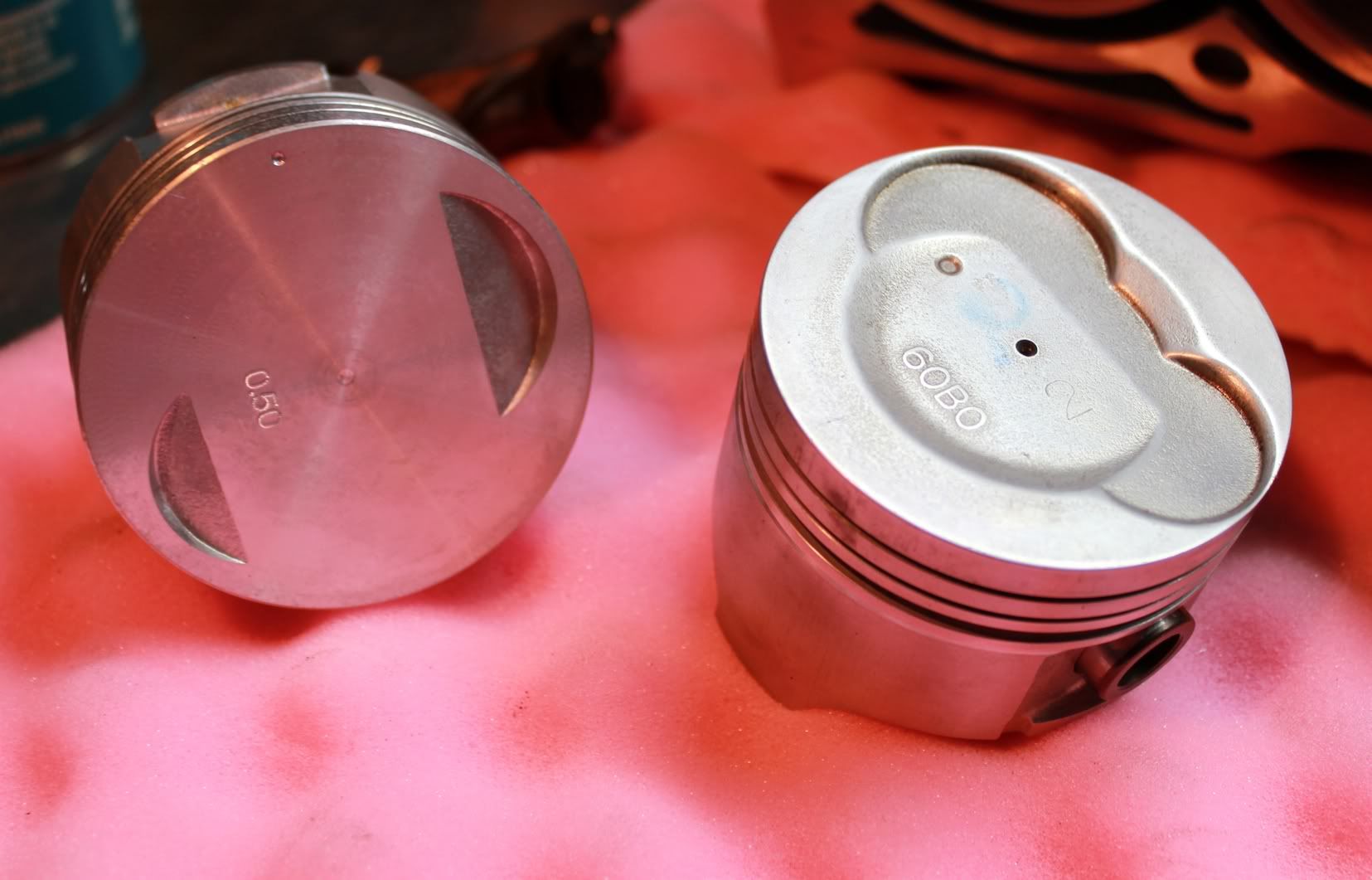

PvP: Piston vs piston. Stocker is on the right and the flat top is a later model 4 cyl piston.

Posted Image

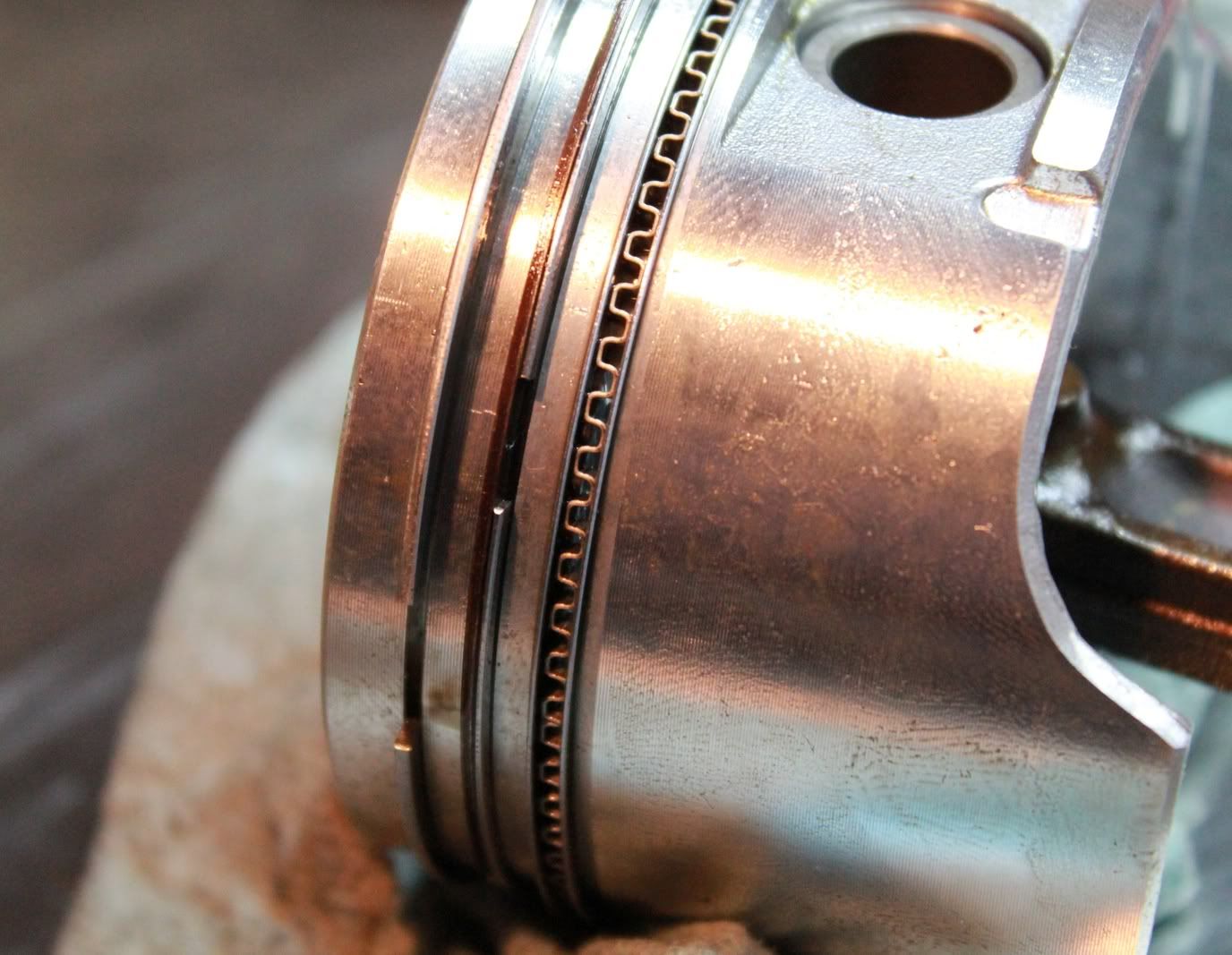

Total seal piston rings . . . these are the 2nd ring gapless style rings.

Posted Image

See the middle ring? It's actually two rings, a carrier and a rail . . . gapless.

Posted Image

I got the crank\pistons\mains into the block and next I have to figure out the o rings on the oil pump . . . It's bedtime for me now . . . hope you enjoy the pictures.
Edited by Tofuball, Nov 20 2011, 12:55 AM.
Offline Profile Quote Post Goto Top

Coche Blanco
Member Avatar
Troll Certified

Are you going to machine those? (Have we decided if you have to or not?)
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

I'm going to try running them as-is to see what problems would arise and if they could be fixed with a little tuning. If it's too much of an issue it's not that big a deal to pop them out and ship them to 3tech.
Offline Profile Quote Post Goto Top

Scoobs
Member Avatar
:D

you should just get the rotating assembly balanced, trust me, it makes one hell of a difference, and is worth it.
Offline Profile Quote Post Goto Top

snowfish
Member Avatar
Basic GearHead

Looking great! :thumb Like the Stones reference too. B-) With the G13 pistons, is your G10 now an interference engine? :news
Edited by snowfish, Nov 20 2011, 11:11 AM.
Offline Profile Quote Post Goto Top

t3ragtop
Member Avatar
Turbo3 and Twincam Tweaker

Tofuball
Nov 7 2011, 10:22 AM
Fun fact: Cyl three is the last to get coolant. I wonder if that slight heat increase contributes the the frequency of it's burnt exhaust valve . . .
tofu,

add this to your fun fact. cylinder #2 shares it's water jacket with cylinders #1 and #3 which cheats it on cooling. i think that has something to do with the crumbling ring lands in the #2 hole on the turbo3 engines.

getting into the operation of the megasquirt in sequential mode, the new ms2extra 3.1.1 firmware adds a third injection table, variable fuel trim, which allows you to add fuel in a small percentage to an individual injector. that lets you control the fire deck temps in each cylinder by running a tad bit richer.

i have always wondered if the egr circuit had something to do with the #3 exhaust valve burning. the port is pulled off the exhaust runner from the #3 hole and the passage runs through the head on the #3 end. my 91 verts never had the egr and i've had little trouble with them burning the #3 exhaust valve.

the black looks good on the block. ;)
Offline Profile Quote Post Goto Top

Scoobs
Member Avatar
:D

should have been my favorite lime green :D
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Steved82971
Nov 20 2011, 11:09 AM
you should just get the rotating assembly balanced, trust me, it makes one hell of a difference, and is worth it.
Too late now! :)
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

snowfish
Nov 20 2011, 11:11 AM
Looking great! :thumb Like the Stones reference too. B-) With the G13 pistons, is your G10 now an interference engine? :news
Thanks! 3tech says it would not be interference.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

t3ragtop
Nov 20 2011, 11:12 AM
Tofuball
Nov 7 2011, 10:22 AM
Fun fact: Cyl three is the last to get coolant. I wonder if that slight heat increase contributes the the frequency of it's burnt exhaust valve . . .
tofu,

add this to your fun fact. cylinder #2 shares it's water jacket with cylinders #1 and #3 which cheats it on cooling. i think that has something to do with the crumbling ring lands in the #2 hole on the turbo3 engines.

getting into the operation of the megasquirt in sequential mode, the new ms2extra 3.1.1 firmware adds a third injection table, variable fuel trim, which allows you to add fuel in a small percentage to an individual injector. that lets you control the fire deck temps in each cylinder by running a tad bit richer.

i have always wondered if the egr circuit had something to do with the #3 exhaust valve burning. the port is pulled off the exhaust runner from the #3 hole and the passage runs through the head on the #3 end. my 91 verts never had the egr and i've had little trouble with them burning the #3 exhaust valve.

the black looks good on the block. ;)
I'm going to have a thermocouple in each exhaust port - so that third injection table will certainly come in handy :)
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Steved82971
Nov 20 2011, 12:10 PM
should have been my favorite lime green :D
Oh, I totally would have, you see, I just didn't have any laying around ;)

Seriously though, bright colors (neon green, bright red, metallic blue, etc) look great as accents on a gloss black object.
Offline Profile Quote Post Goto Top
