Tofuball's '94 XFi; It's all about city MPG
Topic Started: Mar 12 2011, 08:59 AM (39,420 Views)
starscream5000
Member Avatar
Got 70 MPG?

Don't forget to brace the intake manifold Tofu. As T3 has mentioned before, without bracing you will crack those long runners.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

I have the brace and drilled the holes for it.
What you see is a mock up. I am not using those injectors.

I am going to try using Honda Insight injectors.
Offline Profile Quote Post Goto Top

t3ragtop
Member Avatar
Turbo3 and Twincam Tweaker

a late response, sorry.

suprf1y had sent me pics of the ends of various suzuki camshafts and the g10 is way different than the sohc 16v making the use of the late model cam angle sensor and housing incompatible.

turbohull use a gutted g10 distributor as a cam angle sensor on his turbo3/ sequential megasquirt2extra configuration. my project uses the space where the distributor lives for the water to air intercooler charge air piping which is why i developed my cam timing gear mounted "flying magnet"/ hall effect device cas.

tofu, your engine is looking good. 8 months isn't over the top for project development like yours. i'm 24 months into my project and i'm still pushing the development of my electronics packages. the mechanical systems seem to be easier to deal with but the real majik is in the controls.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

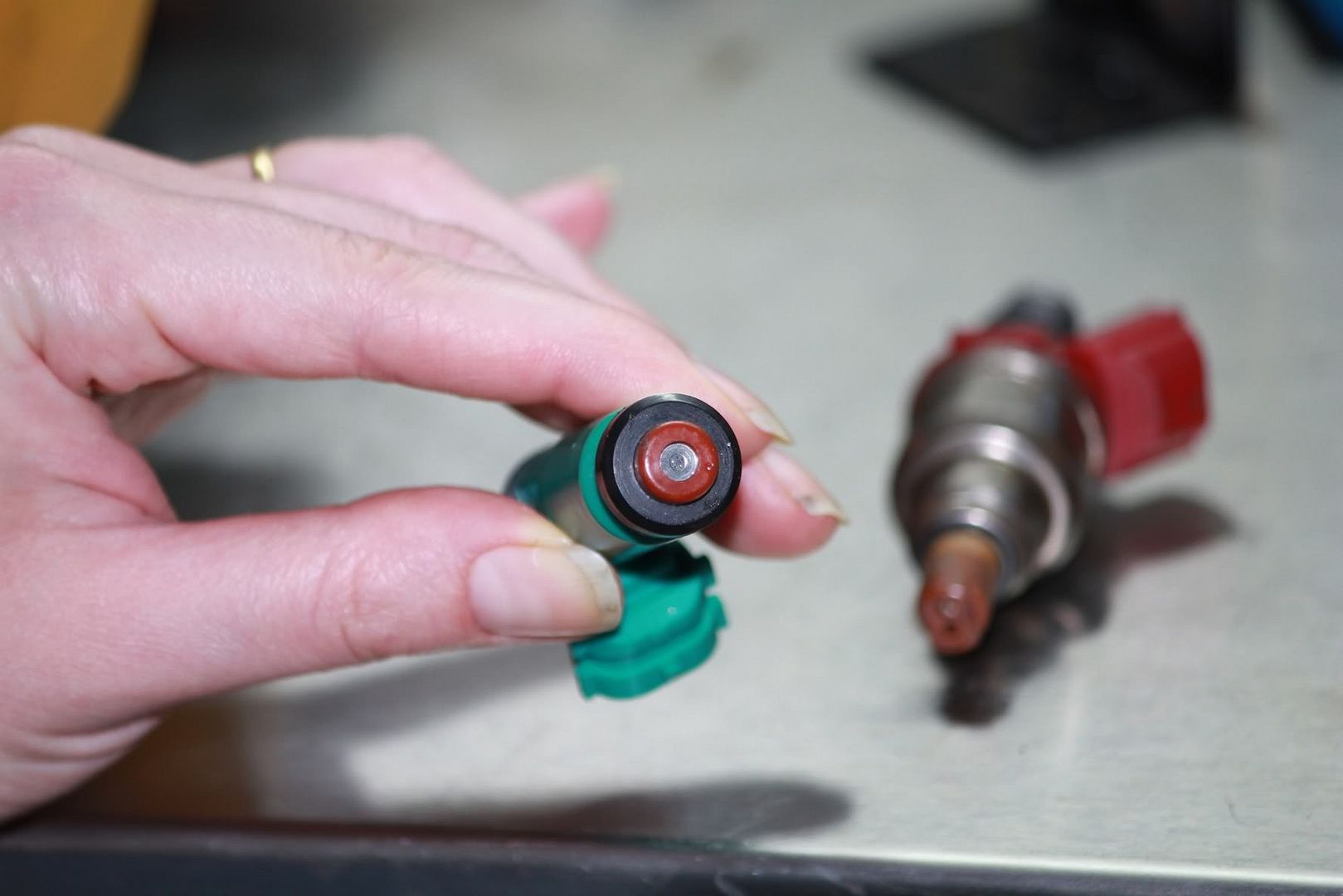

The injectors came - they're from the first gen insight.

Posted Image

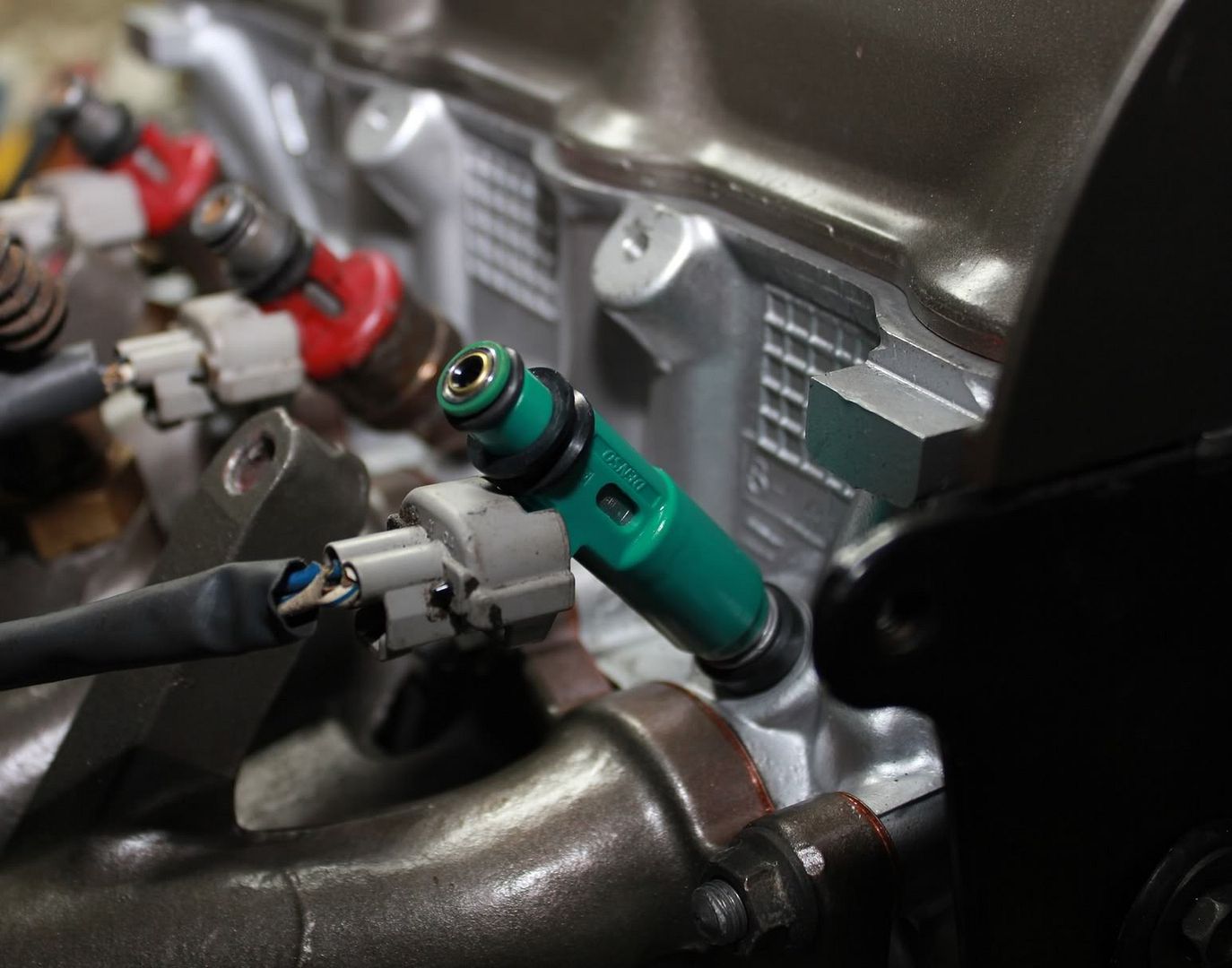

And will you look at that, they fit perfectly (same height, diameter, etc and all) and I was not expecting this, but . . .

Posted Image

. . . the injector clips from the stock harness fit . . . (I still have to replace the wires, but I don't have to cut any clips off any other harnii!)

Posted Image

You can see in the picture above the different "fogger" style of the injector :)
Offline Profile Quote Post Goto Top

bogs
Member Avatar
Duct tape heals all wounds

Nice surprise :)
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

The last picture with the injector pointing at the camera, you have to click "view picture" and then show at full zoom so you can see the five orifices.
Offline Profile Quote Post Goto Top

bogs
Member Avatar
Duct tape heals all wounds

Tofuball
Dec 2 2011, 10:12 AM
The last picture with the injector pointing at the camera, you have to click "view picture" and then show at full zoom so you can see the five orifices.
To see them better you mean. I can actually see them in the picture in post, much easier to see when the picture is larger though :thumb
Offline Profile Quote Post Goto Top

starscream5000
Member Avatar
Got 70 MPG?

Dude, trim those fingernails already... :zombie1
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

No way. Growing them that long was hard enough.
Offline Profile Quote Post Goto Top

Coche Blanco
Member Avatar
Troll Certified

Looking good :rocker
Edited by Coche Blanco, Dec 3 2011, 09:45 AM.
Offline Profile Quote Post Goto Top

rmcelwee
Member Avatar


Tofuball, I finally got around to reading this build thread. Very nice!

One question, a while back you started getting 58 MPG highway but I am not understanding what all you did to achieve this. I've seen mods thrown in here and there during the spare engine rebuild but I just can't get my head around what I can realistically do to my daily driver to dramatically increase my MPG (short of sequential injection and MS) like you did. I sold my XFI trannied MPG test car a while back and I'm currently driving a non-xfi '94. Thanks!
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Thank you!

I'm running pretty stock XFi except taller wheels, an advanced cam (one tooth), and a non-restrictive exhaust.

The mods I'm posting are for an engine and computer that isn't in the car yet.
Edited by Tofuball, Dec 5 2011, 07:45 AM.
Offline Profile Quote Post Goto Top

rmcelwee
Member Avatar


Thanks!

I'm with a few other people who thought advancing the cam by a tooth would equal crappy running car. Still not sure how you are getting away with it but if it works it works. I might try it on the XFI I am getting ready to look at buying.
Offline Profile Quote Post Goto Top

starscream5000
Member Avatar
Got 70 MPG?

I do that too (one tooth advanced) as well as an advanced cam gear. It's doable, but you can't give it a lot of gas or it starts pinging really bad.

Basically, doing it like this forces yourself into driving the car slow, thus increasing your MPGs.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Lol. I have no ping. You don't need as much timing advance w/ cam advanced.
Edited by Tofuball, Dec 5 2011, 02:56 PM.
Offline Profile Quote Post Goto Top
