Tofuball's '94 XFi; It's all about city MPG
Topic Started: Mar 12 2011, 08:59 AM (39,416 Views)
Tofuball
Member Avatar
Strange Mechanic

snowfish
Feb 6 2012, 08:57 AM
Tofuball
Feb 6 2012, 07:53 AM

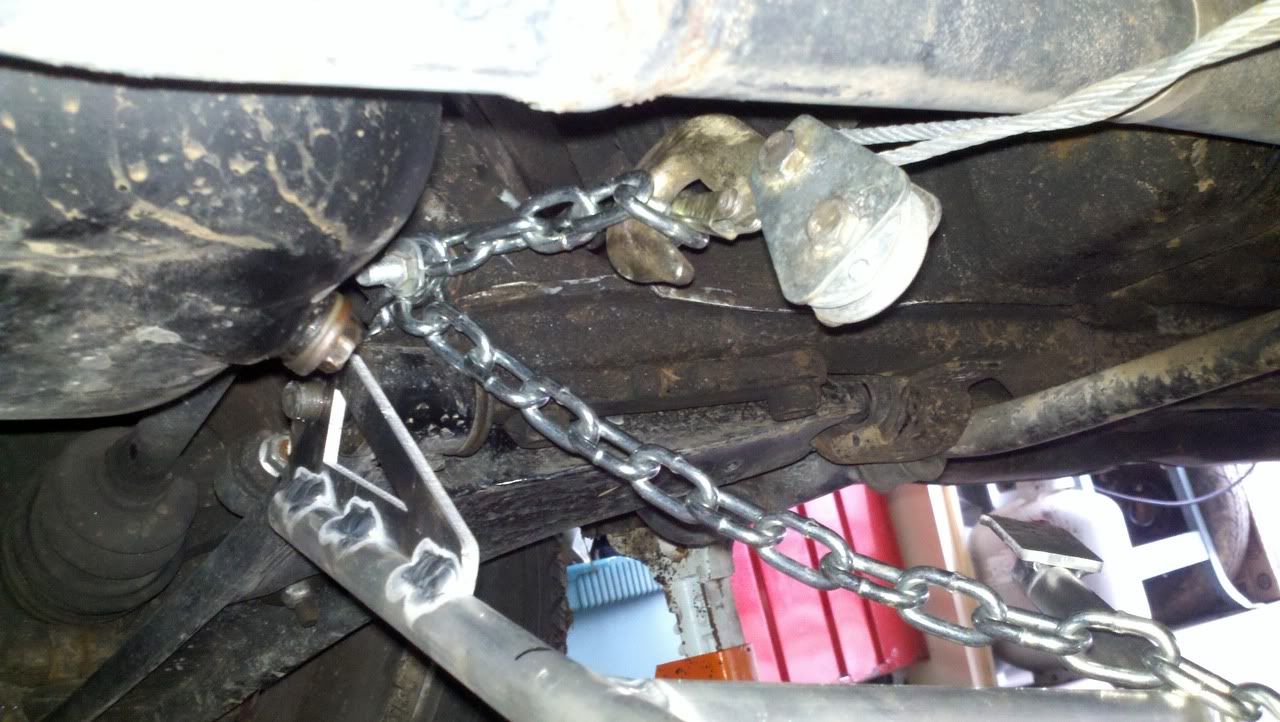

Posted Image


Looks like the cable, some how, was not wrapped around the pulley. :smackface That would make the cable break quite easily. :die

Also pulling from the top of the horn, rather than the bottom of the control arm, provides less mechanical advantage. :banghead


Posted Image

My Wife's 93 adjusted with minimal effort when hooked like the Turbine Tech illustration. ^o)

Give it another shot, with a new come along, hooking at the bottom. :gamerz You'll get it. :thumb
Allright, thanks, I'll give it another go :)

This kind of stuff is not my usual mess . . .
Offline Profile Quote Post Goto Top

Coche Blanco
Member Avatar
Troll Certified

Tofuball
Feb 6 2012, 07:53 AM
Posted Image
I would say you should wrap it around the pulley, and hook it to the bottom side of the frame horns. Should be real easy with that 2:1 advantage you get with a pulley.




EDIT: Snowfish beat me to it.
Edited by Coche Blanco, Feb 6 2012, 09:26 AM.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

My own stupidity aside, I've been so busy at work that I have nothing left for working on my projects.

I can't even run calls that aren't classified as an emergency right now.

No progress has been made. Sorry guys!
Offline Profile Quote Post Goto Top

t3ragtop
Member Avatar
Turbo3 and Twincam Tweaker

tofu, that project will be there when you feel up to working on it.

once you start feeling better you'll get that inertia back and get moving again.

take it easy, buddy.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Tried driving all-out for a tank. Pedal to the floor if it would get me there faster.

All city, no highway.

38.7mpg
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Did you know the oilpan fits right into a milk crate?

That is my new work surface as I finish up this engine.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Started back up working on this thing, finally got the place clean enough to do the work. Prepped the XFi to have the perfectly good engine removed to be harvested for parts for the new engine.

Put the pickup tube, oil pan, and crank position sensor on. Then did this:

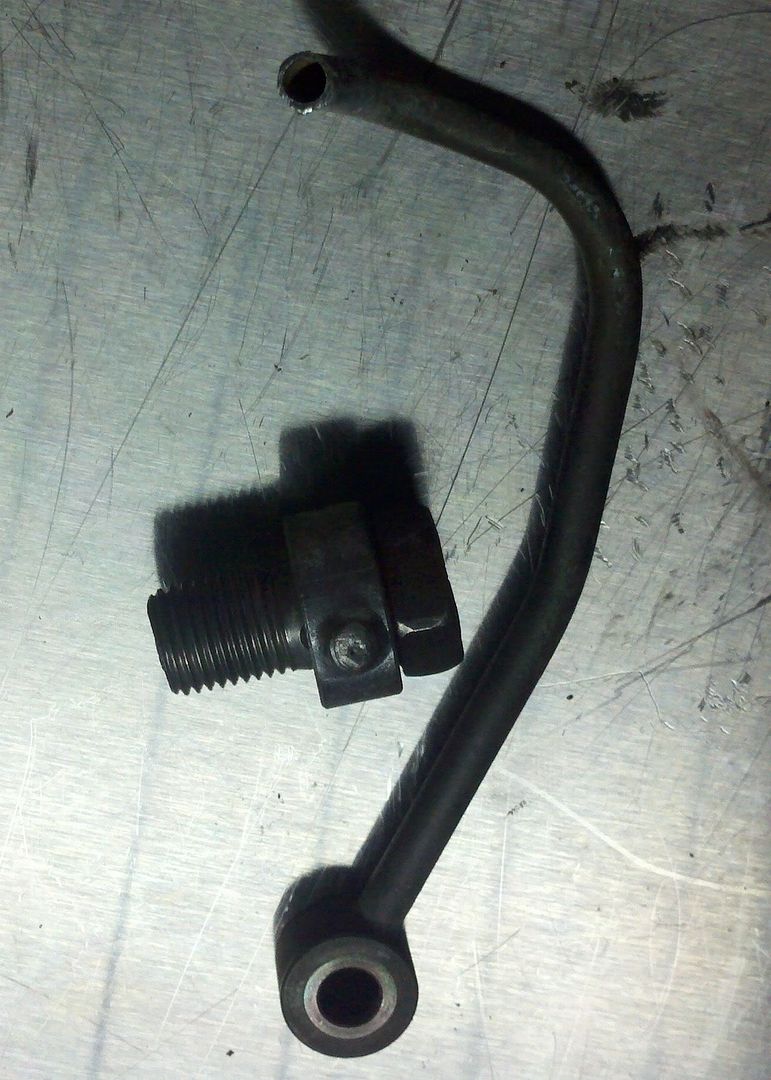

Posted Image

That's the cold start injector supply tube. I cut it from the fuel rail and welded the hole (new design does not need a cold start injector). I'm going to use the remaining pipe\injector for water injection experiments.

It's not much of an update, but posting helps keep me encouraged to work on this thing.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

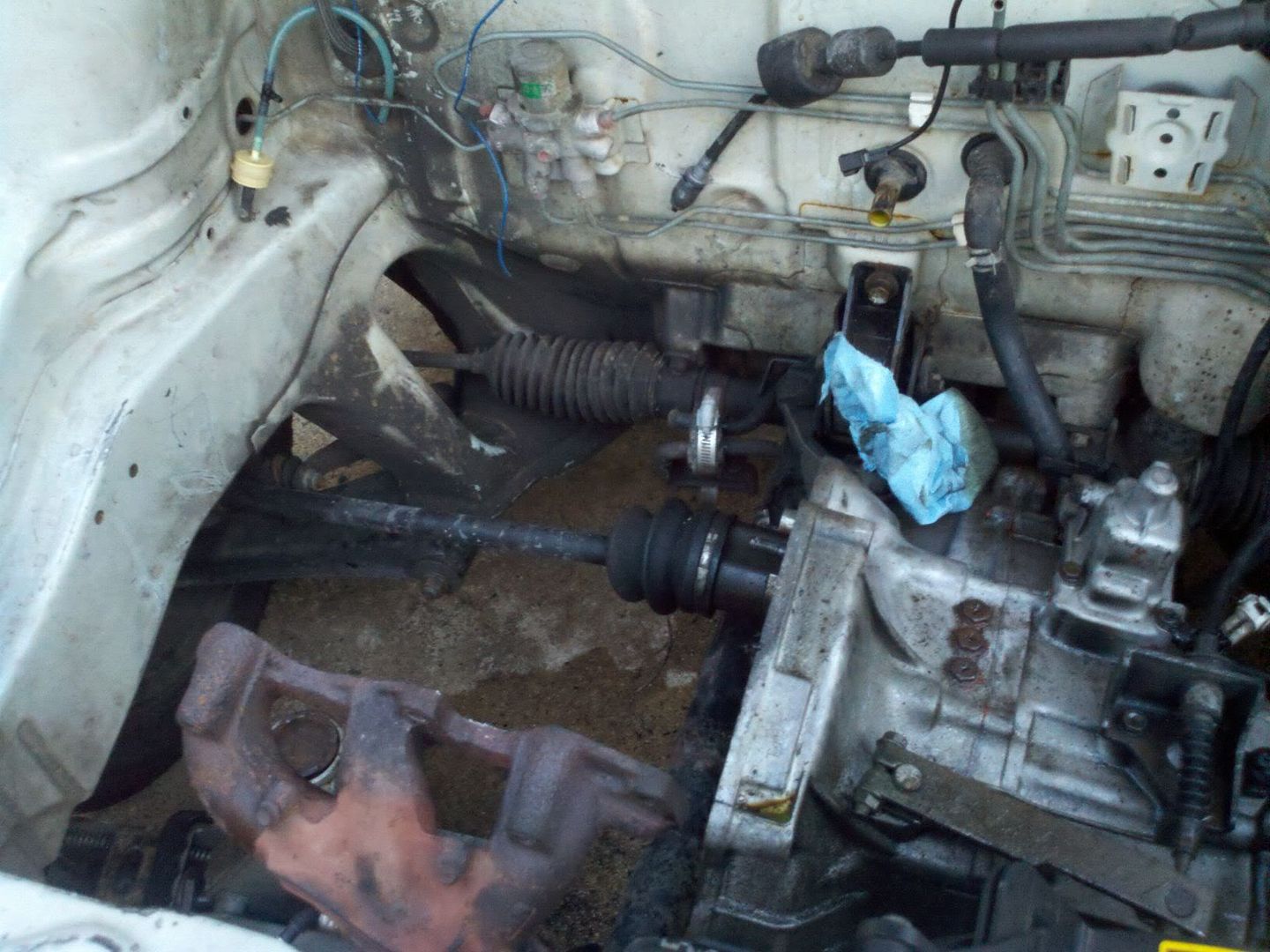

Removed the engine from my XFi.

Posted Image

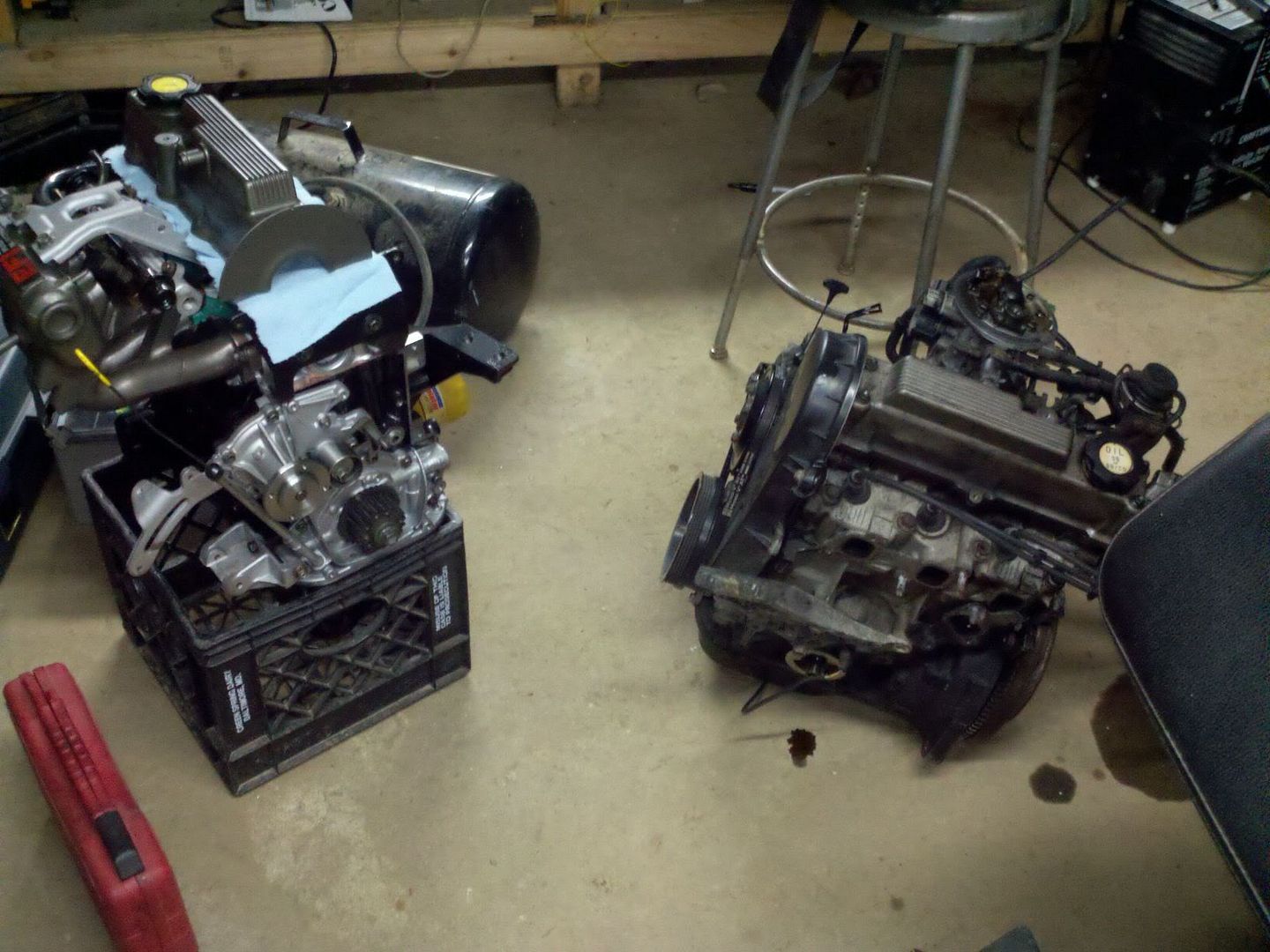

New engine (in milk crate) next to old engine:

Posted Image
Offline Profile Quote Post Goto Top

t3ragtop
Member Avatar
Turbo3 and Twincam Tweaker

it looks like someone is feeling better. :D
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Much, thanks :D

I'll be feeling much better once this thing is running!
Offline Profile Quote Post Goto Top

Turbo Dan-O
Member Avatar
Obsessive Car Detailer

:rocker Keep up the great work Tofu!!!
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

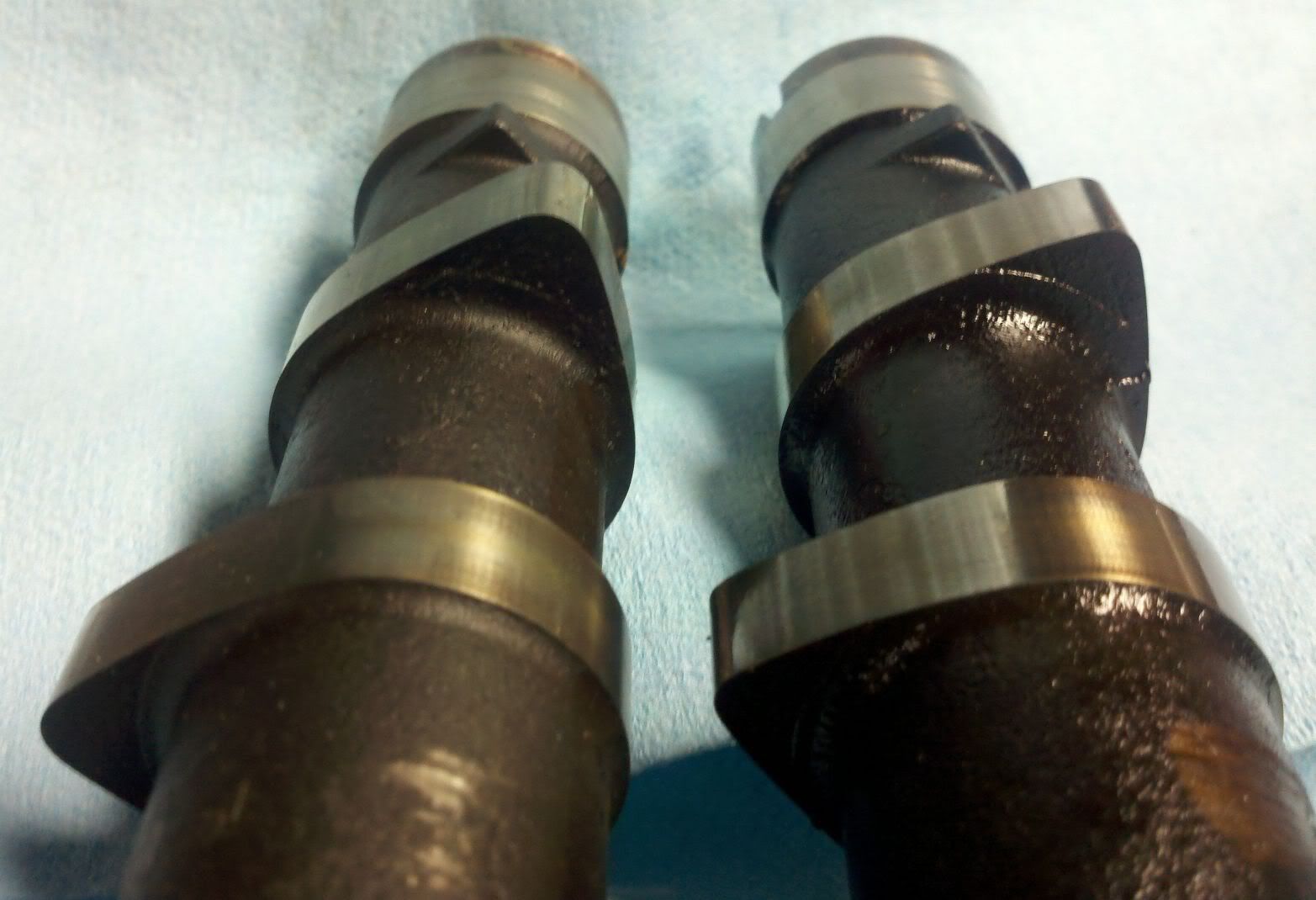

Harvested the XFi cam, here it is next to a normal cam, you can see the difference (the XFi is the "pointy" one)

Posted Image

The XFi cam is also "hollow" and weighs noticeably less. That could just be an earlier generation cam thing.

Posted Image

I found that the cam sprocket I had bought was not the correct one, it is a thin one just like my '94. So my project is again on hold until I can find a "thick" sprocket. Anyone have a spare they'd sell me?
Edited by Tofuball, Mar 23 2012, 09:42 PM.
Offline Profile Quote Post Goto Top

starscream5000
Member Avatar
Got 70 MPG?

Thick, like a 5 spoke sprocket rather than a stamped one?
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

I think it is also five spoke but thicker then the earlier stamped ones. I'll post pictures of the two next to each-other when I get it in the mail, Geo Glenn just sold me one.
Offline Profile Quote Post Goto Top

starscream5000
Member Avatar
Got 70 MPG?

Are you talking about the ones from the 1996 and up cars?
Offline Profile Quote Post Goto Top
