Tofuball's '94 XFi; It's all about city MPG
Topic Started: Mar 12 2011, 08:59 AM (39,411 Views)
clarkdw


Good luck with the toyota.

That is cool. Use the MS to minimize the ethanol losses.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

The head gasket sealer on the Camry reduced the leak, but did not plug it.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

I rewired the plug last night for the MS3x. MS2x would normally be fine BUT I CAN'T FIND MY MS2x UNIT and I have this MS3x...

When I'm done and this is running, I still want to write up a tutorial for how to make a cheap ($220+Injectors\rail) MS2x sequential system adapter and share some maps so other people here can reap the benefits (if I can show any). You don't have to do all the other crazy stuff I'm doing, the core and heart of my project is the MS running sequential.

I also want to thank the people on this forum who have been extremely helpful in helping me figure out some aspects of this project, PMing me with info, and selling me parts.

After looking at MAAS's work, I've decided to use his header rather then mine, and not use a factory manifold as my exhaust manifold is junk and I'd rather not pay for another when a header not only weighs less, but will provide better EGT Thermocouple location with more consistent readings, and O2 sensor location (The current O2 sensor location is TERRIBLE for a WBO2). I plan to modify them a bit to insulate them except on the top where I shall have a vacuum actuated ram-air style hot-air intake that I can switch to under low load (Highway cruising).
Offline Profile Quote Post Goto Top

bogs
Member Avatar
Duct tape heals all wounds

That is extremely nice Tofu :)
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Parts came! The BMW coils are "Dumb" coils, they don't know how to handle their own dwell, they don't have internal ignition modules.

So, tear the modules directly out of the BMW ECU that they live in!

Posted Image

I'm going to put them in an external enclosure because they're electrically NOISY.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

Replaced the bearings on the passenger side front.

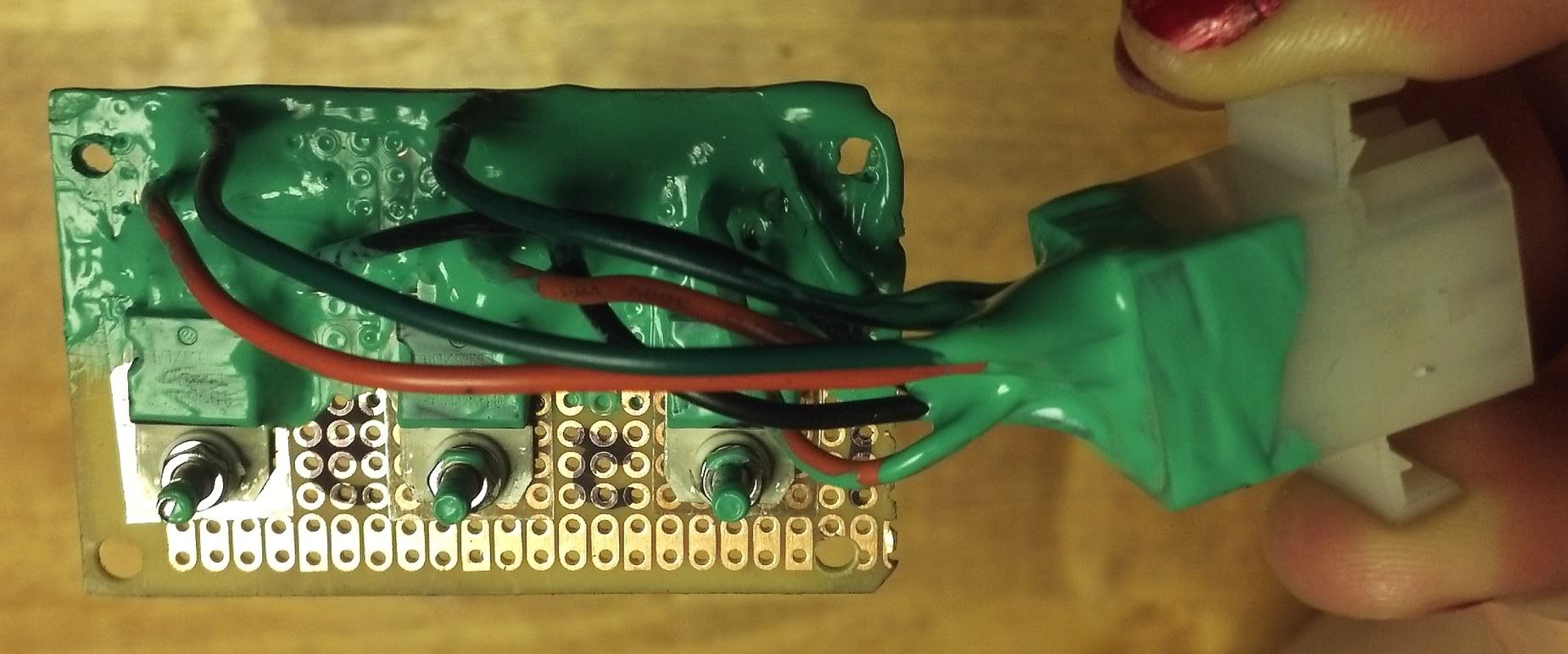

Spark control assembled.

Posted Image

It'll get an exterior heat sink and then be enclosed in that black box pictured above.
Edited by Tofuball, May 9 2012, 07:03 PM.
Offline Profile Quote Post Goto Top

starscream5000
Member Avatar
Got 70 MPG?

What's the green stuff?
Offline Profile Quote Post Goto Top

t3ragtop
Member Avatar
Turbo3 and Twincam Tweaker

tofu,

nice job on the drivers. you know that dwell and all the other spark control is written into the megasquirt code.

make sure that you have the ignition table set up correctly before you plug the coils into the drivers. the wrong selection of invert/ rising-falling will smoke the coils in a new york second.
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

starscream5000
May 9 2012, 08:36 PM
What's the green stuff?


OH CRAP! I got green goop all over it! That stuff will take forever to clean.

It's liquid electrical tape - since this thing is going in the engine compartment, I don't want it shorting out via wayward raindrop.


t3ragtop
May 9 2012, 09:05 PM
tofu,

nice job on the drivers. you know that dwell and all the other spark control is written into the megasquirt code.

make sure that you have the ignition table set up correctly before you plug the coils into the drivers. the wrong selection of invert/ rising-falling will smoke the coils in a new york second.


Good advice, these are the directions I followed: http://www.diyautotune.com/tech_articles/using_bosch_bip373s_with_megasquirt.htm
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

The connector is officially lost in the mail
I ordered another one.

I also bought a new daily driver:

Posted Image
Offline Profile Quote Post Goto Top

944door
Member Avatar


You got a beamer????? COOOOOOLLLLL
Offline Profile Quote Post Goto Top

starscream5000
Member Avatar
Got 70 MPG?

Looks to have grass growing up around it. What's wrong with it?
Offline Profile Quote Post Goto Top

Tofuball
Member Avatar
Strange Mechanic

I found it under that tree. It had been sitting a while.
Fixed a few things and it went right through inspection.
Edited by Tofuball, May 23 2012, 09:39 AM.
Offline Profile Quote Post Goto Top

bogs
Member Avatar
Duct tape heals all wounds

Tofuball
May 23 2012, 09:38 AM
I found it under that tree. It had been sitting a while.
Fixed a few things and it went right through inspection.
Wow, wonder what I'll find if I mow the lawn this weekend :hmm

Congrats, looks nice :thumb

Offline Profile Quote Post Goto Top

Patrick Oberfranc
New Member
[ *  * ]
Tofuball,

Another nice layout. I found that using fresh butter daily improves fuel economy as well. Also try dumping 5 gallons of 90 weight on her helps with keeping that rust away. Keep posting, I will keep learning. :news
Offline Profile Quote Post Goto Top
