Burnt Exhaust Valve(s); Rings bad as well?
Topic Started: Apr 22 2011, 10:23 AM (6,902 Views)
rmorman
Member Avatar
Dangerously un-informed
[ *  *  * ]
Currently Sitting in the truck at machine shop waiting for wrist pins to get pressed. Surfing forum for oil pump install thread on my phone. Not really easy.
Can somebody show me a link on how to do this?

Also, I assume not removing engine means not replacing rear main seal?

That oil check valve under the head does not come out if you leave the block in does it?

Does the coolant in the jackets around the cyl walls need to be drained? Is that plug under the block how you do it? Tried to loosen it last night, too tight!

Lots of pictures to come!
Offline Profile Quote Post Goto Top

mcmancuso
Member Avatar


Just pull the lower radiator hose to drain the coolant. The oil pump is easy to do, just half a dozen small bolts on the front, and it pulls off over the crank.
Offline Profile Quote Post Goto Top

rmorman
Member Avatar
Dangerously un-informed
[ *  *  * ]
I drained the radiator. I assume then that removing the lower radiator hose will empty the jackets that circle the Cyl walls?

I'm not pulling the crank beings the motor is still in the car. Does that mean that the thrust washers do not get changed?
Offline Profile Quote Post Goto Top

work car
Member Avatar
obsessed!!

anyone know where to get the 3" ball hone cheaper than 53.99 at advance????
Offline Profile Quote Post Goto Top

mcmancuso
Member Avatar


I got mine on amazon(I think) for $23
I believe you can slide the thrust washer around and out if you take off the corresponding bearing cap.
I'm not 100% on getting all the coolant out of the water jackets, last time I needed to do that on a car it wasn't the metro, and I used a bunch of paper towels.
Edited by mcmancuso, May 9 2011, 11:31 PM.
Offline Profile Quote Post Goto Top

rmorman
Member Avatar
Dangerously un-informed
[ *  *  * ]
ITS ALIVE! ITS ALIVE!
Seems all is well. Been idling for 30-45 min to get timing/coolant/idle right. My electric fan is coming on and cycling like normal, but my temp gauge is dead. If I pull the plug at the sending unit, the fan also comes on. Does this mean the sending unit is good? As a note, the temp gauge was dead prior to this operation. How do I go about deciding if it is sending unit/wiring/gauge?

Thanks...
Hope to get pictures uploaded today. I took lots!
Offline Profile Quote Post Goto Top

rmorman
Member Avatar
Dangerously un-informed
[ *  *  * ]
Nevermind on the Temp sensor..... As usual, the problem lies between the steering wheel and the seat. I found this: http://geometroforum.com/topic/3791421/1/#new And now I'm goo to go. Loose wire.
Offline Profile Quote Post Goto Top

mcmancuso
Member Avatar


The sending unit for the fan is different than the sending unit for the gauge, the gauge uses a 1 wire sender, I'm not sure where it is on the '95, on my '92 its right beside the 2 wire fan switch, but yours may be on the passenger side of the intake.
Offline Profile Quote Post Goto Top

mcmancuso
Member Avatar


:thumb good work
Edited by mcmancuso, May 10 2011, 12:55 PM.
Offline Profile Quote Post Goto Top

rmorman
Member Avatar
Dangerously un-informed
[ *  *  * ]
Guys, I can't believe I waited this long to do this..... That car must have been pretty sick when I bought it 2 yrs ago. I have lots more power and hopefully will stop burning a quart of oil every 140 miles. I can only imagine my milage going up a lot. The only thinh I didn't get was the +6 sproket. Maybe later. I'll do a followup compression test in a week or so. However, it sure feels good! ^o)

I'd like to thank mcmancuso, 90metro, bogs, Coche Blanco, dayle1960, snowfish, bennie442, work car, partsdinosaur, Advance auto and O'reilly's for all the help! As promised, here are the pictures. I don't think I'll be adding anything new, but maybe somebody will see something that will help them.

Here are a smattering of the posts that were very helpful in my rebuild:

http://geometroforum.com/topic/638797/1/ (Rebuild Head)

http://geometroforum.com/topic/1299263/1/ (Rebuild Head, detailed)

http://geometroforum.com/topic/3937058/1/ (Rebuilding Lifters)

http://geometroforum.com/topic/2232748/1/?x=0#post166330 (Timing Belt Replacement)

http://geometroforum.com/topic/2539369/1/ (pulling the engine)

http://geometroforum.com/topic/2335235/1/ (bottom End Rebuild)

Started this project on Saturday at noon and was finished bt Tuesday at noon. I hind sight, I might have removed the motor if I were to do this again. However, if you don't have a cherry picker AND your main bearings are good, you should be fine.

Posted Image

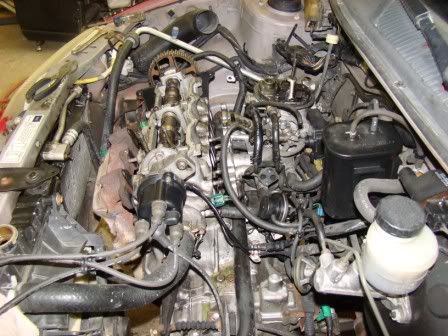

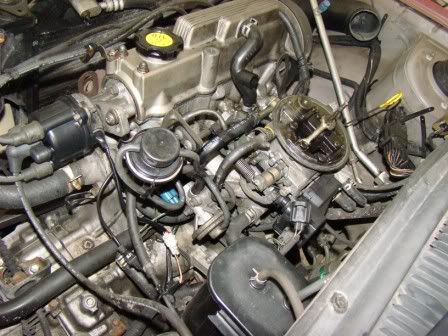

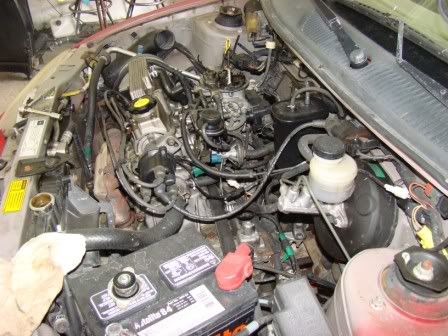

Started with a couple reference photos in case I forgot where stuff went. Turned out to be REALLY helpful!

Posted Image

Posted Image

Posted Image

Posted Image

Got he valve cover off and the timing belt/pullies have been removed
Posted Image

Those intake bolts are a bit of a bugger. Had to do a bit more disassembly than what I figured
Posted Image

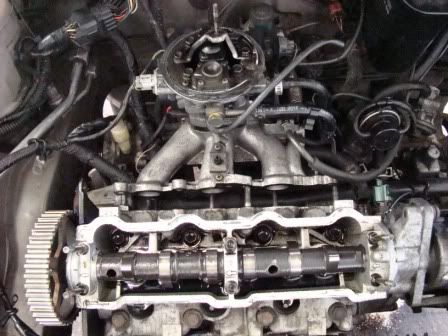

The intake pulls back just far enough to remove the head.
Posted Image

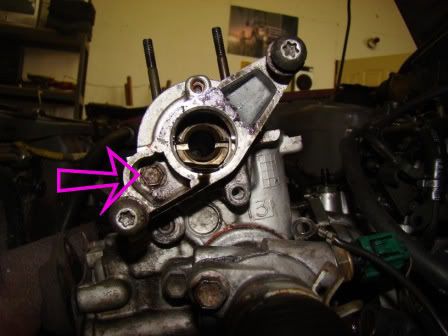

As a note, luckily I read somewhere about this 3rd bolt on the distributor housing. Be sure you remove it or you will break it trying to remove the housing!
Posted Image

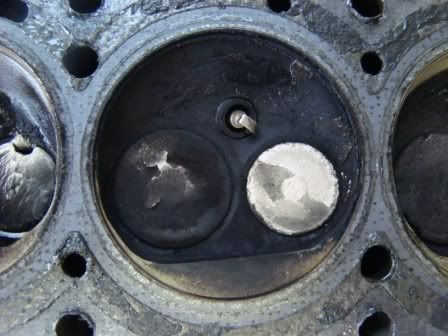

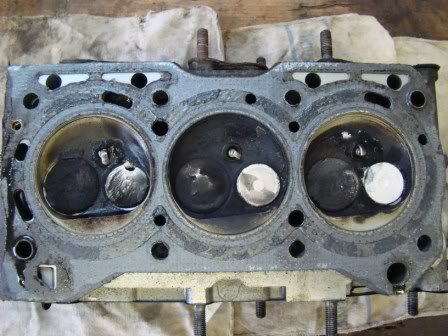

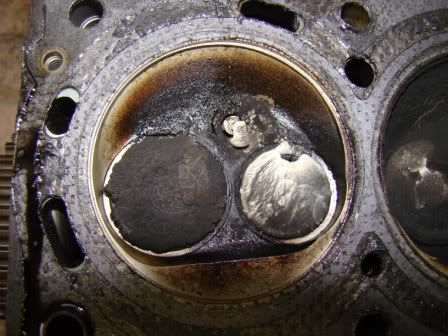

Here is what greeted me when I popped the head off!
How was this thing even running? :dunno
Posted Image

Cyl 1:
Posted Image

Cyl 2 was easily the best one of the three:
Posted Image

Cyl 3:
Posted Image

Here is a look at the pistons:
Posted Image

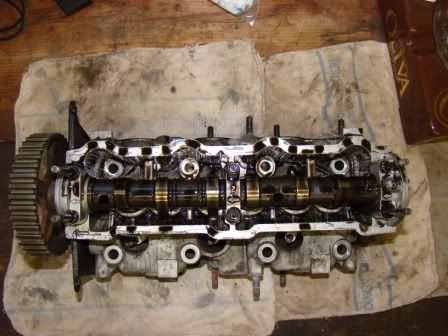

Getting ready to dissassemble the head:
Posted Image

I decided to rebuild the lifters as well. I remember reading something about "should be some spring" in them. Mine had NONE. This took a while, but was MORE than worth it. Just used parts cleaner, scotch bright and a Q-Tip:
Posted Image

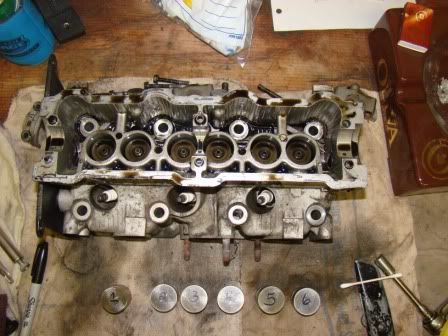

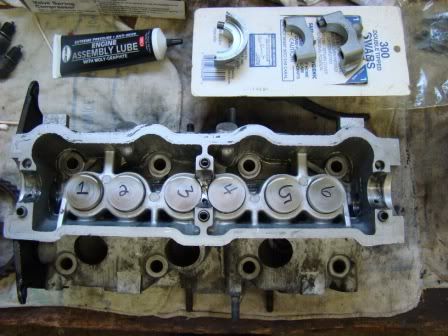

I labeled the lifters as I took them out. Also, I used labeled sandwich bags to keep each set of springs, keepers and lifters together):
Posted Image

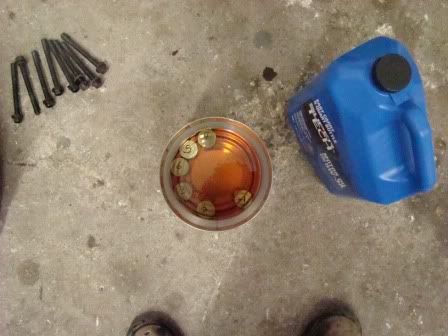

After the rebuild, I let them soak in oil for about 15-20 hours:
Posted Image

Picture of the valves from Cyl 1: :holycrap
Posted Image

Cyl 2:
Posted Image

Cyl 3:
Posted Image

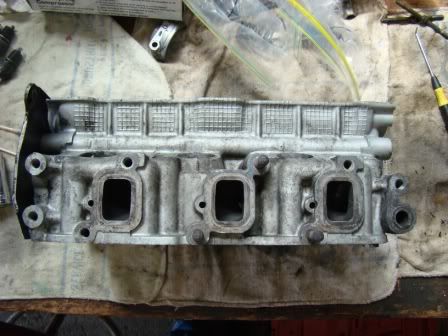

Ready to start cleaning this thing up!
Posted Image

Posted Image

To pull the old valve seals out, I used some good long needle nose pliers. Tried a hook tool, but this was much quicker:
Posted Image

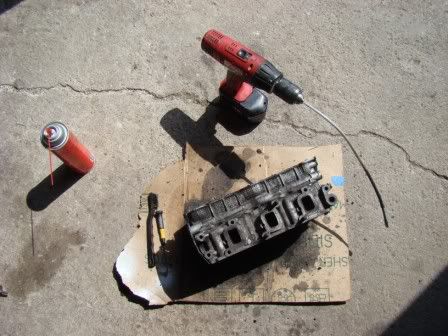

Although my EGR port was not all that dirty, I decided to get the old cable port cleaning tool out and give it a scrub. I also used it on the exhaust ports a bit:
Posted Image

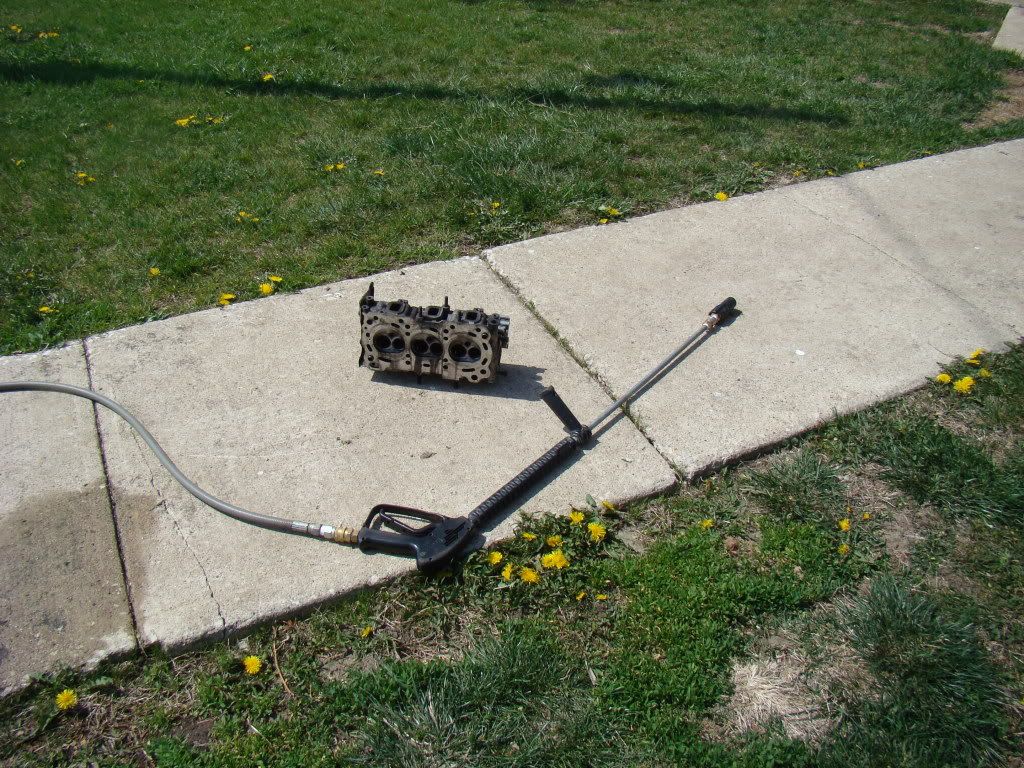

Time to wash off the gunk. I don't have a parts cleaner, but I do have a 278 deg Hotsy!
Posted Image

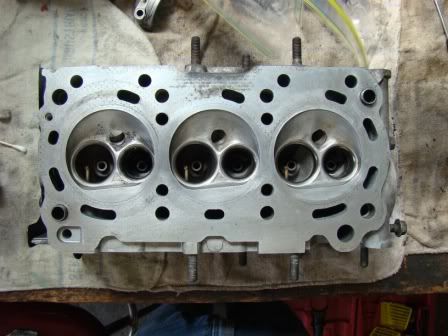

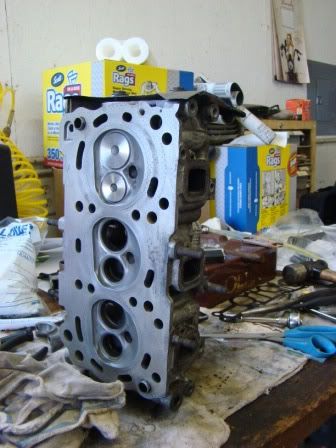

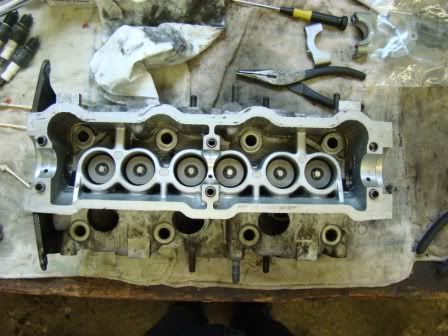

Much cleaner now:
Posted Image

Posted Image

Posted Image

Posted Image

Time to lap the valves. I did 5 min/valve. I just set the timer on my Droid I had never done this before. Was a bit nervous:
Posted Image

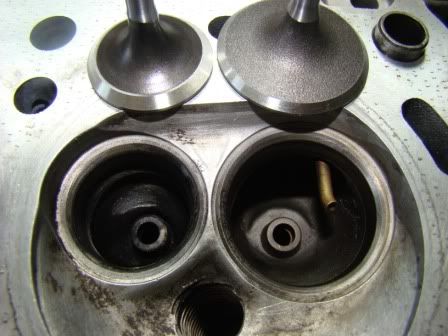

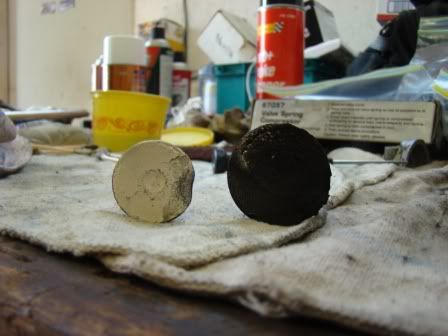

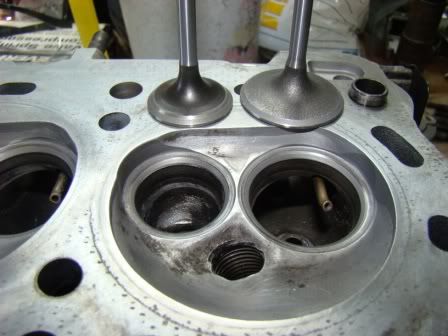

Before lapping:
Posted Image

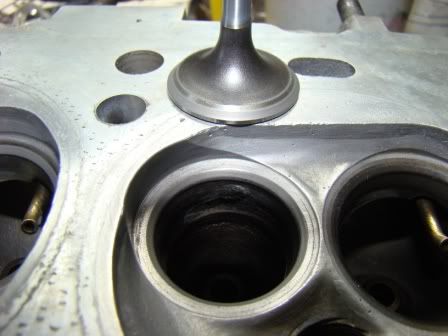

After Lapping (notice the shiny bits!):
Posted Image

Posted Image

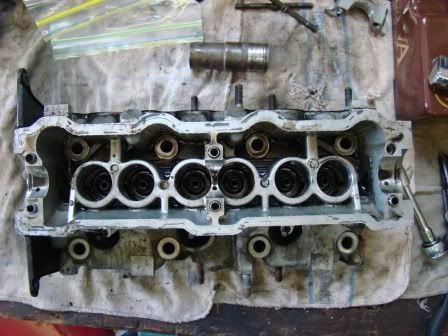

Starting to reassemble:
Don't forget to put the pieces back under BEFORE you install the new valve seals..... I speak from experience! :smackface
Posted Image

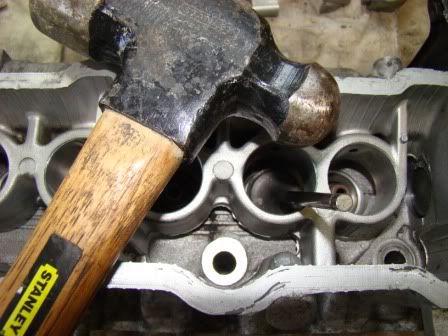

Installing the valve seals. I couldn't pust down hard enough with my thumb to seat them. Thought I'd use a hammer and one of the old valves.... Bad idea. Even a light tap squished the little dounut spring just a bit. Did that on 2 seals befor I noticed.
Posted Image

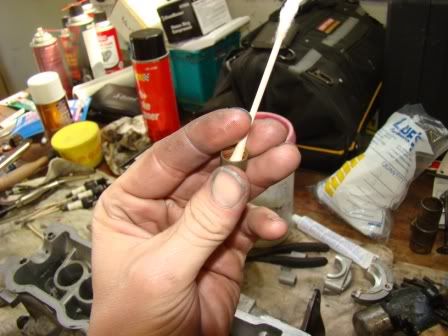

Ended up using a Q-tip to put a dab of oil on the inside of them. Then they seemed to slide on better:
Posted Image

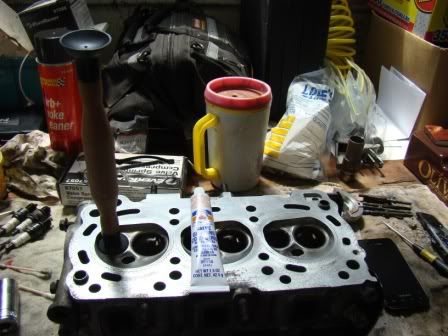

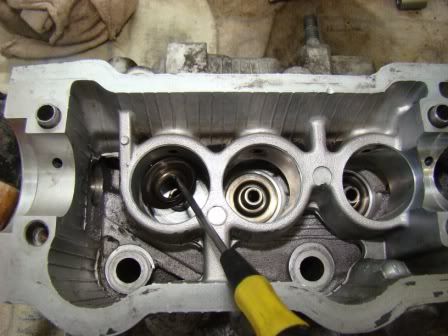

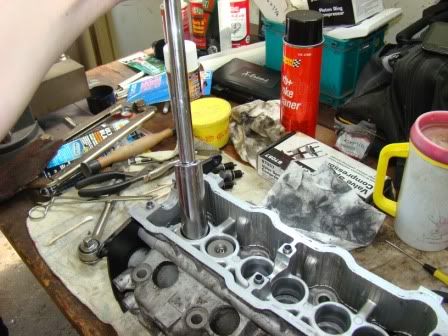

Putting in the valve keepers. I got a valve spring compressor from O'reilly's "loaner tool" program, but couldn't make it work in the metro head. To remove the keepers, I used a deep well socket and a hammer. To get them back on I used a long 1/2 drive ratchet extension and a deep well socket. Worked very vell. I just put a rag under the head so the valves couldn't move, set the keepers in and pressed down on the extension. With a bit of shaking they all went in.
Posted Image

First set of valves in:
Posted Image

All the keepers and valves in:
Posted Image

Posted Image

Lifters in. After initial fire, these things made a racket for a bit before they setled in. I soaked them overnight, but maybe that was not enough? :dunno
Posted Image

Starting on the bottom end:

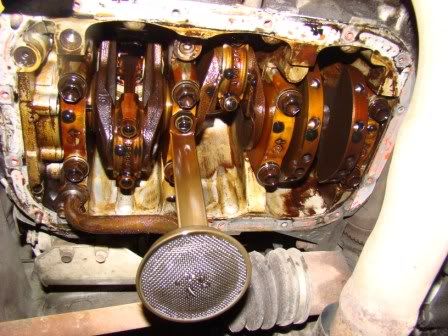

Looks like a bit of debris on the oil pickup tube screen. However, there were no parts in the oil pan:
Posted Image

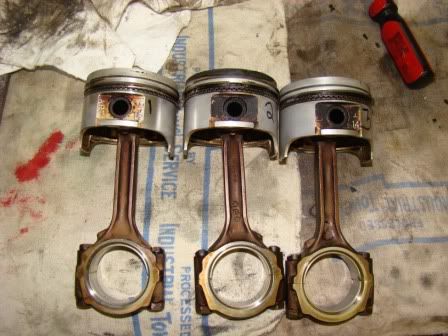

Here are the old pistons. I labeled EVERY part and put them back together exactly as they came apart. The bearings looked ok, but I had new ones so I put them in anyway.
Posted Image

More to Come.....
Edited by rmorman, May 11 2011, 05:05 PM.
Offline Profile Quote Post Goto Top

rmorman
Member Avatar
Dangerously un-informed
[ *  *  * ]
Here is the rest:

In 45 min, the machine shop had the new pistons installed:
Posted Image

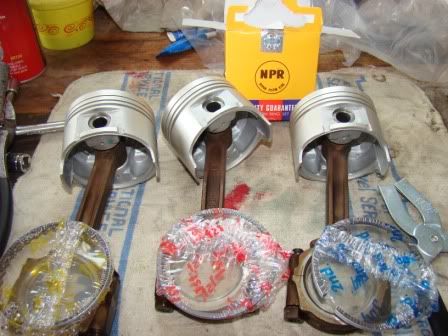

New rings installed. Was very easy to do with the diagram in the forum. Bought a ring installer from Advance Auto for around $5.00
Posted Image

Part of the reason I think I'd rather pull the motor next time was putting in the new water pump and oil pump. Had to remove many brackets including the A/C bracket seen here:
Posted Image

New oil pump and water pump installed. By the way, I used the copper gasket spray mcmancuso recommended and have no leaks as of yet.........
Posted Image

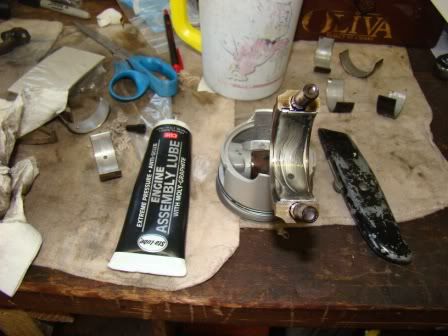

Engine assembley lube on ALL metal to metal and motor oil on all metal to rubber connections:
Posted Image

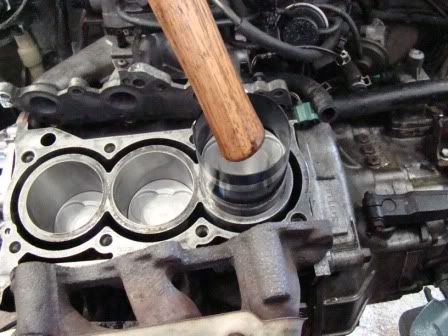

Installing pistons. Using a "loaner tool" from O'reilly's. Very eay to do. Pistons and connecting rod caps are labeled as to how they go in. Just be sure you have the oil ports matched up on the bearings.
Posted Image

My rebuild kit came with a head gasket, but upon recommendation I bought a Felpro one from Advance Auto. However, I carefully looked at the oil ports mentioned in this forum and could not tell a difference so I took the Felpro one back. I had earlier been worried about the antifreeze in the jackets surrounding the cly walls, however, when I removed the water pump, it drained out.
Posted Image

Head back on:
Posted Image

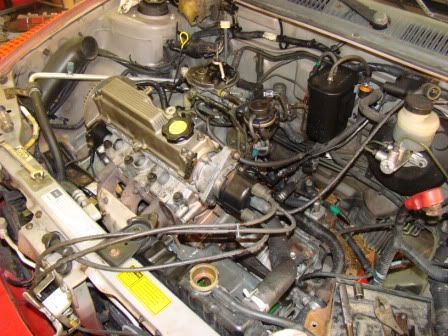

Looking like an engine again:
Posted Image

I always wondered why this timing belt cover hole didn't have a bold. Now I know. Mine would have rubbed on the belt:
Posted Image

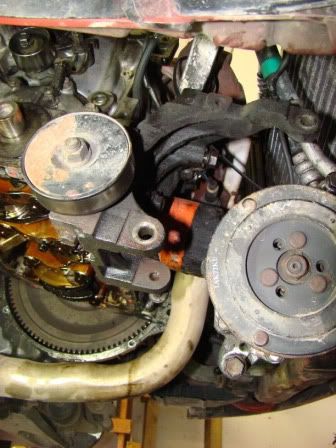

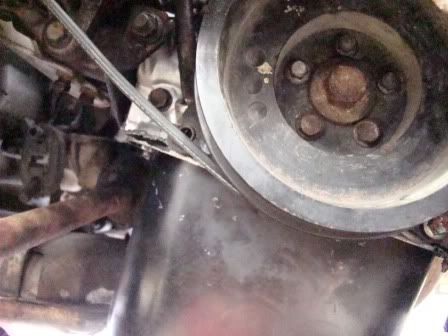

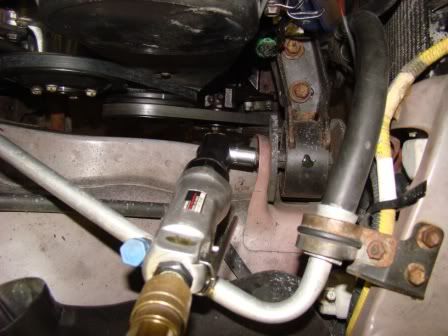

If you took out the motor mount bolt to gel at the crank pully, DON'T FORGET TO PUT IT BACK IN:
Posted Image

Up and running:
Smoked a bit when it fired up. Lifters made some noise as well. However, I let it run for 45 minutes adding antifreeze as I went. I used this time to set timing to 10 deg and idle at about 850RPM. I realize after burning my hand on the valve cover several times, I REALLY prefer setting the idle on my 350 Chevy much more.
Posted Image

All Done!
Posted Image

Thanks again for all your help!
Offline Profile Quote Post Goto Top

rmorman
Member Avatar
Dangerously un-informed
[ *  *  * ]
One question.... Idle is really smooth without the connector hooked up to the back of the air cleaner. With it connected, the idle varies up and down just a bit. Is there a bad sensor or something here????

Offline Profile Quote Post Goto Top

dayle1960
Member Avatar
Fastest Hampster EVER

rmorman, that was one of the best pictorials I have ever witnessed on GMF, especially the valve lapping, and pics of the burned valves. This should help newbies when they are sitting around and scratching their heads wondering how to lap a valve. Thanks for the pics.
Offline Profile Quote Post Goto Top

bogs
Member Avatar
Duct tape heals all wounds

Very well done :thumb
Offline Profile Quote Post Goto Top

mcmancuso
Member Avatar


Sorry to hear about the felpro being bad :( the last 2 I got from them were right... felpro must be getting their gaskets from multiple factories, at least one of which is making the wrong ones :smackface
Offline Profile Quote Post Goto Top
