Manual Transmission shift fork bushings
Topic Started: Jan 21 2012, 11:37 AM (2,425 Views)
96Geoman


Posted Image

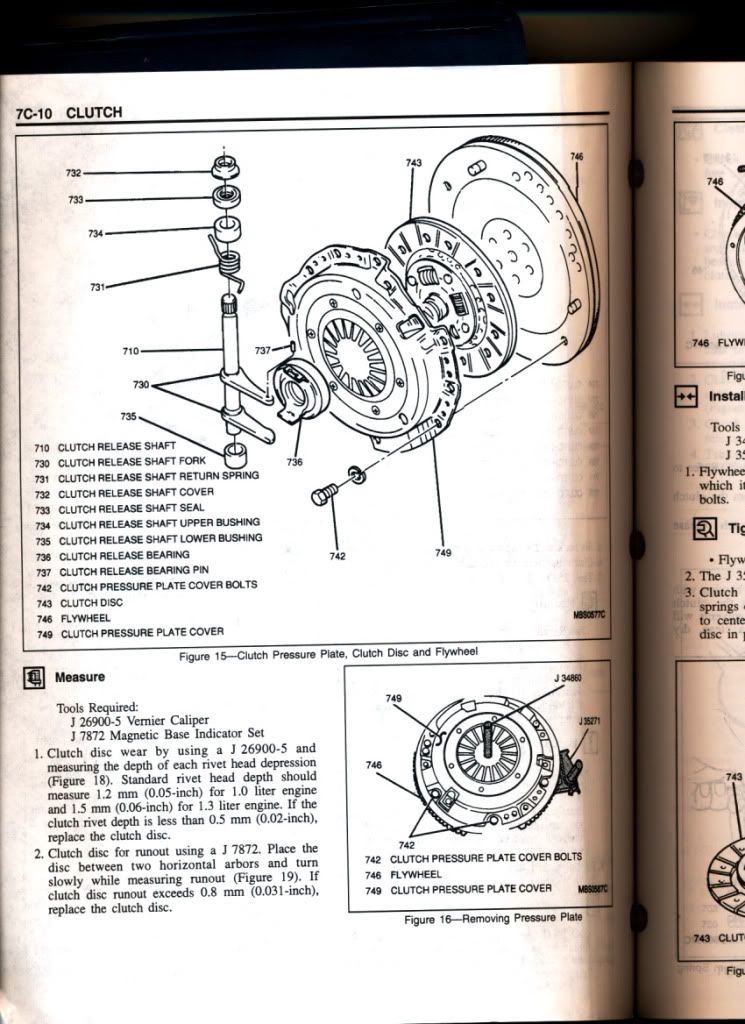

I called the local Chevy dealership asking about the availability of the manual transmission shifter fork upper and lower bushings and spring. He told me the lower bushing and spring were available from some NOS supplier and both parts were expensive. He told me the upper bushing is not available.

Does anyone know if the Suzuki Swift manual transmission for the 4 cylinder is the same as the Geo 3 cylinder transmission as far as the shifter fork parts are concerned? If so, I'll try to order the parts through Suzuki

Also, if anyone knows of a company that makes these replacement bushings, please let me know.

Note: I do have a friend that has a machine shop, so I suppose he could make them but I would need the exact dimensions of the bushings.

Thanks
Edited by 96Geoman, Jan 21 2012, 11:50 AM.
Offline Profile Quote Post Goto Top

Jittney
Anchorage 92 XFi

3 or 4 cyl doesn't affect the transmission setup.
In the parts diagrams, left side of Line 19 is the diagram.
Righthand side 'parts info' is another link
19. 1995-2000 M,Clutch & Control, MM5, M42, M58, Manual Transmissions - SU00087 parts info

The dimensions for the bushings are listed.
7**05993 BUSHING CLU YOKE SHF,(UPR),(16X20X20MM)
8**059938BUSHING CLU YOKE SHF,(16X24X19MM)
Edited by Jittney, Jan 21 2012, 02:05 PM.
Offline Profile Quote Post Goto Top

Murf 59
Member Avatar


They are important. Just so you know. That is the throw out arm. Or TO arm.
Offline Profile Quote Post Goto Top

96Geoman


Jittney
Jan 21 2012, 01:35 PM
3 or 4 cyl doesn't affect the transmission setup.
In the parts diagrams, left side of Line 19 is the diagram.
Righthand side 'parts info' is another link
19. 1995-2000 M,Clutch & Control, MM5, M42, M58, Manual Transmissions - SU00087 parts info

The dimensions for the bushings are listed.
7**05993 BUSHING CLU YOKE SHF,(UPR),(16X20X20MM)
8**059938BUSHING CLU YOKE SHF,(16X24X19MM)
Thanks Jittney,

I forgot to mention that I have a 93 engine / transaxle in my 96 Geo.

My machine shop friend told me about a site called McMaster-Carr

http://www.mcmaster.com/#

http://www.mcmaster.com/#standard-sleeve-bearings/=fwm1x6

There's a 16 x 20 x 20 which would fit for the top assuming the 96 transmission is the same as a 93 in regards to the shifter fork bushings.
Offline Profile Quote Post Goto Top

Jittney
Anchorage 92 XFi

Correct, as usual, Murf.
His post said "manual transmission shifter fork upper and lower bushings and spring", but the picture was for the TO.
I was posting the gearshift fork when I rechecked his picture. ;)
At any rate, here's the other information, in case you need it.
10. 1995-2000 M,Shift Controls/Manual Transmission,Gearshift Fork - SU04081 parts info

Just read you have the 93
25. 1989-1994 M,Shift Controls/Manual Transmission,Gearshift Fork - SU04033 parts info
Edited by Jittney, Jan 21 2012, 03:23 PM.
Offline Profile Quote Post Goto Top

Murf 59
Member Avatar


Back when I was doing installs. I found an easy way to remove the funky old bushings. I have not tried it on our units yet. I would use a piece of a filler tube for an old Chevy T350 auto. I cut a piece about 6 to 8" long. Then I would cut a slice right down the length of the tube about 3" long. This would allow it to flex. Then I would slide it over the end of the TO arm and tap out the bushing. I am not sure which of the thin walled tubing will fit over our TO arm and inside the bore where the bushing goes. But I am betting there is one.
Offline Profile Quote Post Goto Top

Woodie
Member Avatar


SouthWest Suzuki http://oemsuzukiparts.com/ claims to have them all, at least they let me put them in my shopping cart:

09300-16010 Upper bushing $4.36
09300-16009 Lower bushing $3.84
23269-60B00 Spring $3.44

Offline Profile Quote Post Goto Top

96Geoman


Woodie
Jan 22 2012, 06:07 AM
SouthWest Suzuki http://oemsuzukiparts.com/ claims to have them all, at least they let me put them in my shopping cart:

09300-16010 Upper bushing $4.36
09300-16009 Lower bushing $3.84
23269-60B00 Spring $3.44

Thanks Woodie!

The bushings are available from Suzuki.

The spring is on national back order by Suzuki. If you order the spring from Suzuki, it may or may not ever arrive, it's a gamble.

GM can purchase the spring from a vintage GM site that sells to dealers only.

GM part # 96060188 Spring for Clutch release shaft.

My cost including normal shipping is $22.00
Offline Profile Quote Post Goto Top

the-green-machine
New Member
[ *  * ]
sry for the uprooting of this page, but i just bought a Suzuki vitara '99 5speed and my shifter is gone to shit. i need to replace the bushings and boot, are these part#'s listed above for the same transmission? or not?
Offline Profile Quote Post Goto Top

Jordan


the-green-machine
Feb 12 2014, 02:09 AM
sry for the uprooting of this page, but i just bought a Suzuki vitara '99 5speed and my shifter is gone to shit. i need to replace the bushings and boot, are these part#'s listed above for the same transmission? or not?
No.

Those parts are for a front wheel drive trans. You've got a rear-drive transmission, plus the parts being discussed are for a release bearing arm. Your trans doesn't have those parts.

If the shifter is screwed, you're looking at a trans - the shifters on those transmissions insert directly into the trans and interface with the shift rods inside.
