Need help with camshaft position; G13BB 16 valve
Topic Started: Sep 10 2012, 10:42 AM (2,066 Views)
G.O. Joe
Member Avatar


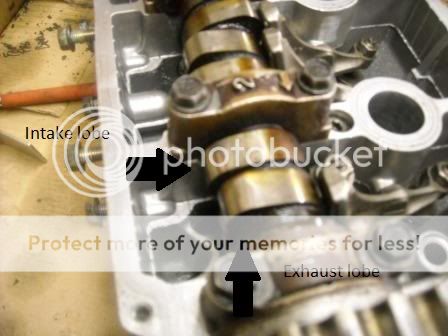

Background: I've already adjusted the valves with the head off of the engine. The car was not running when I got it. I adjusted them with what I thought would have been #1 cylinder at TDC compression stroke. Cam lobes were nowhere near the rockers:
Posted Image


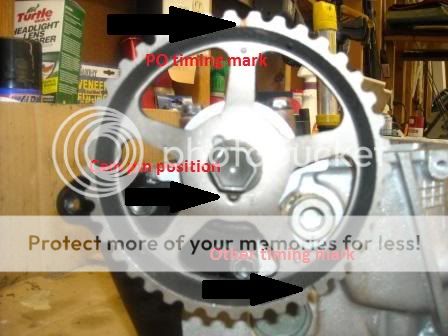

But doing that puts the cam gear in this position:
Posted Image

The PO had marked one of the cam marks with orange paint, and it looks right to me. When this mark is at the top, the pin on the camshaft is at the bottom:
Posted Image

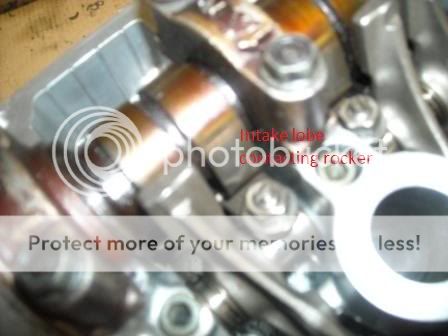

However, in that position, the cam lobes are touching rockers, making valve adjustment difficult. I actually cannot back off the intake rocker enough to fit a .005 gauge between:
Posted Image

Sooooo, help? I'm a bit confused. Is my valve adjustment still good? What is the proper way to install the cam gear?
Offline Profile Quote Post Goto Top

75monzatc
Member Avatar
just jeremy

Just curious, by the picture it looks like there are two dowl holes for the cam. If so, are you sure the cam is in the right one for your mark?
Offline Profile Quote Post Goto Top

75monzatc
Member Avatar
just jeremy

Here is a thread that might help.
http://geometroforum.com/topic/4293674/1/
Offline Profile Quote Post Goto Top

3tech
Member Avatar


It won't. Different application. Use the one marked E

Your valve lash has nothing to do with the orientation of the camshaft at TDC/#1. If you set it with the max lift of the lobe 180 degrees from the rocker, then it will be correct.
Offline Profile Quote Post Goto Top

G.O. Joe
Member Avatar


Awesome. That is exactly what I wanted to hear. :thumb

I thought I had done it right, but being my first time, I was second-guessing myself. It's nice to have confirmation.
Offline Profile Quote Post Goto Top

Good bye


3tech is the authority on cams etc.
Offline Profile Quote Post Goto Top

Woodie
Member Avatar


G13BB is supposed to be timed using #4 at TDC, not #1 as in 99% of engines. Maybe that is the problem. The timing mark is the one directly opposite the locating pin.

As far as adjusting the valves goes, as 3Tech said, it doesn't really matter, just as long as they are on the low spot.
Offline Profile Quote Post Goto Top

G.O. Joe
Member Avatar


Very good information. Thanks, woody.
