The Red Baron; Restoration of a 1993 Geo Metro XFi
Topic Started: Feb 8 2013, 05:45 PM (19,107 Views)
Hydrojim
Member Avatar


I've had 2 threads for this project, one was for the 3-wheeled conversion, but that one was scrapped, so I moved back to this one because it's less cluttered.

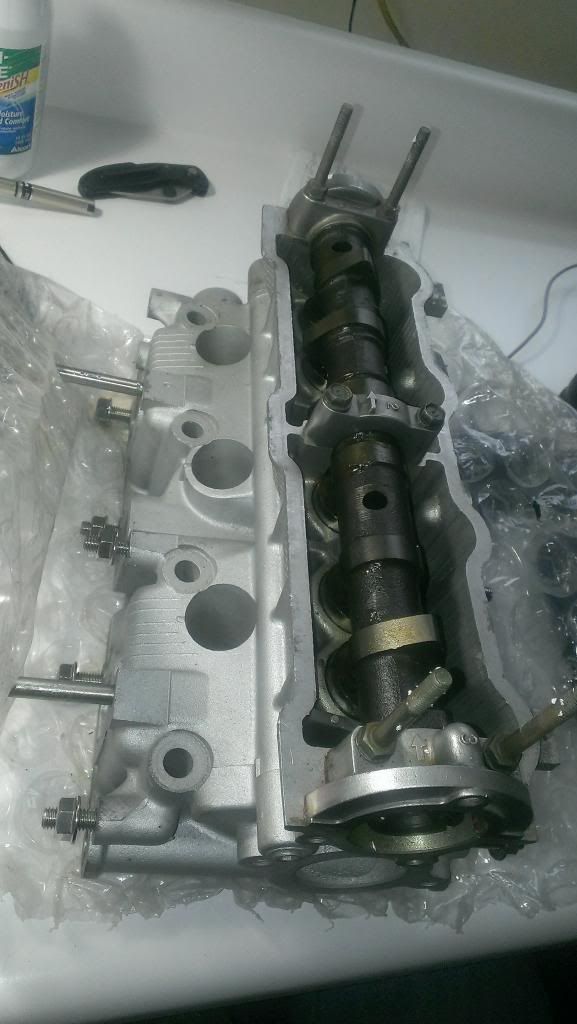

Here are all the parts I've gathered so far:

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image


Here is what else I need or am doing:
Bottom end rebuild (won't know what's needed until I get into it)
UD pulley: 4 bolt 3 rib
Instrument cluster with tach
neon center console
New transmission fluid
Paint
Hood
Windshield(later)
Lowering Springs(if in budget)
Frame Brace(if in budget)
Strut Tower Braces(if in budget)
Tires
Window Tinting(might wait til next year)
Battery
Underbody coating
Radiator
Rear Brakes, bearings, struts
Gas Tank
Fuel Pump

I'm sure there is more... but I just can't think of all of it at once.

a lot of this stuff won't be occurring all at once. My main concern will be to have a reliable daily driver so the extras will come later on when I have more cash. Either way, it's be exciting stuff.

The project is slated to begin shortly after July 18th. so only about 7 weeks left!






Online Profile Quote Post Goto Top

Awesome-X
Member Avatar


Holy crap man that is like a brand new car's worth of parts....
Offline Profile Quote Post Goto Top

Hogleg
Member Avatar
Midnight Toker

Can't wait! Doing something similar with my vert. Getting header done monday. Guess I should start my page soon.
Offline Profile Quote Post Goto Top

Coche Blanco
Member Avatar
Troll Certified

Hydrojim
Feb 28 2013, 06:30 PM
This is how I'm thinking I'll be painting the car. (ignore the poor photoshopping)
Posted Image

That's all I've accomplished so far. I've been busy with baseball and the science fair, but after that I'll be ordering up some stuff in preparation for the summer.
fixed that for you
Offline Profile Quote Post Goto Top

Johnny Mullet
Member Avatar
Fear the Mullet

Glad to see an update!
Offline Profile Quote Post Goto Top

Hydrojim
Member Avatar


I'm looking at flights and trying to confirm a good date for my friend to pick me up from the airport, but the cheapest flight lands on Saturday July 20th so that's my number one choice. If I end up with that flight, I'll start the project the Monday after.

I'm currently in the process of selling my 2000 Ford Focus ZX3 so that should free up some funds for some cool stuff which I'll talk about below.

I recently picked up an instrument cluster with a tachometer and I'm also in the process of buying an intermittent wiper switch. Those are 2 not really necessary items but they're nice to have.

I want the final product to look something like this:
Posted Image

The wheels I'm looking at buying are these. I think they should look pretty sharp.

Posted Image

Specs on the wheels and tires:
Spec: 14x6
Bolt Pattern : 4 x 114.3
Offset : +35
Tire Size: 185/60R14

If someone could let me know if these will have and fitment problems let me know.

I believe the stock convertible set-up was real close to this one so I expect it should work


Parts left to get:
Gas Tank
radiator
Piston Rings
Pistons
(other bottom end parts as is needed)
Gasket kit
Water Pump
BT900 head gasket
Hood
Paint
Lowering Springs
Window Tinting
under drive pulley
Rear Brakes, bearings, struts, and other stuff

I'm hoping to defer the cost of these items until a later date when I can get some more money saved up:
Wheels
Tires
Lower brace
Strut Tower Braces
Windshield

Planned Mods:
12mm stud upgrade
fog light installation
neon console
H4 headlight upgrade
new speakers and radio
random interior mods
coolant heater

Only about a month left until I get started!
Online Profile Quote Post Goto Top

Hogleg
Member Avatar
Midnight Toker

Those will fit no problem. The konig zero-in rims I'm getting look similar. I'm about a week away from starting mine. Waiting on rear control arms...
Offline Profile Quote Post Goto Top

Hydrojim
Member Avatar


I'll be landing in Nashville on Saturday where my dad will be there to pick me up. I'll either get started on the project Saturday night or Sunday morning.

Here is what has happened since I last posted:

I purchased t3ragtop's power unit and brake upgrade so I will no longer be rebuilding my engine.

I'll be using a 4.10 transmission instead of the 3.79 transmission because I want this car to be fun to drive and I'll still be getting great gas mileage either way.

I ordered 155/70R13 tires. I'll be mounting them to steel wheels for now. I don't have the money for alloys right now and the actual purpose of this car is to reliably get me to my local community college for my calculus classes

I ordered a new gas tank since mine was leaking. I got a new pump. So I won't have to worry about that crapping out on me for a long time.

I'll be painting the car daytona electric blue with single stage urethane paint.

I'm holding off on lowering springs for now because it's $200 I don't have.

That's where I'm at with the project. Baseball season ended today so when I get back from Tennessee I can find another job so I'll have money so spend on the metro!
Online Profile Quote Post Goto Top

Hogleg
Member Avatar
Midnight Toker

Bet you can't wait to get started. I started mine, but this heat and the rain last week made me take a break.
Offline Profile Quote Post Goto Top

t3ragtop
Member Avatar
Turbo3 and Twincam Tweaker

hydrojim, you'd better shake a leg and get busy on that. :D

hogleg, that's a lame excuse - it's hot out, jeez! i go through 4 or 5 tee shirts a day. when i feel like i'm going to pass out from the heat, i stumble into the house and take a cold shower. then i sit in air conditioning and drink ice water until my core temp comes down. i put on a dry shirt and go at it again. :drool

those cars don't fix themselves ya' know. :P
Offline Profile Quote Post Goto Top

Hogleg
Member Avatar
Midnight Toker

:lol You, have a lot more work than I to do before geopalooza my friend. I still have the rear struts to do, fuel filter, cs 130 alt with all new terminals and wires, power wash and wire brush the undercarriage, and por-15 it. Ill do the interior soundproofing, side skirts, and prep for paint after geopalooza. I can't do anything when it's wet out or I'm laying in mud, and had 7 kids in the house this week so I wasn't even home much cuz we go swimming a lot when it's hot. Also, I set easily achievable goals, so with over 3 weeks to go I'm still ahead of schedule! :P
Offline Profile Quote Post Goto Top

Hydrojim
Member Avatar


I landed in Nashville last night and my dad picked me up and I'm in Clarksville now. We got me set-up with groceries and cleaned up my bay in the garage. we even managed to remove the old fuel tank and replace it with a new fuel tank, fuel pump, and fuel filter. Before anyone says it, I did not relocate the fuel filter because I won't have to do it for many miles, the fuel filter I got was $4, and I'm lazy. I can always do it later.

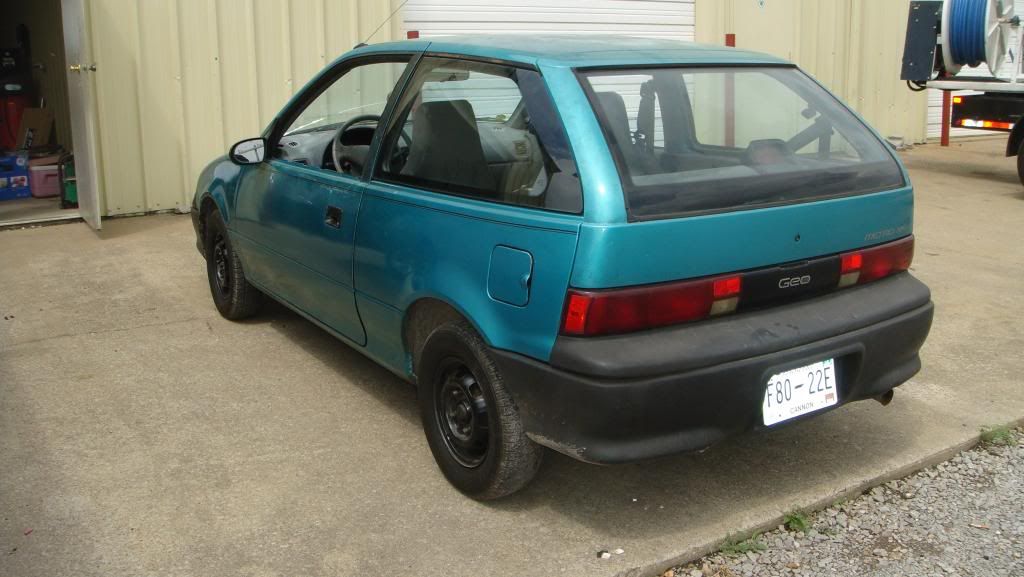

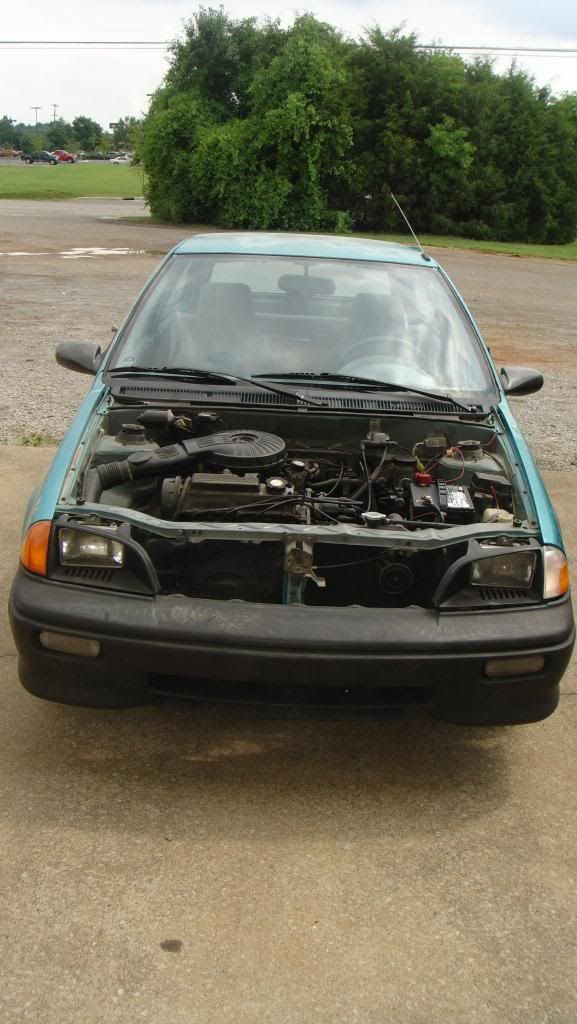

Here are some action shots!

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

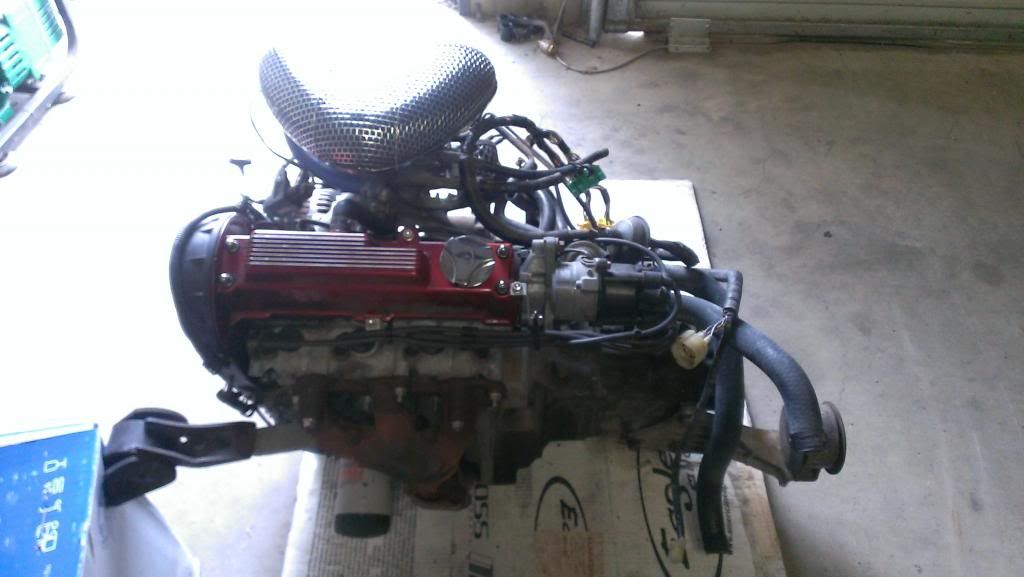

engine:
Posted Image

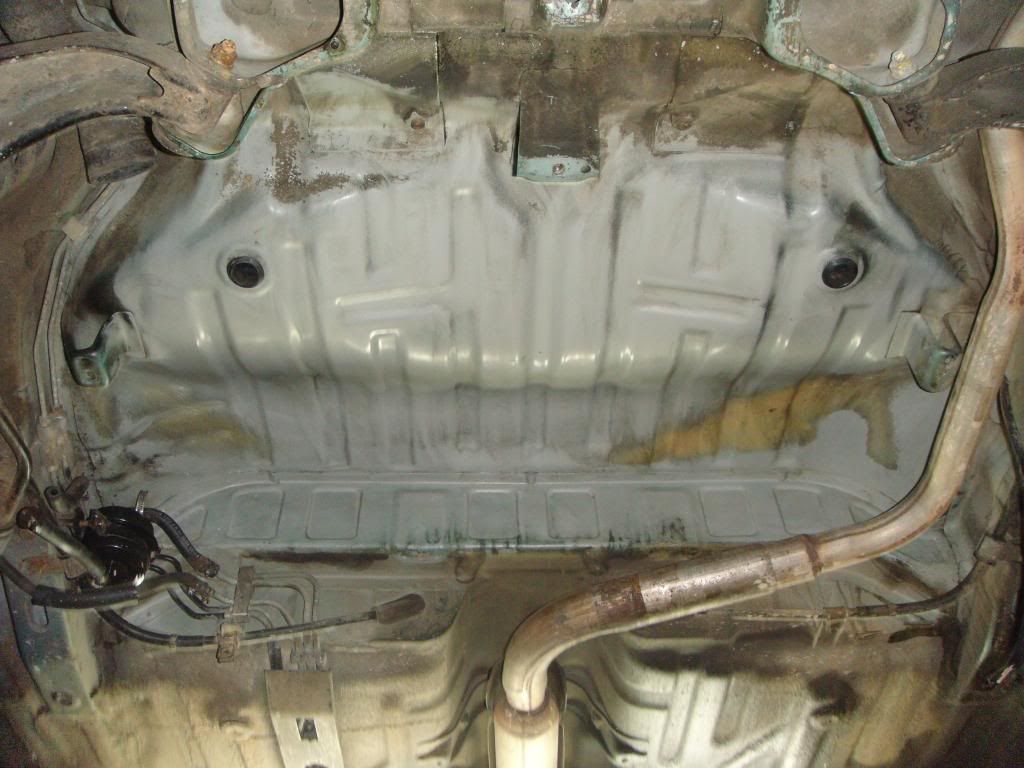

removed gas tank:
Posted Image

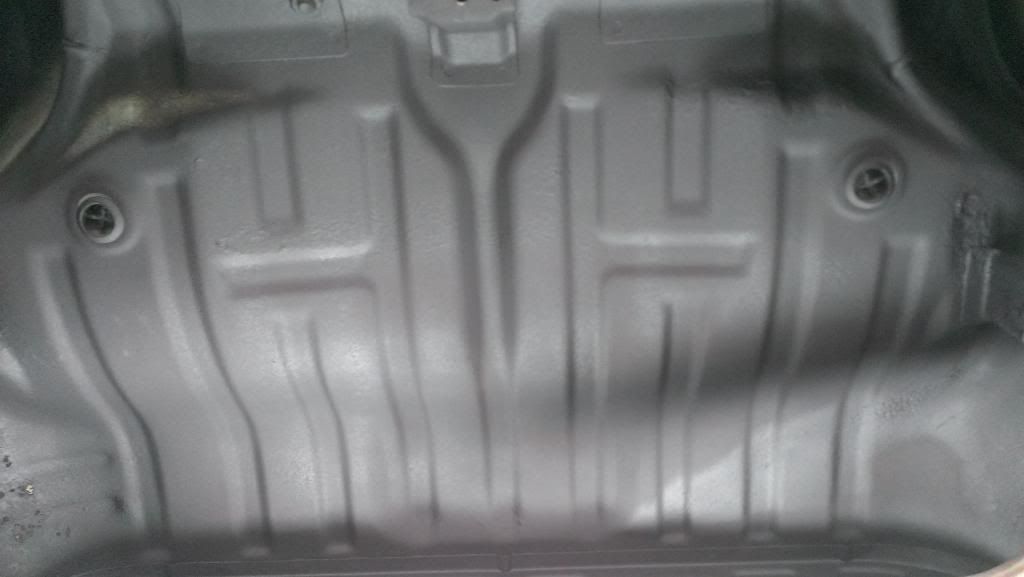

undercoated above the gas tank:
Posted Image

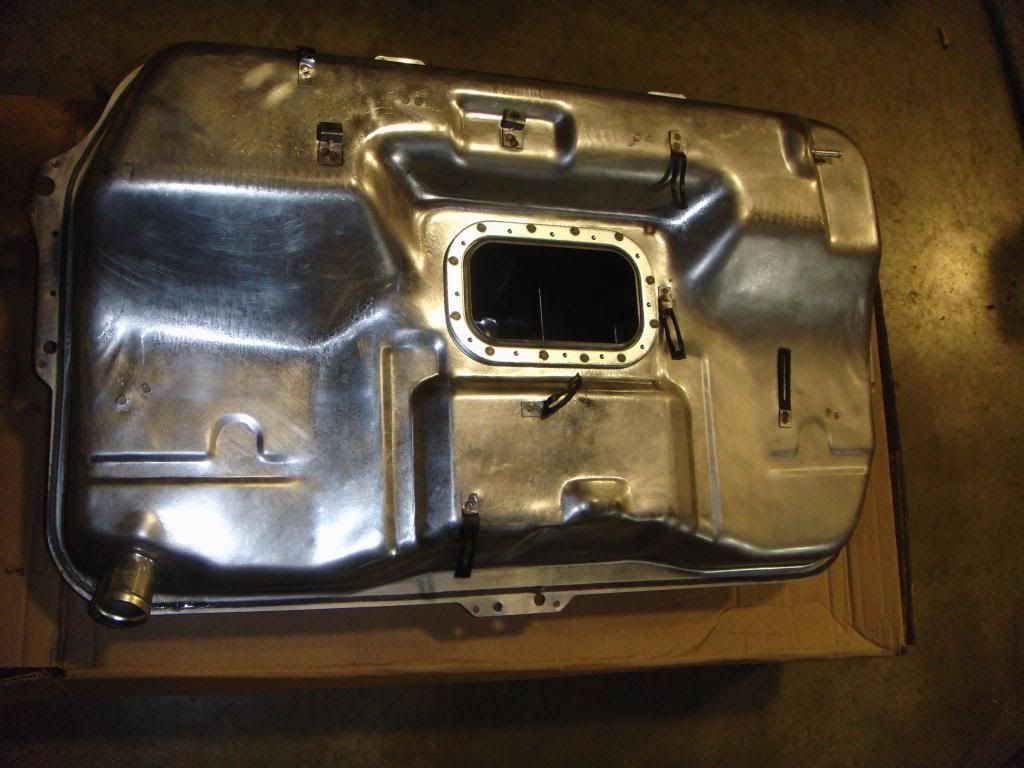

new tank:
Posted Image

painting tank:
Posted Image


Tomorrow I start working on the front end. I'll get the engine removed, put all my new front end parts in, paint the engine bay, and then work my way back and then next step will be interior and painting. I'll undercoat it as I move to the back to help fight the Cleveland rust.

Not quite sure how much I'll be updating because I don't have a computer for my personal use down here. I'll try to update every day though.

But I'm here and the project is beginning!
Online Profile Quote Post Goto Top

t3ragtop
Member Avatar
Turbo3 and Twincam Tweaker

that's looking good, jim. i'd be inclined to hit that tank on the bottom with truck bed liner - a heavy coat, too.

i'll be following your build. :D
Offline Profile Quote Post Goto Top

idmetro
Member Avatar


Keep up the nice work and you'll end up with a reliable driver!!!
Offline Profile Quote Post Goto Top

Hydrojim
Member Avatar


Almost ready to pull the engine as I type this post! Hopefully I can have it pulled by lunch!
