New welding table; for the shop
Topic Started: May 22 2013, 10:29 PM (1,329 Views)
evmetro

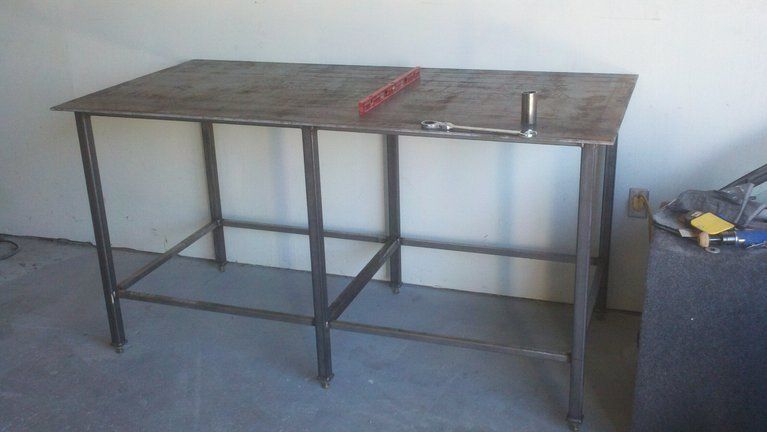

One of the local metal companies had a shear big enough for 3/8, so I had them cut me a 36" x 72" plate for the table top. They loaded it into my pick up with a forklift. The legs are 1.5" box tubing, and the cross supports are 1" box tubing.

Posted Image

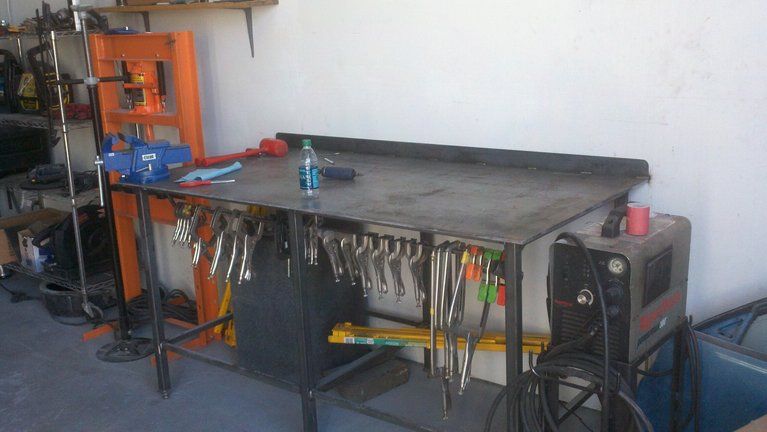

The next pic is with a back splash welded on to keep stuff off of the wall. You can also see the smaller box tubing support for my clamps, and low enough to still get a long clamp over it when clamping work to the table.

Posted Image

This last shot show the adjustable legs for making the table level on my uneven floor. Just a piece of 1/4 plate with a nut welded to the backside prior to welding it to the leg. These are 3/4 grade 8 bolts. Once you adjust the height, you can lock it in with that nut that you see there on the outside. The nut welded to the inside is the same as that lock nut that you see on the outside. Total cost of materials right at $400. Not bad if you search the internet for a welding table with a 36 x 72 x 3/8 top...

Posted Image
