my 97; madness in progress
Topic Started: Jun 9 2013, 08:02 PM (9,408 Views)
ZXTjato
Member Avatar
bass heads

We need more pics dude, I keep my phone on me when I build geo stuff and post pics while I eat or while waiting for paint to dry. I Finaly found out how to post pics on an iPhone and I don't get on the computer I do it all from the phone.
Offline Profile Quote Post Goto Top

Panzerjunkie
Member Avatar
Owner of Jazzy the Geo Dog
[ *  *  *  *  * ]
here's two for anyone looking into the 1.3 transmission swap into a 1L.
It was a strait bolt in except i had to move a stud over. from above the the input shaft to that ear ahead of it I've read you may have to thread that hole on some trannys I didn't have to.

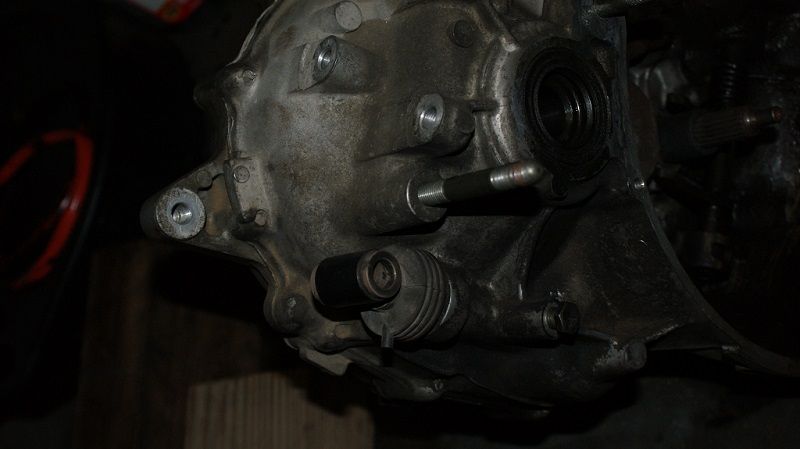

from here
Posted Image

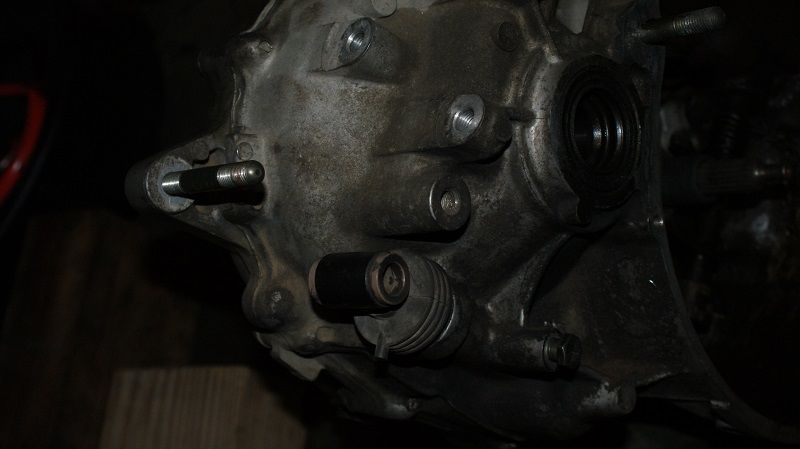

to here
Posted Image

I didn't tighten the stud down on this this one this was my old tranny
Offline Profile Quote Post Goto Top

Panzerjunkie
Member Avatar
Owner of Jazzy the Geo Dog
[ *  *  *  *  * ]
Unintentional mirror delete.... $^#@*&!!!
Posted Image
:shake
Offline Profile Quote Post Goto Top

Panzerjunkie
Member Avatar
Owner of Jazzy the Geo Dog
[ *  *  *  *  * ]
Waiting on parts
Posted Image
Injector and fuel pressure regulator membrane coming soon
Offline Profile Quote Post Goto Top

Panzerjunkie
Member Avatar
Owner of Jazzy the Geo Dog
[ *  *  *  *  * ]
ok update time got the injetcor but it looks screwed up pressure regulator seal didn't show up mabe it was in this truck Posted Image :-/
anywho

here's some pics around the injector and regulator

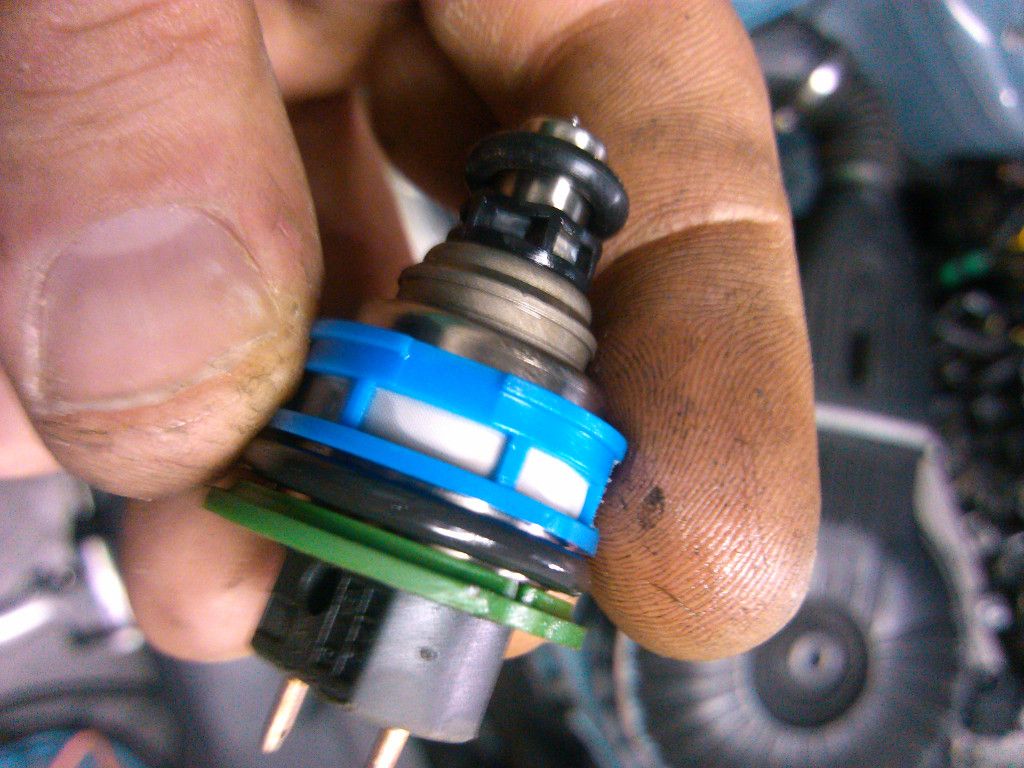

rebuilt injector with messed up end and oring too large also is just bosch with no key notch on the top
[IMG][URL=http://s1190.photobucket.com/user/panzerjunkie/media/IMG_20131013_183937.jpg.html]Posted Image[/URL][/IMG]

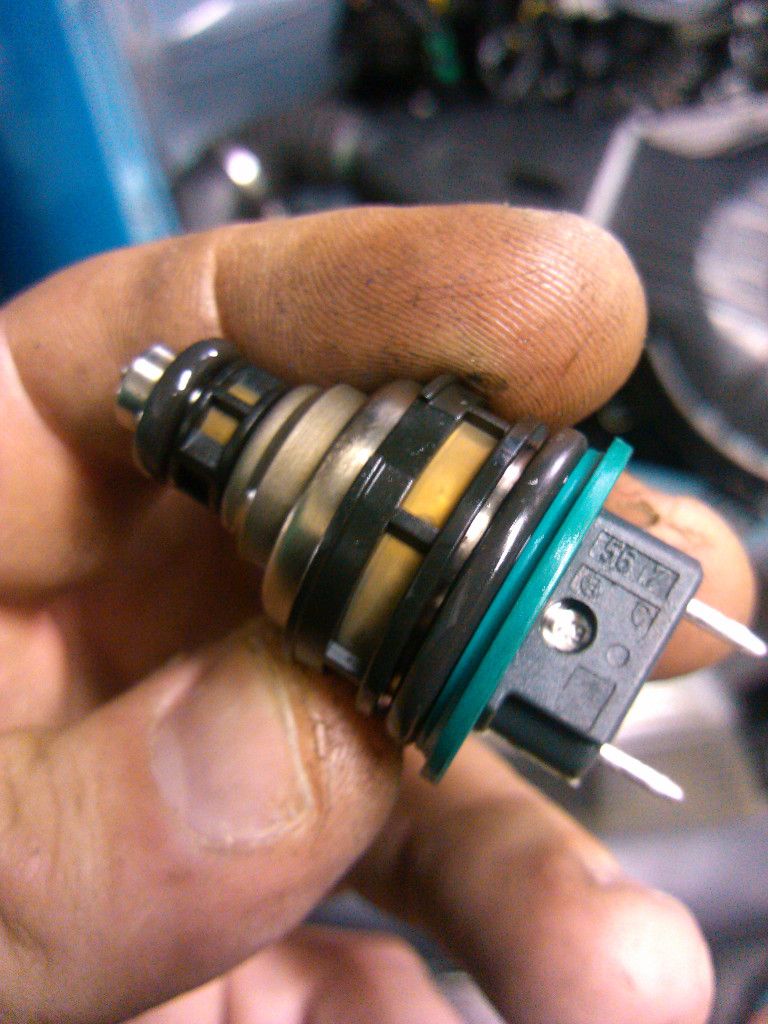

my old injector bosch/denso
[IMG][URL=http://s1190.photobucket.com/user/panzerjunkie/media/IMG_20131013_183911.jpg.html]Posted Image[/URL][/IMG]

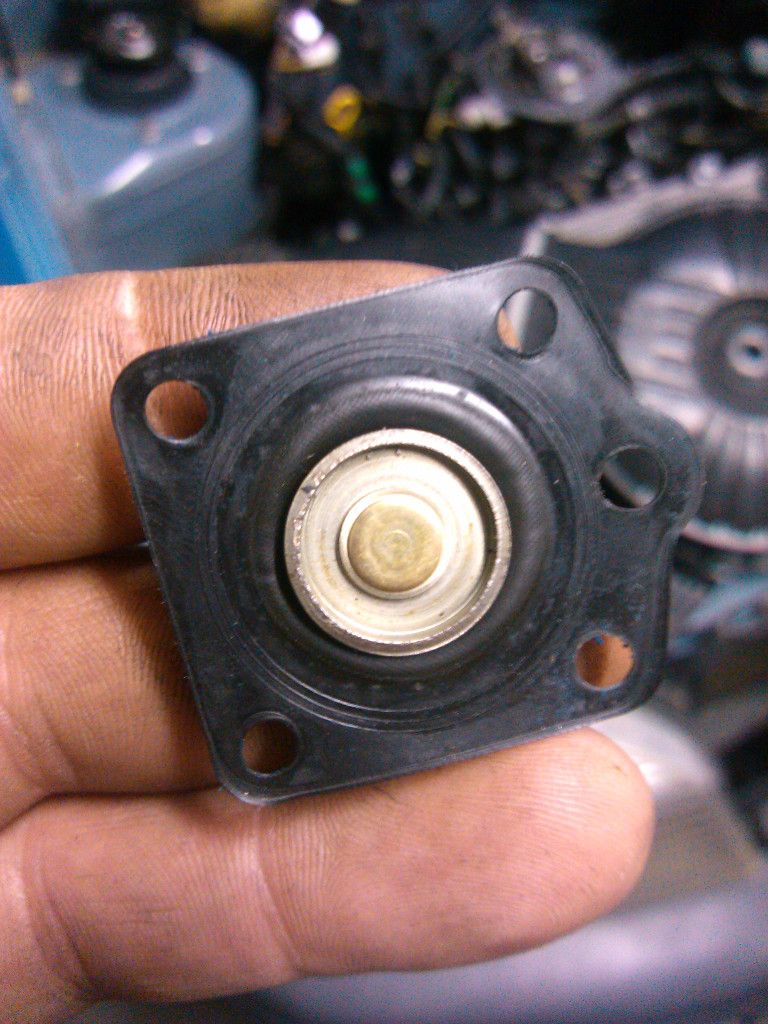

old regulator springside I think it's ok what about you guys?
Posted Image

old regulator gas port end
Posted Image

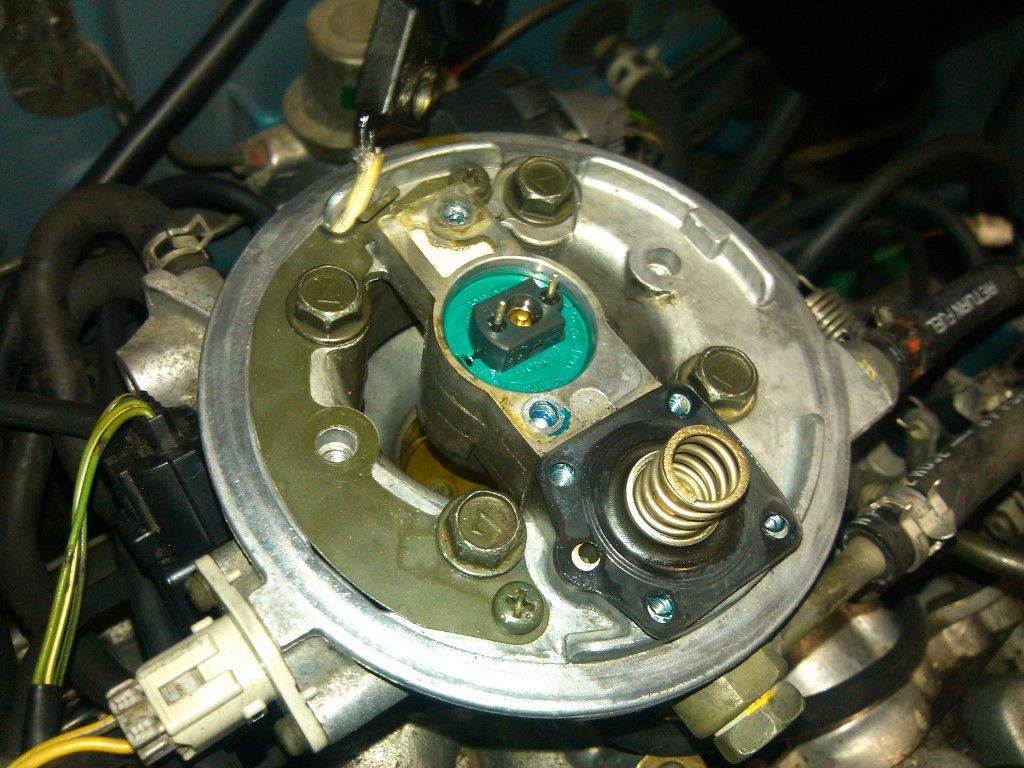

TB with injector and regulator apart hope this helps someone
Posted Image

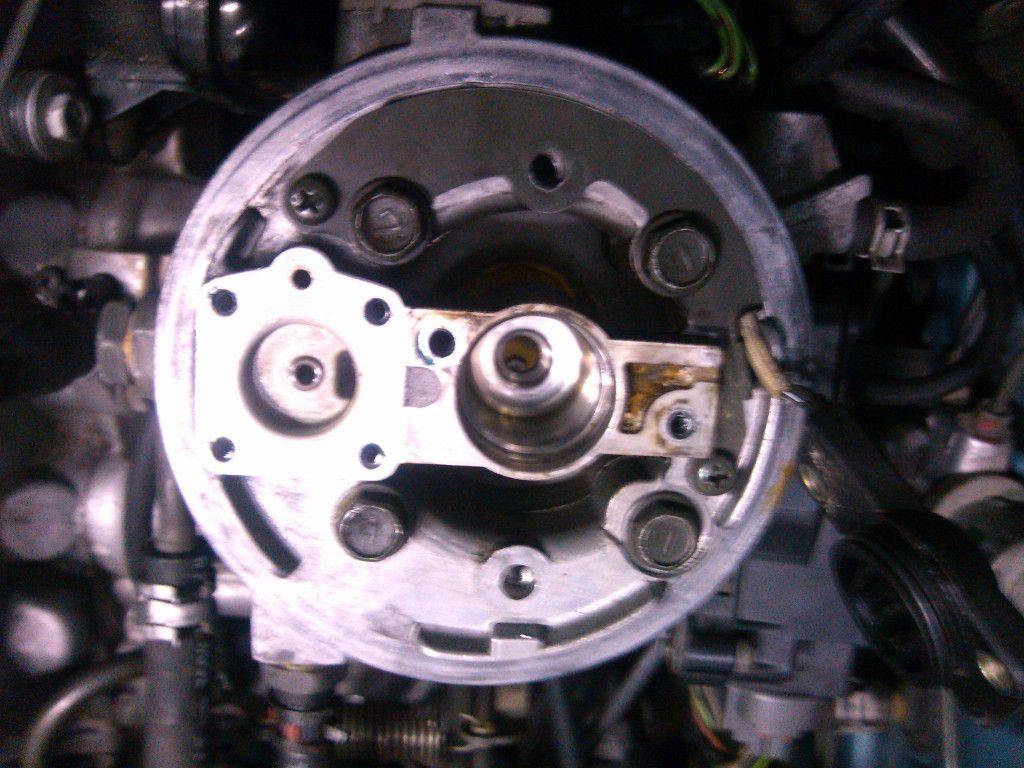

TB opened up
[IMG][URL=http://s1190.photobucket.com/user/panzerjunkie/media/IMG_20131013_183732.jpg.html]Posted Image[/URL][/IMG]

still running like crap and choking out I disconnected the cat to see if it was a clog but it wasn't better,
new fuel filter, maybe cloged pump or rust from the tank filling it all the way up could have boke some loose?
fuel is pretty clear though.. :banghead
Offline Profile Quote Post Goto Top

Panzerjunkie
Member Avatar
Owner of Jazzy the Geo Dog
[ *  *  *  *  * ]

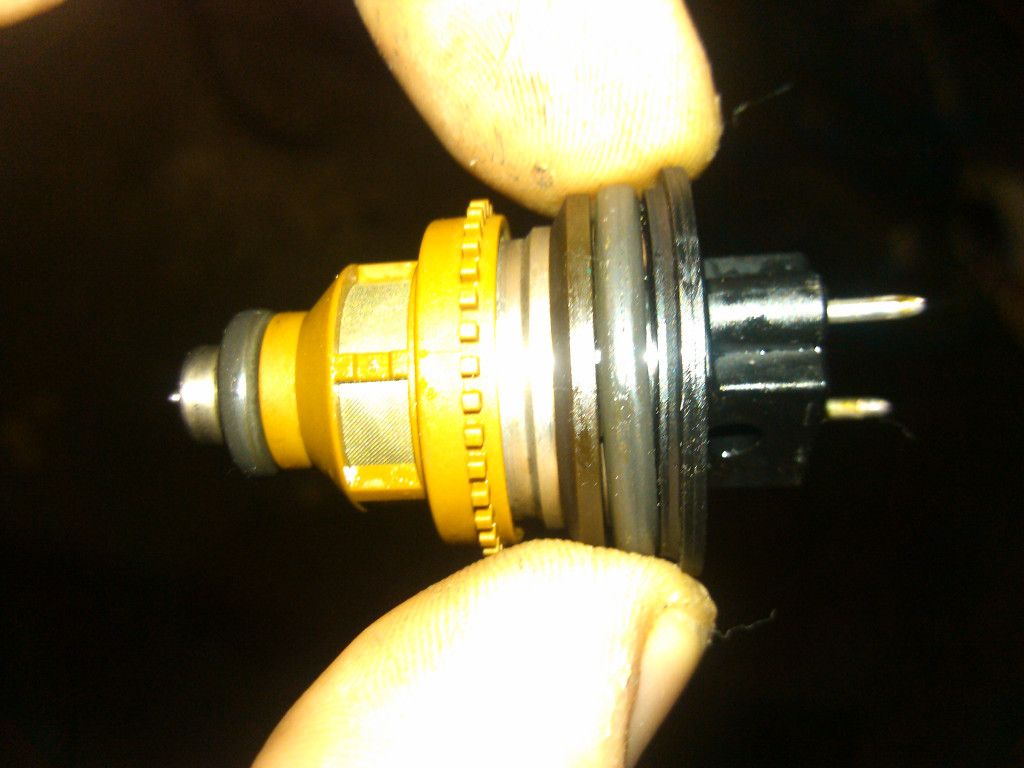

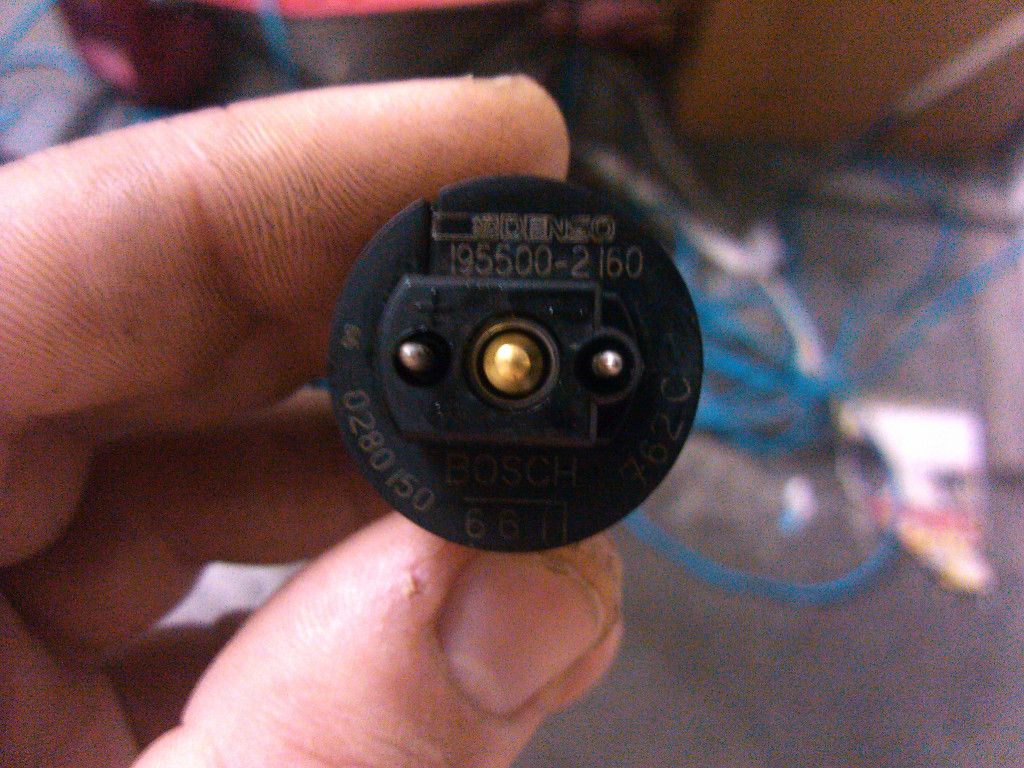

Here's the injector I pulled from the origional TB that came with the car

Posted Image

Posted Image


the mail truck was a webpull because I couldn't find a good one of the drunk postal worker ;)
Offline Profile Quote Post Goto Top

Panzerjunkie
Member Avatar
Owner of Jazzy the Geo Dog
[ *  *  *  *  * ]
After some reading about I figure to pull the tank
I'll get on that this week or the next.
may have to order gaskets and may awell do the pump
Any tips or advice well be much appreciated
Good night guys!
Offline Profile Quote Post Goto Top

tribrid
Member Avatar
Metromerized

You might try testing the fuel pressure at the TB, please be careful doing that. Also have you already pulled the fuel filter and tried temporarily bypassing it to see if it runs better? You"re doing great- you'll get it.
Offline Profile Quote Post Goto Top

Panzerjunkie
Member Avatar
Owner of Jazzy the Geo Dog
[ *  *  *  *  * ]
ok I bypassed the filter (and I plan on putting it under the hood) and it's acting better but still chokes and sputter on excel, also it chokes at idle but recovers.
I see palm size puddles of water from the exaust going up the driveway where I had to rev it up alittle to get it back into the garage and where I started it.
I belive this all started when I first filled it all the way up a few months back.
my brother suspects fuel pump but lives to far to see it in person, I suspect that and or crap in the tank water/rust.
I don't have the Harbor freight fuel/vac tester to check the psi yet.
Thanks guys for all your help I feel where close!
Can't wait to start playing with paint and speakers also I got a hatch glass with defroster to put in
Offline Profile Quote Post Goto Top

Panzerjunkie
Member Avatar
Owner of Jazzy the Geo Dog
[ *  *  *  *  * ]
Found bad bent's and blue Rhino's post on testing the pump know what i'm doing next :news
http://geometroforum.com/topic/5018867/1/
also see the Project forum rules note. sorry guys I'll try to clean this up.
Edited by Panzerjunkie, Oct 15 2013, 10:37 PM.
Offline Profile Quote Post Goto Top

tribrid
Member Avatar
Metromerized

:thumb
Offline Profile Quote Post Goto Top

Pilot-Terry
Member Avatar
Advanced Member
[ *  *  *  * ]
Thanks for the details - great to see the progress!
Offline Profile Quote Post Goto Top

ZXTjato
Member Avatar
bass heads

Nice build dude, I've never seen the TB apart thanks for the pics, I keep checking in.
Offline Profile Quote Post Goto Top

Panzerjunkie
Member Avatar
Owner of Jazzy the Geo Dog
[ *  *  *  *  * ]
Got time to test the pump and pull the tank will pull stuff out of the tank soon.
Tank looks good so far took the chance to clean up
when I ran a test gauge with the filter on even around idle it was around 11psi maybe 13
nothing different when just cranking also.
Here and there when I pull lines I get dirty colored gas then it clears up here is the cleaner of the nasty gas
maybe I'll pull the pump and float out tomorrow.

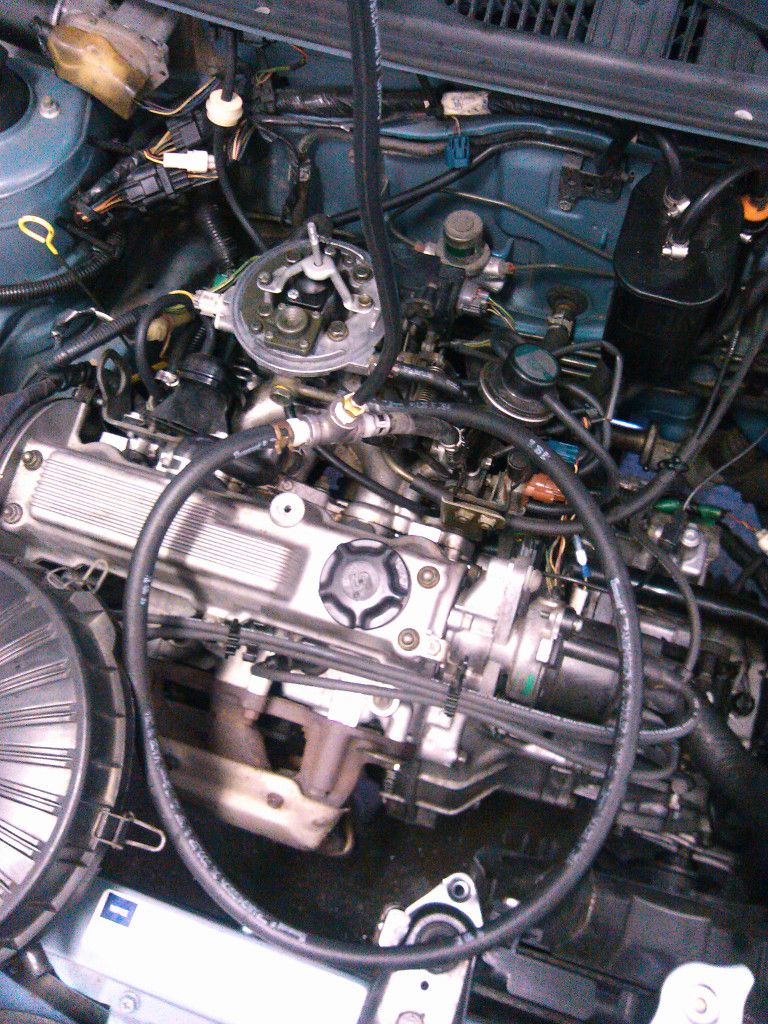

My test rig maybe I used to long hose
Posted Image

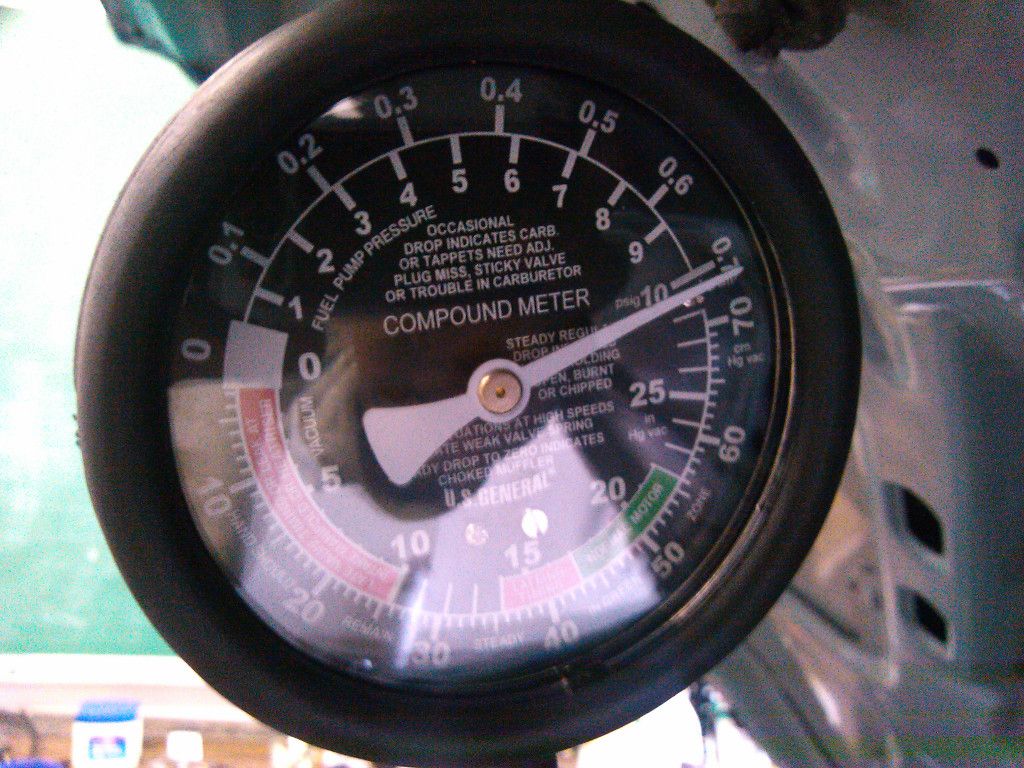

gauge reading
Posted Image

NO that's not olive OIL!!! :beer :x
I've seen the gas darker once or twice
Posted Image

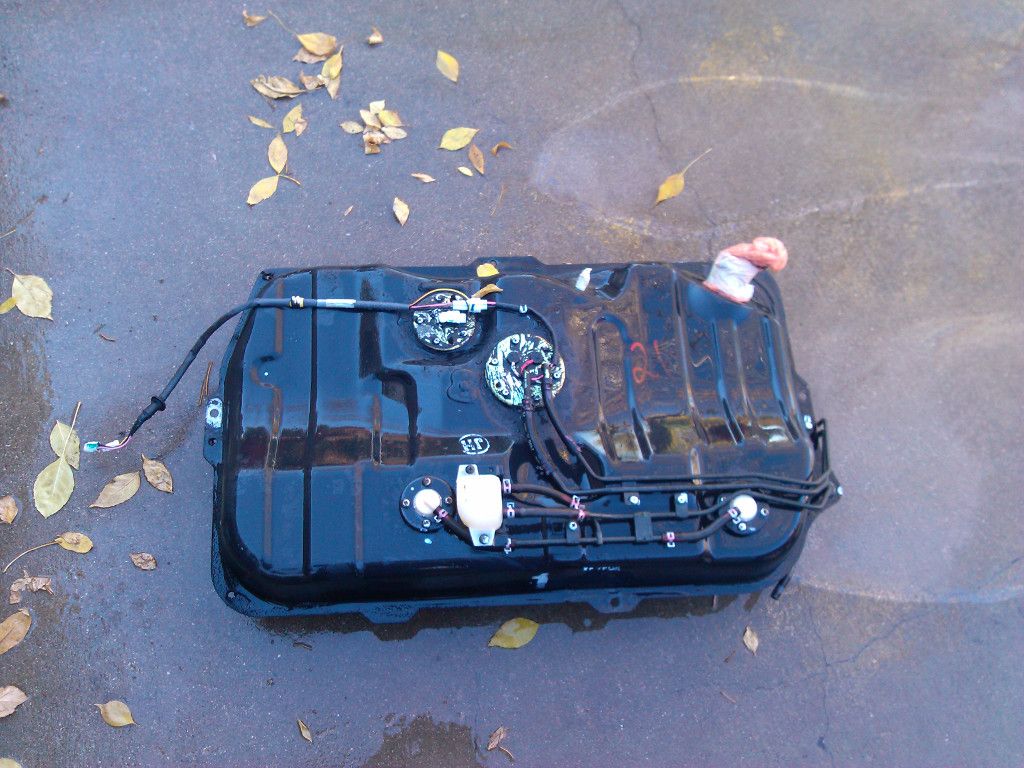

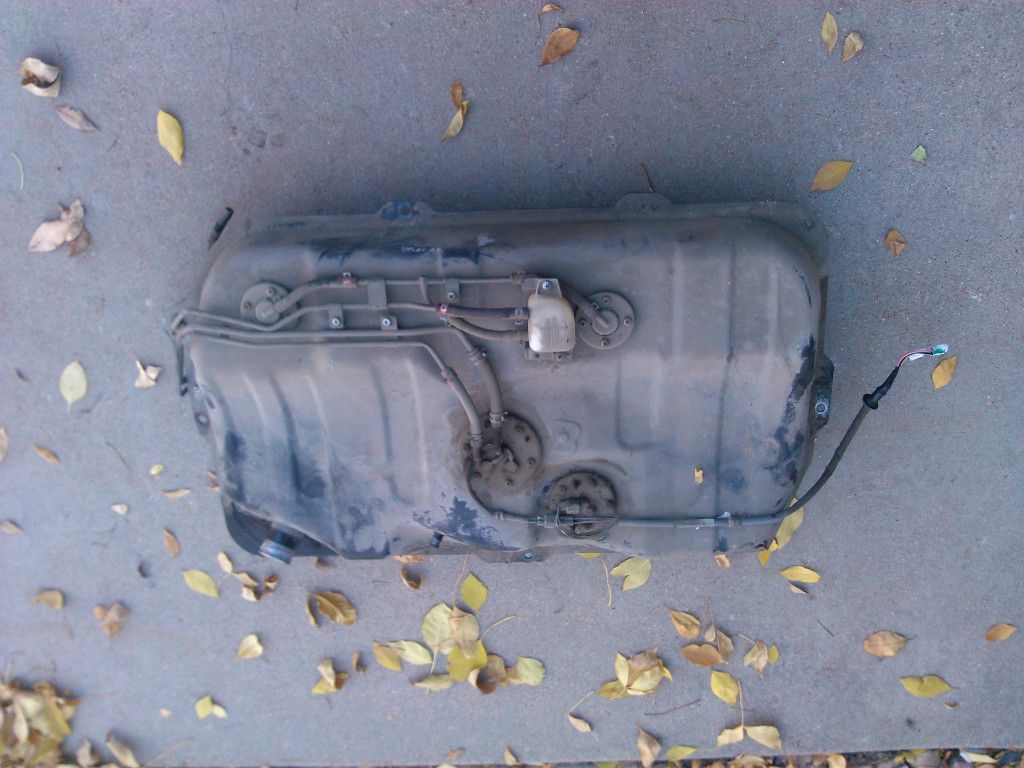

Tank aint to hard to pull
Posted Image

rust aint bad :D
Posted Image

clean tank, darkened driveway :)
Posted Image

Stay tuned same bat channel whatever bat time I get my lazy butt to post pics :)
Offline Profile Quote Post Goto Top

Panzerjunkie
Member Avatar
Owner of Jazzy the Geo Dog
[ *  *  *  *  * ]
Got everything off the tank looks like there is a little rust can't see the inside top but suspect a little more,
cleaned the contacts on the fuel level float, cleaned everything including metal lines may just do a vinegar clean on the tank, not sure if I should still seal it.
may just replace the fuel pump defiantly the filter.

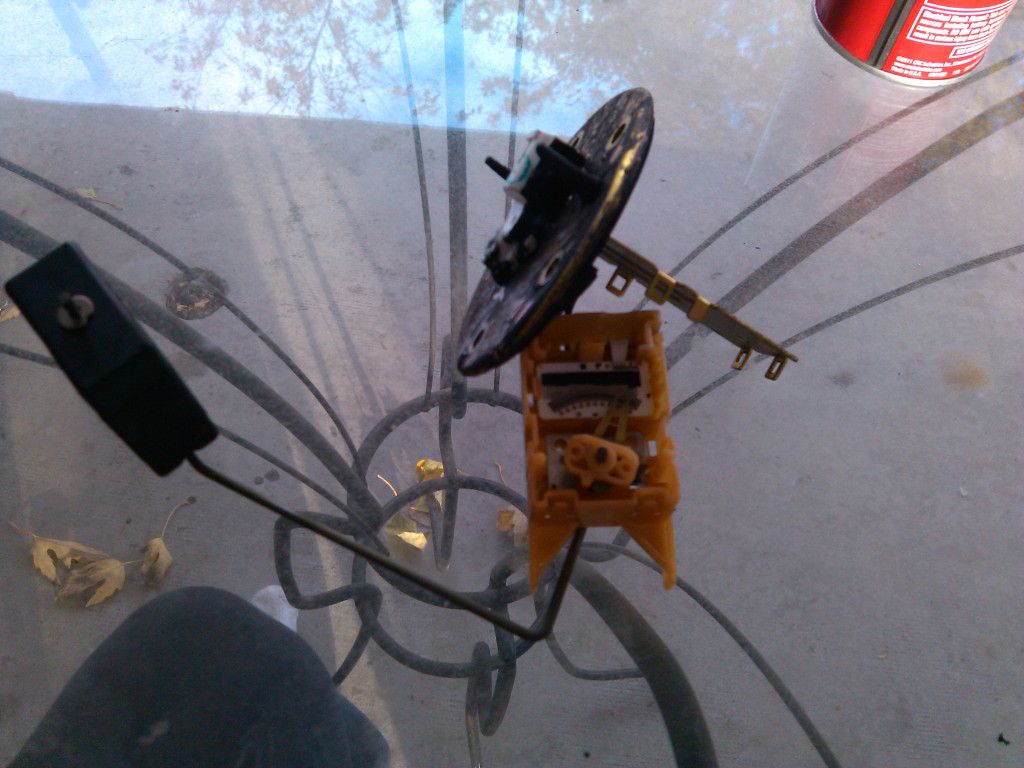

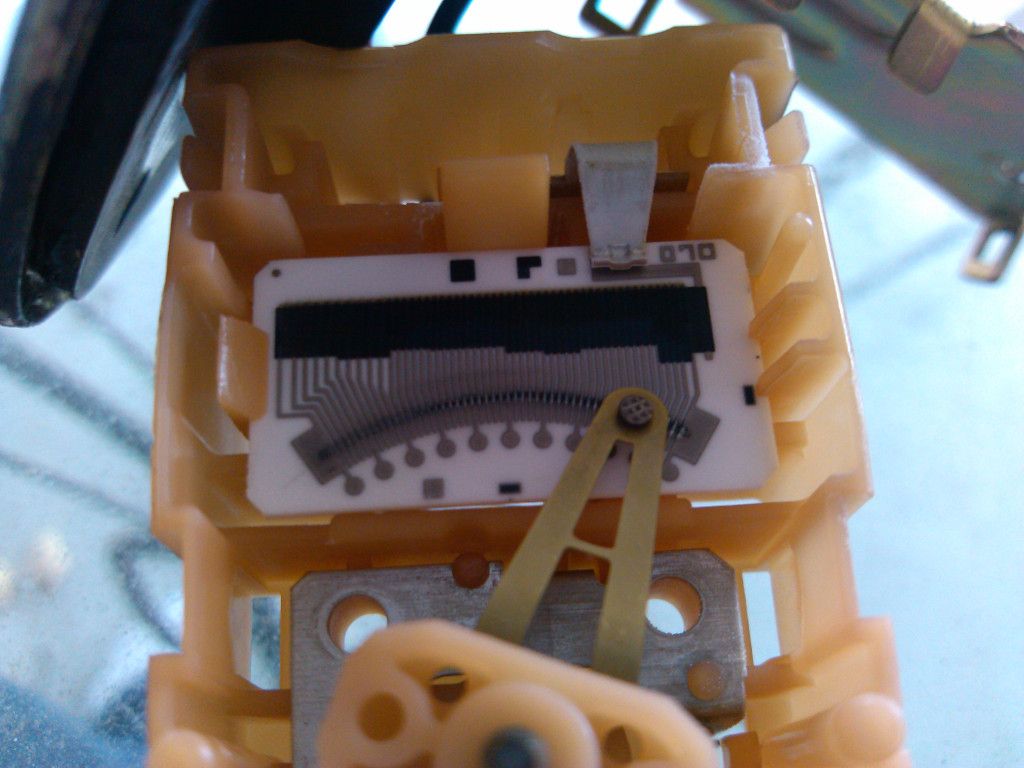

the fuel level unit opened up
Posted Image

closer view of the contacts
Posted Image

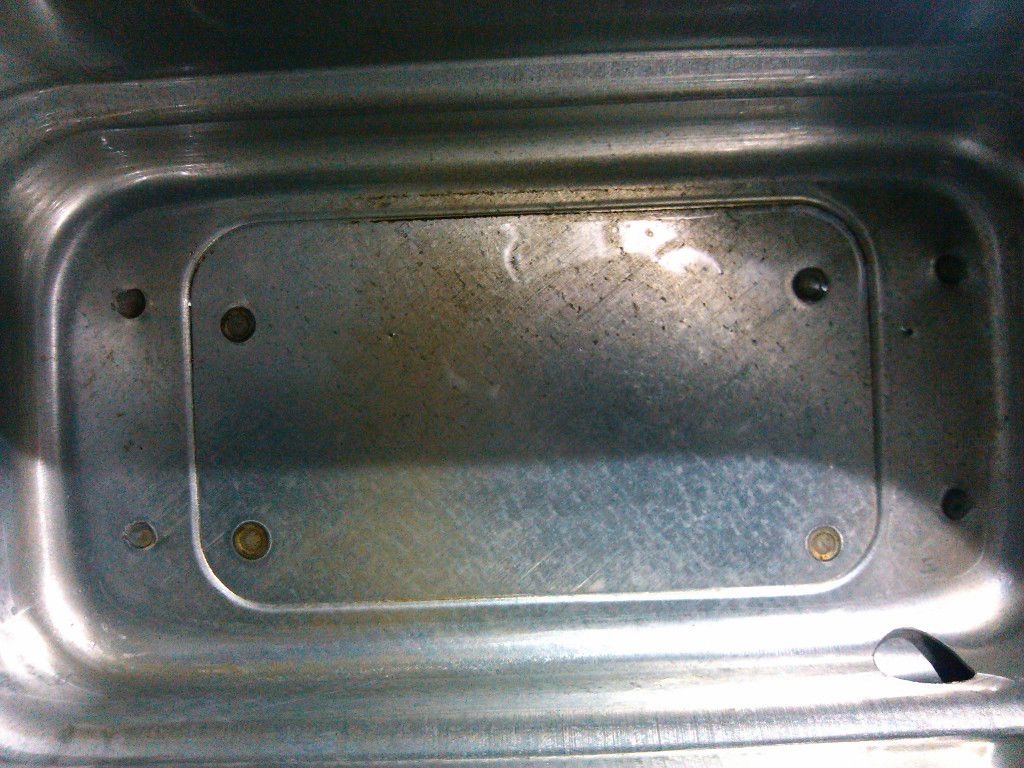

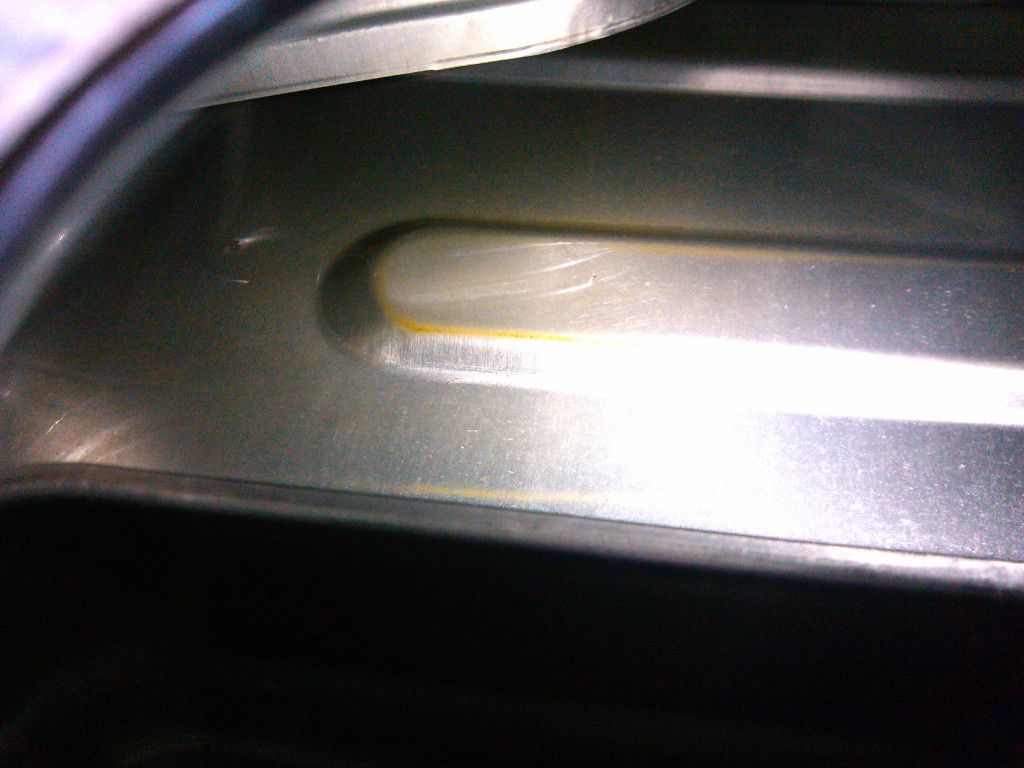

little rust on the bottom of the tank
Posted Image

Posted Image

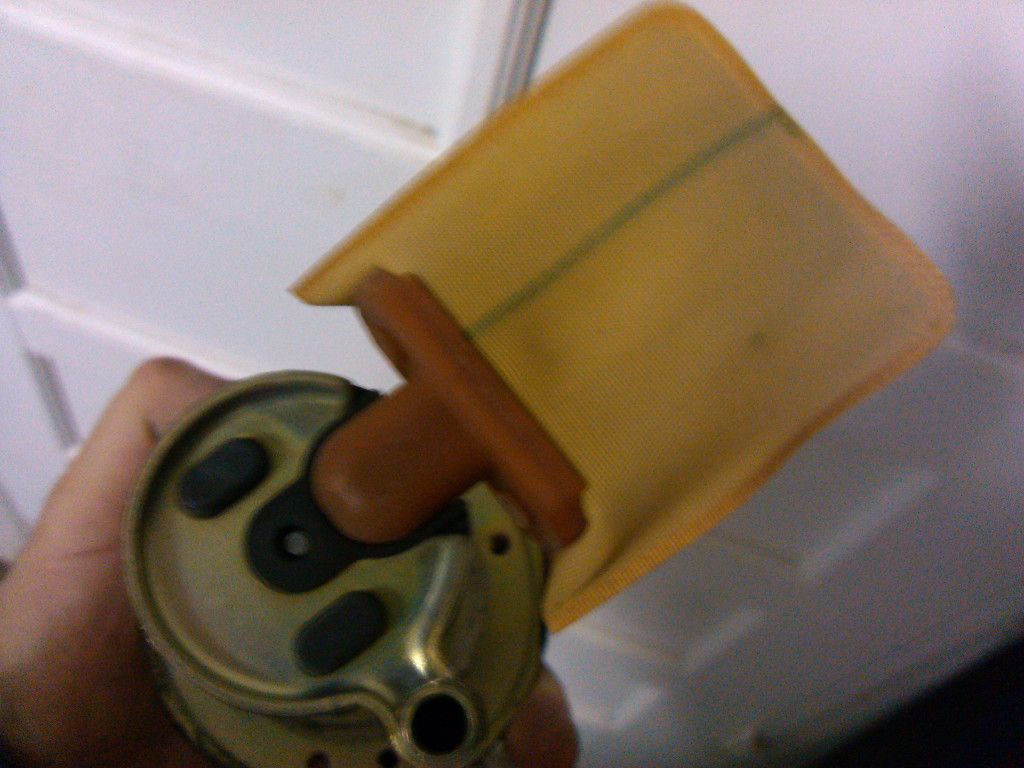

fuel pump
Posted Image

Posted Image

Offline Profile Quote Post Goto Top
