Terminals to jump for timing set - resolved; Terminals to jump for timing set - resolved
Topic Started: Aug 26 2013, 04:11 PM (1,315 Views)
j63812f
Member Avatar
J R

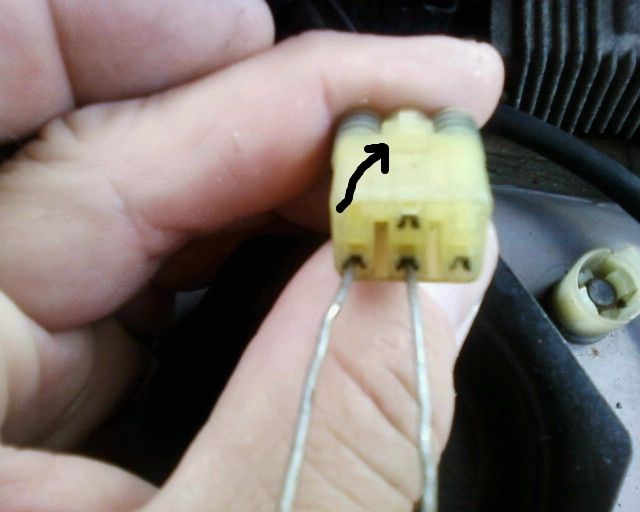

Look at the pic I posted above, the UP side is the side that has the notch on the top center. Actually its hard to see, if I had photoshop I coulda drew an arrow to it.
Edited by j63812f, Oct 7 2013, 01:36 PM.
Offline Profile Quote Post Goto Top

Bad Bent
Member Avatar
Facetious Educated Donkey

:gp Try http://www.sumopaint.com/www/ And actually Photobucket has an Edit feature.
Flash
Oct 7 2013, 12:25 PM
I've got a 3Tec econo cam with a 6 deg timing gear. I was afraid of shorting out something with the jumper. I have 5 wires coming from that plug, and the book said the bottom two on the left. You can flip the plug over and still have two wires on the bottom left. What is "up" on this plug?


A little redundant... Looking at the two hood stickers on the left of this pic you see the little 6 square box showing the jumper in the two lower left corner. There is a small line (rectangle) on the top of the drawing. That represents the locking clip on the plug.

Posted Image

Posted Image

Offline Profile Quote Post Goto Top

j63812f
Member Avatar
J R

YES a locking clip!! Wasnt sure what to call it. Thanks!
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

Mythstae
Oct 7 2013, 12:24 PM
j63812f
Oct 6 2013, 07:21 PM
Just an update, if anyone is interested. We both have Ultraguages in our cars. Turns out the Ultraguage, when actively plugged in, keeps the ECM from releasing the timing for setup. It hit me today like a brick, and when we unplug the Ultraguage and put the jumper on, the ECM drops the idle and brings the mark back to where we can see it.

PROBLEM Solved!!

Who'da thunk.
That is SUPER interesting :hmm
(Geo Glenn secretly unplugs his Ultra-Gauge and resets his timing) :hiding

Quote Post Goto Top

Mythstae
Member Avatar


Geo Glenn
Oct 9 2013, 10:25 PM
Mythstae
Oct 7 2013, 12:24 PM
j63812f
Oct 6 2013, 07:21 PM
Just an update, if anyone is interested. We both have Ultraguages in our cars. Turns out the Ultraguage, when actively plugged in, keeps the ECM from releasing the timing for setup. It hit me today like a brick, and when we unplug the Ultraguage and put the jumper on, the ECM drops the idle and brings the mark back to where we can see it.

PROBLEM Solved!!

Who'da thunk.
That is SUPER interesting :hmm
(Geo Glenn secretly unplugs his Ultra-Gauge and resets his timing) :hiding

(And wishes he had a timing light as nice as Mythstae's...)
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

Mythstae
Oct 10 2013, 09:25 AM
Geo Glenn
Oct 9 2013, 10:25 PM
Mythstae
Oct 7 2013, 12:24 PM
j63812f
Oct 6 2013, 07:21 PM
Just an update, if anyone is interested. We both have Ultraguages in our cars. Turns out the Ultraguage, when actively plugged in, keeps the ECM from releasing the timing for setup. It hit me today like a brick, and when we unplug the Ultraguage and put the jumper on, the ECM drops the idle and brings the mark back to where we can see it.

PROBLEM Solved!!

Who'da thunk.
That is SUPER interesting :hmm
(Geo Glenn secretly unplugs his Ultra-Gauge and resets his timing) :hiding

(And wishes he had a timing light as nice as Mythstae's...)
:news That's right. You do have a nice timing light.

Dear Craigslist,

Show me a timing light as nice as Mythstae's.

Love,

Geo Glenn

Posted Image
Quote Post Goto Top

Mythstae
Member Avatar


Geo Glenn
Oct 10 2013, 09:45 AM

Dear Craigslist,

Show me a timing light as nice as Mythstae's.

Love,

Geo Glenn
Dear Glenn,
There aren't any.
Love,
Craigslist
Offline Profile Quote Post Goto Top

BillMan
Elite Member
[ *  *  *  *  * ]
Hope this helps?
https://www.dropbox.com/s/bqlbo7xypau3x7n/1018-geo-metro-Fig.doc
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

Geo Glenn
Oct 9 2013, 10:25 PM
Mythstae
Oct 7 2013, 12:24 PM
j63812f
Oct 6 2013, 07:21 PM
Just an update, if anyone is interested. We both have Ultraguages in our cars. Turns out the Ultraguage, when actively plugged in, keeps the ECM from releasing the timing for setup. It hit me today like a brick, and when we unplug the Ultraguage and put the jumper on, the ECM drops the idle and brings the mark back to where we can see it.

PROBLEM Solved!!

Who'da thunk.
That is SUPER interesting :hmm
(Geo Glenn secretly unplugs his Ultra-Gauge and resets his timing) :hiding

I checked my timing after disconnecting the Ultra-Gauge. 4-1/2° BTDC. I had it set for 5° BDTC with the Ultra-Gauge connected. Close enough. Jumper out, connector stowed, hood down. Ultra-Gauge reconnected.

:drivin

Geo Glenn - Out.
