Thermostat seems too small.
Topic Started: Oct 21 2013, 01:25 PM (2,035 Views)
evintho

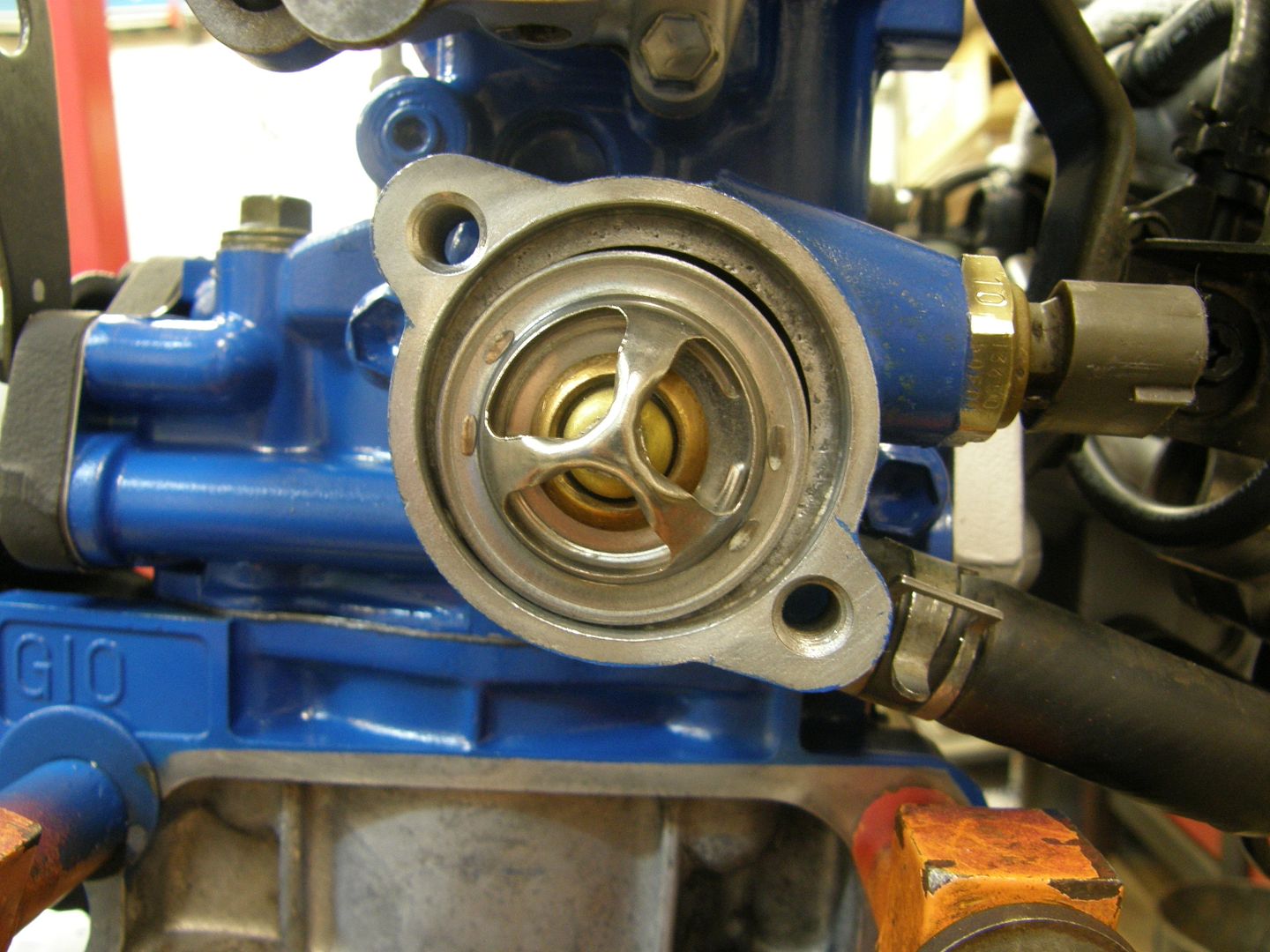

I double checked the part # and this is what it calls for. It doesn't seem wide enough. Note the gap in the upper area. Seems like that defeats the purpose of the thermostat! If I twist it a little, that tends to center it but it's still floppy loose, even with the housing installed. Thoughts or opinions, please?

Posted Image
Offline Profile Quote Post Goto Top

Mythstae
Member Avatar


You need a gasket!
P/N THM1105
It's for a Dodge Neon, but it is really nice.
And it does fit.
http://www.napaonline.com/Catalog/CatalogItemDetail.aspx/Thermostat-Housing-Seal/_/R-THM1105_0080422114

I believe this was originally suggested by Old Man :hmm
Offline Profile Quote Post Goto Top

Mythstae
Member Avatar


Might want to clip off that little square nipple with a pair of nail clippers or something. I don't recall if it matters.
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

What Mythstae said. :thumb

No gasket required. Just the seal from NAPA. It fits around the thermostat.

Put the thermostat with seal into the recess. A little bit of Ultra-Gray RTV on the flange of the water outlet, and you're sealed. Not much RTV should extrude from the mating surfaces.
Quote Post Goto Top

ascensions
Member Avatar
Je conduis une petite voiture.

Chrysler 4 Seal:

Posted Image

http://www.livjones.com/2014/04/where-did-all-my-coolant-go.html

Fel Pro part # 35588. (Federal Mogul). [1.615" ID/1.989" OD - .25" thick ]
Edited by ascensions, Oct 12 2016, 07:53 AM.
Offline Profile Quote Post Goto Top

Memphis metro


http://geometroforum.com/topic/5069347/1/
Offline Profile Quote Post Goto Top

ascensions
Member Avatar
Je conduis une petite voiture.

Big Rhino
Oct 21 2013, 01:56 PM
I would stay away from all Geo thermostat gaskets unless you get the upgraded one through the dealer. They're all wrong. Go Neon, and you won't go wrong.
Offline Profile Quote Post Goto Top

Memphis metro


Read this,

http://geometroforum.com/topic/5087079/1/#new

Use the correct parts for a metro and type thermostat housing you have and you will have no problems if done correctly.
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

ascensions
Oct 21 2013, 01:52 PM
Chrysler 4 Seal:

Posted Image

http://greensboring.com/viewtopic.php?f=2&t=14178

Fel Pro part # 35588. (Federal Mogul). [1.615" ID/1.989" OD - .25" thick ]
Nice! :thumb

Keeping up with the changes. Gaskets and seals that don't work. Don't bother. :news

Quote Post Goto Top

evintho


Aweome info! This ought to be a sticky! I would have never known this if it wasn't for this board! My local AZ has the Neon seal in stock - $4.99. On my way to get it now. In addition, I assume I still need the thermostat housing gasket and a thin coating of RTV, correct?
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

The Fel-Pro P/N 35365 goes between the head and the thermostat housing. Ultra-Gray RTV is the best.
Quote Post Goto Top

ascensions
Member Avatar
Je conduis une petite voiture.

evintho
Oct 21 2013, 02:35 PM
In addition, I assume I still need the thermostat housing gasket and a thin coating of RTV, correct?
For me, no.

I have a 96, and the single Neon seal is all you need.

The gasket is actually for older models (correct me if I'm wrong), and the RTV is not necessary with the part number I posted: Fel Pro part # 35588 (note Glenn and others have posted other part numbers [not sure how different they are]).

For me the Neon seal has done 30,000 + miles by itself without a single problem, and never have I ever added coolant since.
Edited by ascensions, Oct 21 2013, 02:57 PM.
Offline Profile Quote Post Goto Top

ascensions
Member Avatar
Je conduis une petite voiture.

Big Rhino
Oct 21 2013, 01:59 PM


Use the correct parts for a metro and type thermostat housing you have and you will have no problems if done correctly.
Respectfully, I Completely disagree (at least in regards to 1996 and newer models).
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

The Fel-Pro gasket P/N 35363 is needed on all years. Actually, the Suzuki P/N 17699-60B02 is a very fine gasket that fits between the head and the thermostat housing. It's some sort of metal covered with a rubbery material. Officially, no RTV is needed. I use it anyway.

Indeed, there is no gasket required at the water outlet housing for those that have a thermostat seal. The seal that Mythstae or ascensions posted is all that is needed. I prefer to use a little dab of RTV on the water outlet housing to keep external moisture out and prevent corrosion on the flanges of the mating parts.
Quote Post Goto Top

Memphis metro


ascensions
Oct 21 2013, 02:54 PM
Big Rhino
Oct 21 2013, 01:59 PM


Use the correct parts for a metro and type thermostat housing you have and you will have no problems if done correctly.
Respectfully, I Completely disagree (at least in regards to 1996 and newer models).
What exactly 96 and later parts that sell for a metro and part numbers are you saying does not work? I suspect most people are not installing these things as needed. It is not the parts fault. I have had no issues with any gaskets or seals sold for a metro myself. I have replaced both styles. One style of the gasket was upgraded but many of the old styles were sold and used without issue. They made it better and replaced it.
Offline Profile Quote Post Goto Top
