Some Installation Pics
Topic Started: Nov 5 2013, 01:32 PM (3,257 Views)
MechaGodzilla
Member Avatar


I put in a JVC KD-R540 over the weekend and it seems to work OK. I have to get used to the controls, but for $99.99 Crutchfield included the mounting kit and wiring harness.

I also got 2 pair of el-cheapo Pyle 6-1/2" 3-way speakers (PL63BL) from Amazon. 2 x pair of for $37 with free shipping on orders over $35. I installed a pair in the doors, but haven't got to the set in the back yet. Using stock grilles to keep it "stealth"... not an expensive system by any means, but I don't want to invite anyone to bust into the car either.

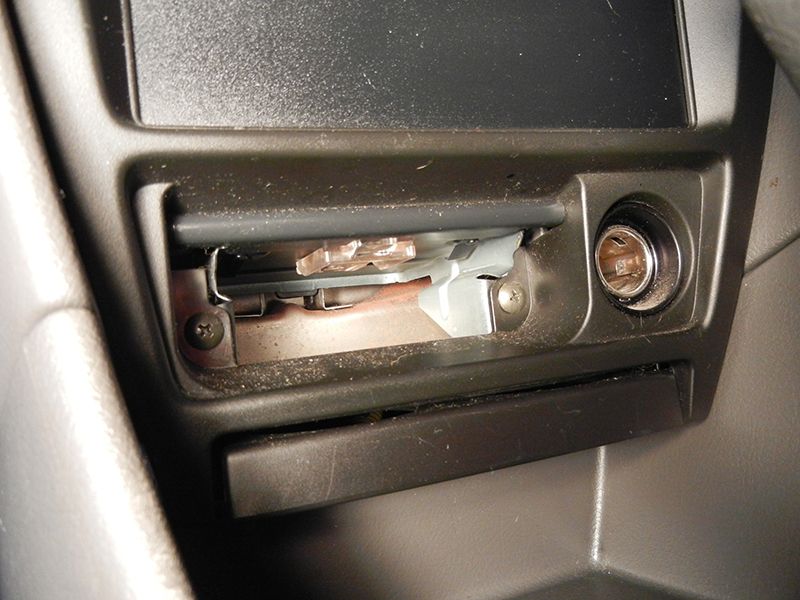

Before:
Posted Image

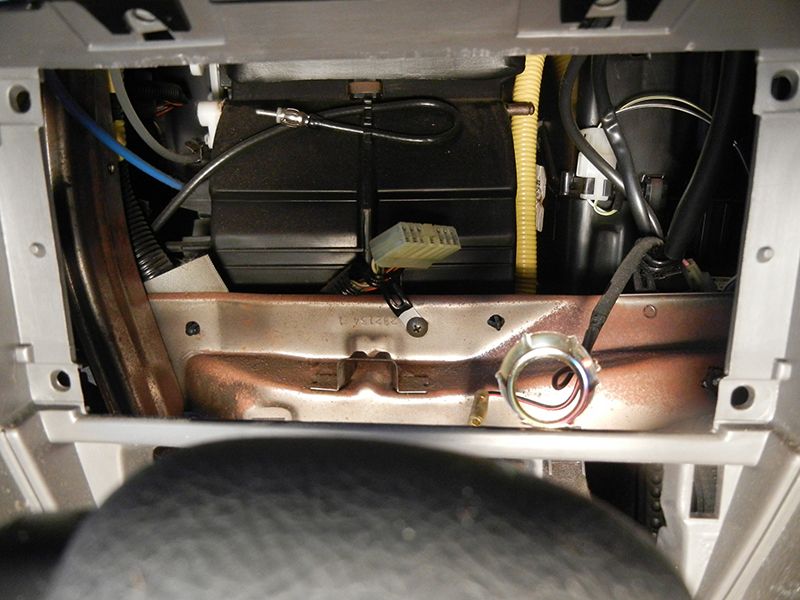

This is the dash center opened up. Antenna cable and wiring harness were right there in a car that had never been equipped with a radio.
Posted Image
Edited by MechaGodzilla, Nov 6 2013, 09:05 AM.
Offline Profile Quote Post Goto Top

MechaGodzilla
Member Avatar

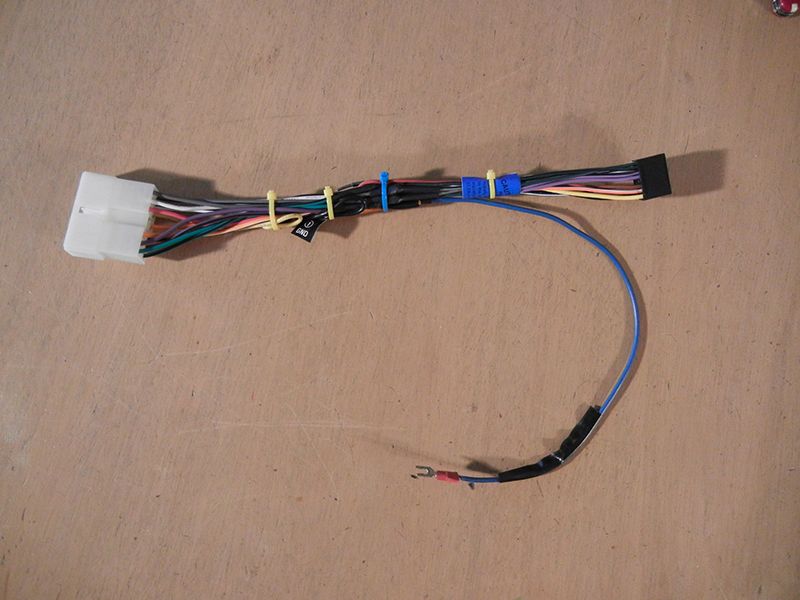

This is the factory harness shrink-tubed to the radio harness. Pretty painless to put together. I added an extra tail to the ground wire to attach to the chassis, just because...

Posted Image
Offline Profile Quote Post Goto Top

MechaGodzilla
Member Avatar


Here is the unit mounted in the dash. The brackets that came with the mounting kit were too long to fit properly, so I had to bend them... I guess I could have cut them shorter with some tin snips.

Posted Image
Offline Profile Quote Post Goto Top

MechaGodzilla
Member Avatar

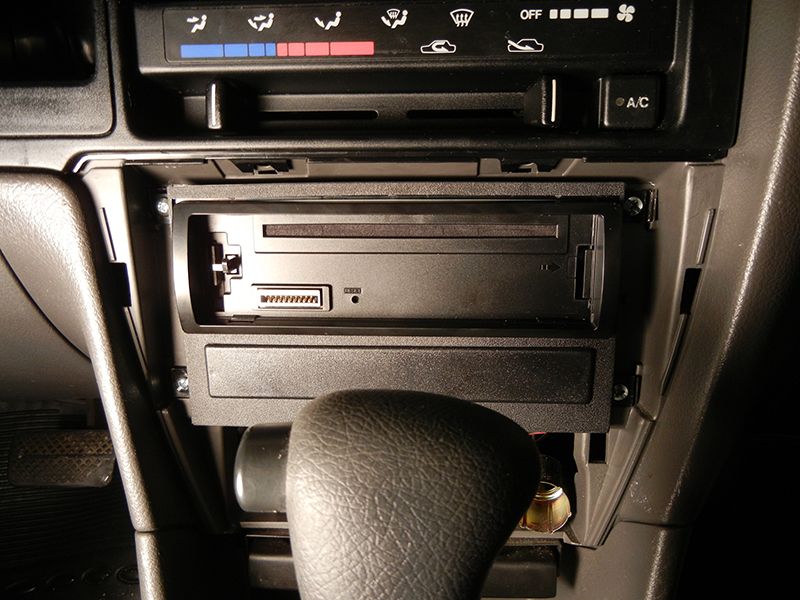

Here's everything installed. The factory bezel was slightly too narrow for the faceplate to fit, so I adjusted it a bit with a Dremel-ish tool.

Posted Image
Offline Profile Quote Post Goto Top

MechaGodzilla
Member Avatar

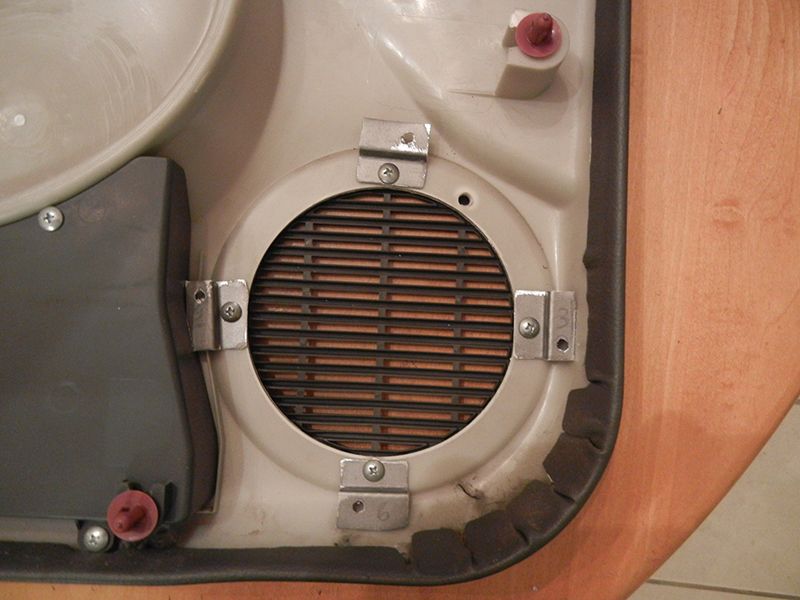

The speakers didn't come with any brackets to mount them directly to the door, so I bent up some scrap metal that I had laying around and attached them to the interior panels. I would probably get better resonance mounting them to the door frame, so if anyone has a pic/link to a bracket that will work please let me know.

Posted Image
Edited by MechaGodzilla, Nov 5 2013, 01:56 PM.
Offline Profile Quote Post Goto Top

MechaGodzilla
Member Avatar

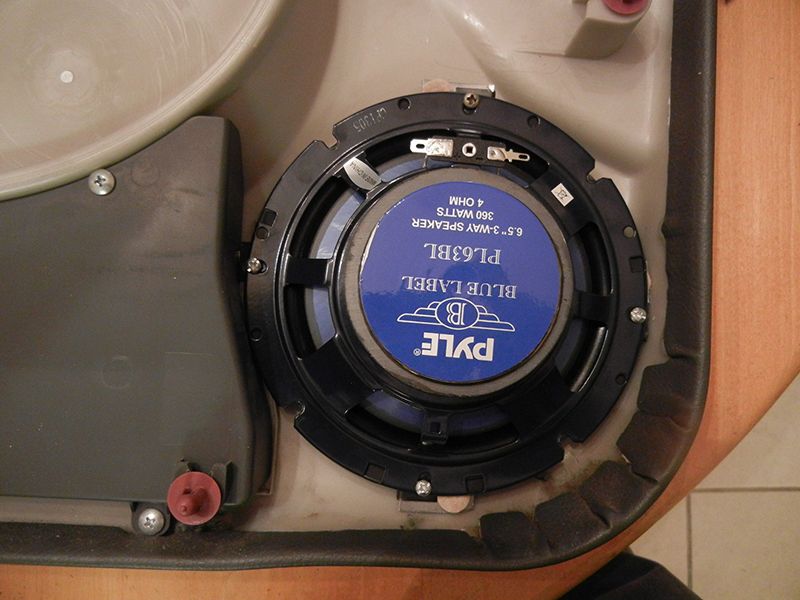

I mounted them upside down so the wires would reach. I cut off the stock connectors and crimped on some quick disconnects. If I remount the speakers to the door frame, I'll probably solder the connections but they are OK for now,

Posted Image

I'll put up more pics when I install the rear set.
Edited by MechaGodzilla, Nov 5 2013, 01:54 PM.
Offline Profile Quote Post Goto Top

Mythstae
Member Avatar


MechaGodzilla
Nov 5 2013, 01:49 PM
if anyone has a pic/link to a bracket that will work please let me know.
I've got some OEM door-mount speaker things... I'll go get a pic, be back to post it in a few...
Offline Profile Quote Post Goto Top

Mythstae
Member Avatar


Posted Image
Don't mind the water spots, it's raining. :lol

So on the left is the back of one, you can see they had a little strip of foam attached from the factory, and on the right, the front that you mount the speaker to.
Offline Profile Quote Post Goto Top

Mythstae
Member Avatar


You can also see the cute little notch they gave you to put the speaker wires into, to plug in to the speaker from the back.
And, I think they are upside-down. :lol
I believe the two holes that are closer together go on the bottom.

So if you didn't have a stereo from the factory, did you have a delete plate or something?
If you did, pics!
Edited by Mythstae, Nov 5 2013, 07:08 PM.
Offline Profile Quote Post Goto Top

MechaGodzilla
Member Avatar


Mythstae
Nov 5 2013, 04:59 PM
You can also see the cute little notch the gave you to put the speaker wires into, to plug in to the speaker from the back.
And, I think they are upside-down. :lol
I believe the two holes that are closer together go on the bottom.

So if you didn't have a stereo from the factory, did you have a delete plate or something?
If you did, pics!
No delete plate, just nothing. The wiring is there, but no mounting bracket and the door frame isn't quite flat, so you can't really just screw them in. They are cool for now.

Thanks for the pictures; now I know what to look for if I hit the pull-a-part. :thumb
Offline Profile Quote Post Goto Top

Mythstae
Member Avatar


MechaGodzilla
Nov 5 2013, 05:30 PM
Mythstae
Nov 5 2013, 04:59 PM
You can also see the cute little notch the gave you to put the speaker wires into, to plug in to the speaker from the back.
And, I think they are upside-down. :lol
I believe the two holes that are closer together go on the bottom.

So if you didn't have a stereo from the factory, did you have a delete plate or something?
If you did, pics!
No delete plate, just nothing. The wiring is there, but no mounting bracket and the door frame isn't quite flat, so you can't really just screw them in. They are cool for now.

Thanks for the pictures; now I know what to look for if I hit the pull-a-part. :thumb
If you get those from a yard, you will need to pry the little white things out from under them. If your car came with no sound system (mine didn't, either.) you will need to tear away the plastic door wrap (it's pre-perforated) insert the 4 screw inserts, screw the mount to the door, making sure to put the wire in the notch, and then plug the speaker in and screw the speaker to the mount. :thumb
Offline Profile Quote Post Goto Top

Metromightymouse
Member Avatar
Powdercoat Wizard

MechaGodzilla
Nov 5 2013, 05:30 PM
Mythstae
Nov 5 2013, 04:59 PM
You can also see the cute little notch the gave you to put the speaker wires into, to plug in to the speaker from the back.
And, I think they are upside-down. :lol
I believe the two holes that are closer together go on the bottom.

So if you didn't have a stereo from the factory, did you have a delete plate or something?
If you did, pics!
No delete plate, just nothing. The wiring is there, but no mounting bracket and the door frame isn't quite flat, so you can't really just screw them in. They are cool for now.

Thanks for the pictures; now I know what to look for if I hit the pull-a-part. :thumb
I believe the actual question was about what was where the stereo goes? A pic of the block off plate would be cool or was there just a hole?

MMM
Online Profile Quote Post Goto Top

Mythstae
Member Avatar


Metromightymouse
Nov 5 2013, 11:51 PM
MechaGodzilla
Nov 5 2013, 05:30 PM
Mythstae
Nov 5 2013, 04:59 PM
You can also see the cute little notch the gave you to put the speaker wires into, to plug in to the speaker from the back.
And, I think they are upside-down. :lol
I believe the two holes that are closer together go on the bottom.

So if you didn't have a stereo from the factory, did you have a delete plate or something?
If you did, pics!
No delete plate, just nothing. The wiring is there, but no mounting bracket and the door frame isn't quite flat, so you can't really just screw them in. They are cool for now.

Thanks for the pictures; now I know what to look for if I hit the pull-a-part. :thumb
I believe the actual question was about what was where the stereo goes? A pic of the block off plate would be cool or was there just a hole?

MMM
Correct, I meant was there a delete plate in the hole where the stereo goes, not in the locations where the speakers go.
Offline Profile Quote Post Goto Top

MechaGodzilla
Member Avatar


RE: Delete Plate- :smackface Sorry, I thought we were discussing speaker mounting... there was a blank in the dash. Just a big black plastic rectangle.

***First post edited to add a "Before" picture***
Edited by MechaGodzilla, Nov 6 2013, 09:06 AM.
