cigarette lighter; cigarette lighter assembly not working
Topic Started: Nov 18 2013, 08:08 PM (2,537 Views)
Julisa_91metro
New Member
[ *  * ]
hello everyone, i have been having issues with my cigarette lighter and was wondering if anyone can help me out.

so my cigarette lighter hasn't been working. i checked all the fuses and they were all fine, and the radio was working just fine. i have read on the forum that they are hooked up to the same fuse, i also read that some other posts on how they are connected so i went and looked for my self. i also took pictures cause im not sure if i would be able to explain it right, hopefully they help.

Posted Image

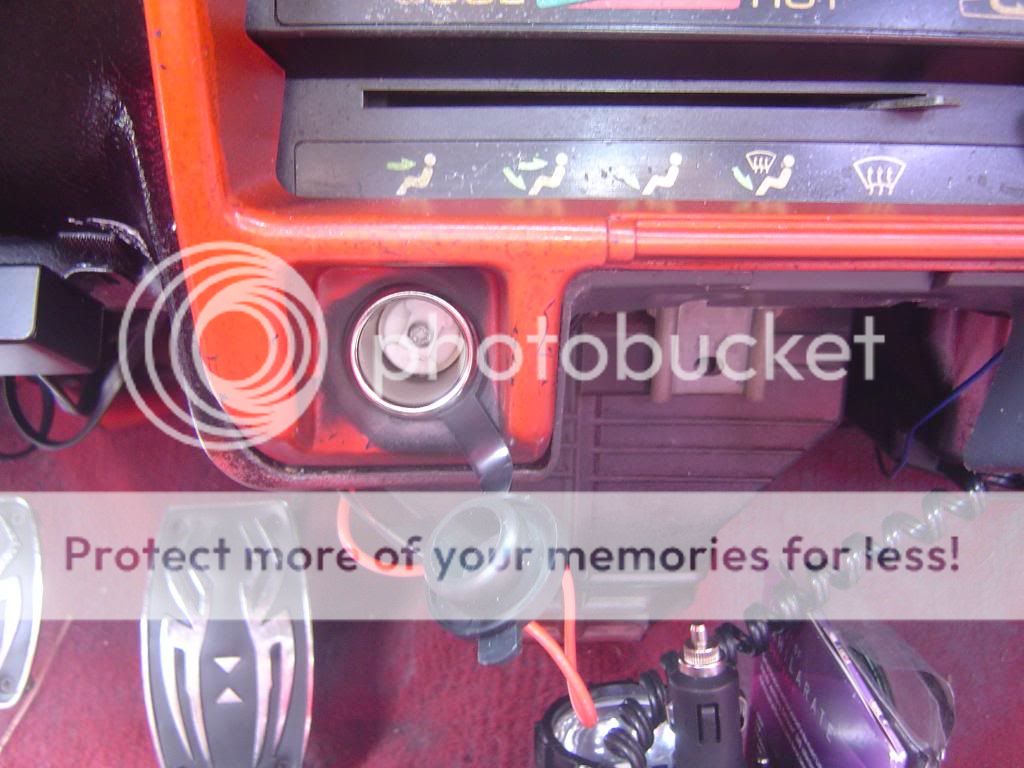

this is my cigarette lighter spot, the lighter piece is not in there in this picture

Posted Image

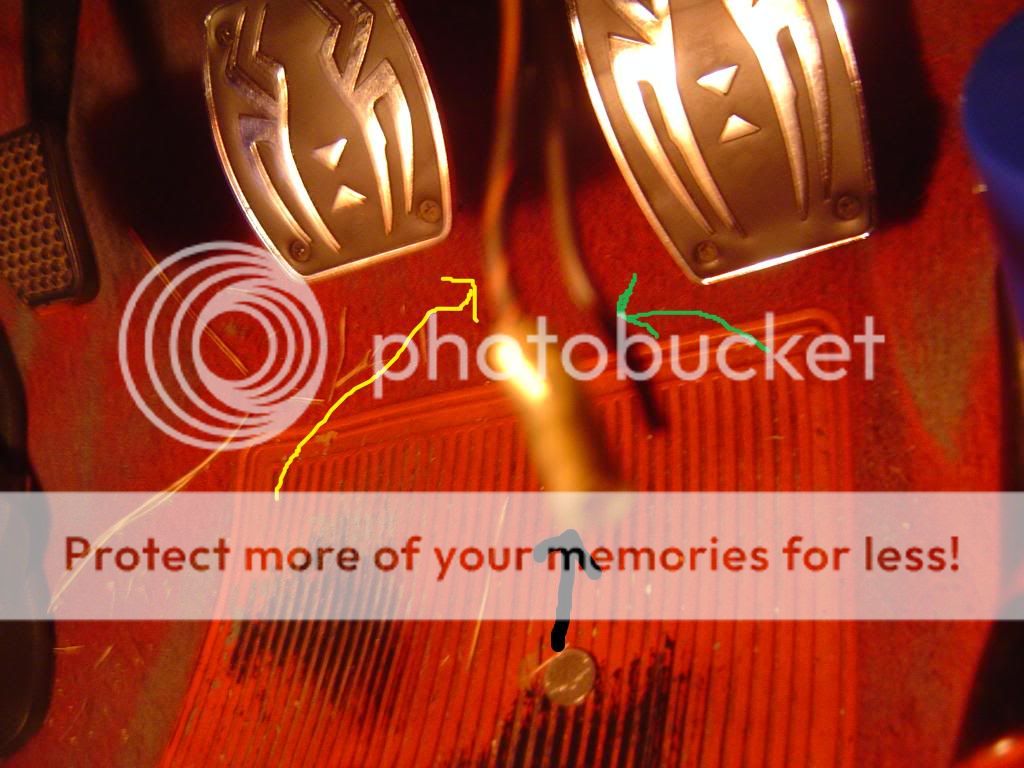

this is a picture of the cigarette lighter from behind where the cables are hooked up to. the green arrows are pointing to a plain black wire. the yellow arrows are pointing to a black wire with a red stripe on it and the red arrow is pointing to the piece that hooks up to the back of the cigarette lighter and is also hooked up to the red and black wire.

Posted Image
its not the clearest picture but this is one of the cables that are hooked up to the back of the cigarette lighter when i unplugged it. the arrows are pointing to the same things. the green is the plain black wire the yellow arrows is the red and black cable and the black arrow is pointing to the piece that was plugged in directly to the back of the cigarette lighter.
i only noticed that that the plain black wire was not plugged up to anything when i unplugged it. i will mention that i have had issues with the cable coming unplugged for a couple of years now and it has always worked after i plugged it back in. i never noticed the black cable, only the red and black wire. maybe somebody out there knows if this is the problem and where the cable is supposed to be hooked up to. (not sure if people can see this one it wont show up when i preview it)

i was also wondering if it were possible to replace that whole piece. i was looking around and i found these
http://www.walmart.com/ip/Custom-Accessories-12V-Lighted-Auto-Lighter/19853339
just in case the link doesn't work, this is a link to what looks like a cigarette lighter replacement from wal-mart that looks pretty cool

http://shop.advanceautoparts.com/webapp/wcs/stores/servlet/product_lighter-assembly--long-knob-dorman--help_22146434-p?searchTerm=cigarette+lighter+
this is another cigarette lighter replacement from advanced auto parts, they also had a few others
would either of these or anything similar work and if so how would i hook them up?

hope the pictures and explanations make sense, thanks in advanced fellas.


Edited by Julisa_91metro, Dec 10 2013, 02:25 PM.
Offline Profile Quote Post Goto Top

rmcelwee
Member Avatar


Check to see if you have 12V to the lighter. If so, most cars have a fusible link on the lighter (looks like a little piece of paper clip) and it might be burnt. If you don't have 12V at the lighter then you have a blown fuse or a bad ground.
Offline Profile Quote Post Goto Top

dayle1960
Member Avatar
Fastest Hampster EVER

The walmart lighter will work just fine.

http://geometroforum.com/topic/4287183/1/#new

This topic has a few pics of how I fixed my lighter with a walmart replacement. Hope it helps you.
Offline Profile Quote Post Goto Top

Julisa_91metro
New Member
[ *  * ]
thank you rmcelwee, i do have a multimeter but i haven't used it and i dont know how to use it. what exactly do i do with it.
dayle 1960 thanks for sharing that link it was very helpful. the pictures were really good and think this will help me a lot. time to get to work now. let you guys know when i get it fixed and ill post more pictures.
Offline Profile Quote Post Goto Top

CityConnection
Member Avatar
Sir, yes sir!

To test the lighter with a multimeter you need to set it for DC voltage and put the red probe on the center part at the bottom of the socket and the black probe along the side.
Offline Profile Quote Post Goto Top

Julisa_91metro
New Member
[ *  * ]
oh ok that sounds simple. thank you city connection. i appreciate your help cause i was so confused with the multimeter.
Offline Profile Quote Post Goto Top

rmcelwee
Member Avatar


OR, set to continuity (some meters beep as well) and see if the center and outside parts are connected. If so, the lighter is ok. Do this with the cables disconnected.
Offline Profile Quote Post Goto Top

Metromightymouse
Member Avatar
Powdercoat Wizard

:ermm: I may be misunderstanding what your saying, but wouldn't that indicate it was shorted?
Offline Profile Quote Post Goto Top

rmcelwee
Member Avatar


Metromightymouse
Nov 21 2013, 05:29 AM
:ermm: I may be misunderstanding what your saying, but wouldn't that indicate it was shorted?
After re-reading what I posted I may have been misunderstanding what I said!

Put the lighter in the socket (while it is in your hand, not connected to the harness) and check for continuity from one lug to the other. They should be able to see each other. If they do not there is a broken connection (possibly a fusible link). The lighter will have to be in the "heat mode" (pushed in, not popped out).
Offline Profile Quote Post Goto Top

Metromightymouse
Member Avatar
Powdercoat Wizard

rmcelwee
Nov 21 2013, 02:39 PM
Metromightymouse
Nov 21 2013, 05:29 AM
:ermm: I may be misunderstanding what your saying, but wouldn't that indicate it was shorted?
After re-reading what I posted I may have been misunderstanding what I said!

Put the lighter in the socket (while it is in your hand, not connected to the harness) and check for continuity from one lug to the other. They should be able to see each other. If they do not there is a broken connection (possibly a fusible link). The lighter will have to be in the "heat mode" (pushed in, not popped out).
:D Glad I caught that then.
Offline Profile Quote Post Goto Top

Woodie
Member Avatar


rmcelwee
Nov 21 2013, 02:39 PM
After re-reading what I posted I may have been misunderstanding what I said!
HAH! That's funny, right there.


Offline Profile Quote Post Goto Top

Julisa_91metro
New Member
[ *  * ]
hey guys, just thought i'd post an update on how everything went. i got it fixed and now it works perfectly. i got a new 12v socket assembly from Pep Boys for $10. it was so easy to install i can't believe i didn't get it fixed sooner. Got more pictures too.

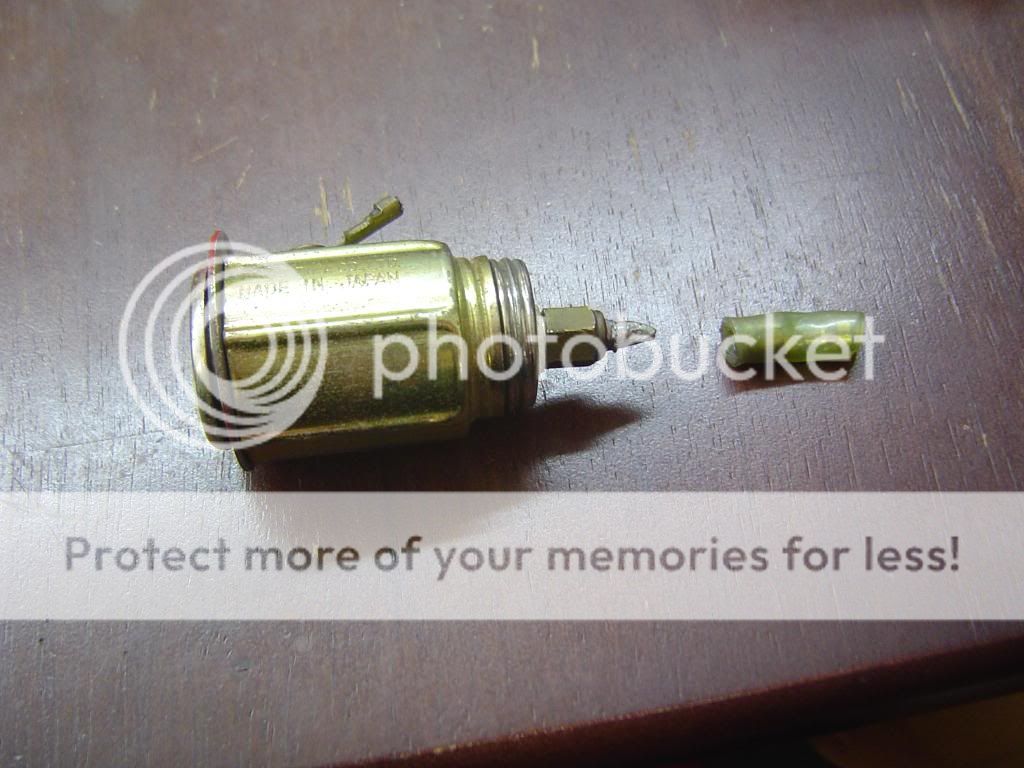

this is the old assembly, i thought it would be cool to take it apart
Posted Image
Posted Image

this is the new assembly
Posted Image
Posted Image
Posted Image


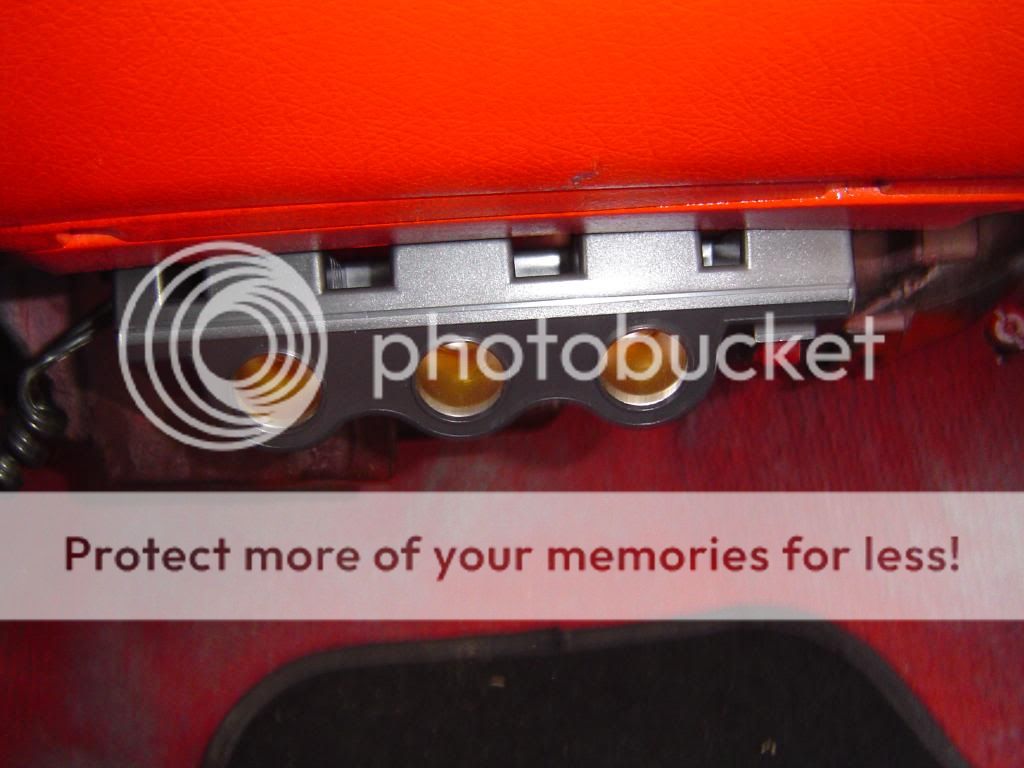

this is an extra set of sockets that i plugged into the main socket so that i can run multiple things at the same time i ever need to. it is placed under the glove box with velcro.
Posted Image

thanks again for the help everyone.
Edited by Julisa_91metro, Dec 10 2013, 02:21 PM.
Offline Profile Quote Post Goto Top

CityConnection
Member Avatar
Sir, yes sir!

Yarr. The pictures don't be workin'
Offline Profile Quote Post Goto Top

Julisa_91metro
New Member
[ *  * ]
sorry i was having a bit of trouble figuring out how to get the pictures to show up. think i got it now.
Offline Profile Quote Post Goto Top
