is anything noticeably wrong in these photos?
Topic Started: Jan 2 2014, 05:19 PM (2,721 Views)
Rowbear
Member Avatar

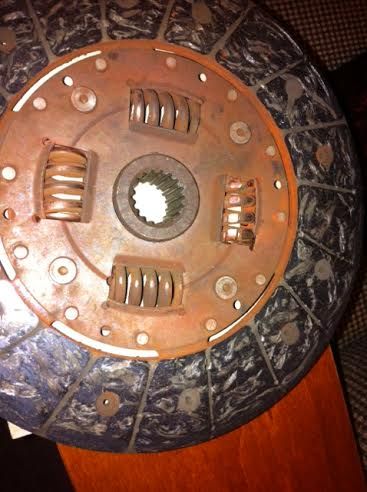

what about here? The springs seem a bit beat up to me. You'll notice that one has some crazy flat spot running across it, then the other two show that the flanges around the spring are broken in some places. One of the springs (the shiniest one) spins around much more easily than the other 3.

The spring at 3 o'clock here has the flat spot running across the coils.
Posted Image

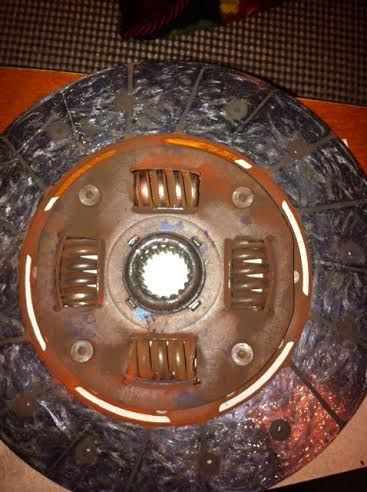

springs at 12 and 6 have pieces broken off the flanges
Posted Image

7 o'clock spring here shows a close up of how it is broken
Posted Image
Offline Profile Quote Post Goto Top

BobJ
Elite Member
[ *  *  *  *  * ]
Have seen that before. Not right but wouldn't be cause of complete failure. The springs are for cushioning engagement.

For clutch to slip that bad it would have to be something like completely worn out disc, (measure it?) oil on friction pads, pressure plate bad(no clamping force), broken clutch hub, linkage hanging up affecting engagement etc. Something that prevents disc from gripping flywheel and/or pressure plate.
Offline Profile Quote Post Goto Top

BobJ
Elite Member
[ *  *  *  *  * ]
Davegran posted these specs in another thread.

Once the clutch friction disc is out, sitting in front of you, it is very easy to tell how much it is worn. The depth from the surface of the disc down to the rivets starts out at .050" brand new; the recommended minimum depth for deciding to replace is .020", a .030" tolerance. So, when the depth is, for example, .035" your clutch is 50% worn.
Offline Profile Quote Post Goto Top

Rowbear
Member Avatar


It seemed like the clutch was gripping just fine but wouldn't totally release
Offline Profile Quote Post Goto Top

00Metro
Member Avatar


Yup, flat spring was dragging against flywheel. That would fit your description of still being in gear. I had mine do that with less than 15k miles on it.
Offline Profile Quote Post Goto Top

Rowbear
Member Avatar


that's actually a relief to hear. Thanks. I've noticed the new sachs clutch I bought has a spring inside a spring in those 4 spots so hopefully that somehow keeps it from happening so easily and please dont tell me yours was a sachs clutch 00metro :)
Offline Profile Quote Post Goto Top

Rowbear
Member Avatar


whelp, looks like I've got another picture to show and a few more questions. First, this was wedged sort of behind the lower arm of my T.O. bearing
Posted Image

it's now a mangled metal sleeve. What is it? Where does it go and is this what was keeping my clutch from fully disengaging?

2nd question: I saw how JM made that ladyfinger type tool to get the bearing out of the flywheel, I don't have the tools to do that so, how in the shit do I get that thing out of there? I tried prying a bit with a screw driver, being careful not to gouge the inside cause I'm thinking the rear main seal is back there. I also tried the short end of an allen key but that bearing did not budge. What else should I try?
Edited by Rowbear, Jan 8 2014, 06:01 PM.
Offline Profile Quote Post Goto Top

t3ragtop
Member Avatar
Turbo3 and Twincam Tweaker

dayle1960
Jan 2 2014, 10:19 PM
Second, get a grinder and a 60 grit sanding paper disk. Hit the flywheel with it and get those things scored. Your clutch will like you for it.
in what automotive world is this valid information? :O

find a local joint and clutch repair shop and have your flywheel serviced. it needs surface grinding and zero balancing.

the fingers on the pressure plate have been worn by the throwout bearing. toss the pressure plate and throwout bearing. replace with new parts.

the labor involved is more costly than parts. i never split the power unit without replacing everything on my own cars. you can buy a complete kit on ebay for $80 shipped (the type i used on my white gt.)
Posted Image
Posted Image

this is the finish that you want on the flywheel's friction surface.
Posted Image
Posted Image

Offline Profile Quote Post Goto Top

Old Man


Rowbear
Jan 8 2014, 05:58 PM
I saw how JM made that ladyfinger type tool to get the bearing out of the flywheel, I don't have the tools to do that so, how in the shit do I get that thing out of there? I tried prying a bit with a screw driver, . What else should I try?
remove the fly wheel and push it out
Offline Profile Quote Post Goto Top

Rowbear
Member Avatar


This is making me wish I had an impact wrench
Offline Profile Quote Post Goto Top

Memphis metro


t3ragtop
Jan 8 2014, 06:41 PM
in what automotive world is this valid information? :O

Just put a clutch in my wifes ride not long ago and decided to see what the book said while I was doing it. Here is what it said. As for going to town with a grinder, I would likely shy away from that.

Posted Image
Offline Profile Quote Post Goto Top

t3ragtop
Member Avatar
Turbo3 and Twincam Tweaker

rhino, he was talking grinder, 60 grit paper, and scoring.

you want a flywheel to be flat, first of all, and blanchard ground which leaves a lightly machined swirl finish.

if i see that a flywheel doesn't have a badly burned and fairly smooth surface (checking with a straight edge and feeler gauges) i can understand a quick hit with 160 to 200 grit paper to clean up the surface followed by degreasing.

when i see a flywheel that has burn marks that indicate high spots, a step worn in the friction surface, or grooves from rivets, i have them serviced.

i've tried a number of surface preparations, too. i've used bead blasting, a special vapor blaster that used grit in a solvent carrier, and medium grit paper as a clean up but any machinist would question using a handheld grinder or anything else to burr up a flywheel.

a flywheel doesn't need to be rough or scored. it does need to have a very even machine finish that will allow the friction disc to "bed" in.
Offline Profile Quote Post Goto Top

Rowbear
Member Avatar


Can anyone tell me what that metal piece is in the picture above, the mangled sleeve? Anything like that on the input shaft?
Offline Profile Quote Post Goto Top

t3ragtop
Member Avatar
Turbo3 and Twincam Tweaker

it's hard to get a sense of scale from your picture but it looks like an alignment sleeve from the transmission case that has been mangled.
Offline Profile Quote Post Goto Top

Memphis metro


Yeah it is hard to make out but to me it looked like one of those clips you clip on sheet metal so you can put a screw in it.
Offline Profile Quote Post Goto Top
