is anything noticeably wrong in these photos?
Topic Started: Jan 2 2014, 05:19 PM (2,720 Views)
Rowbear
Member Avatar

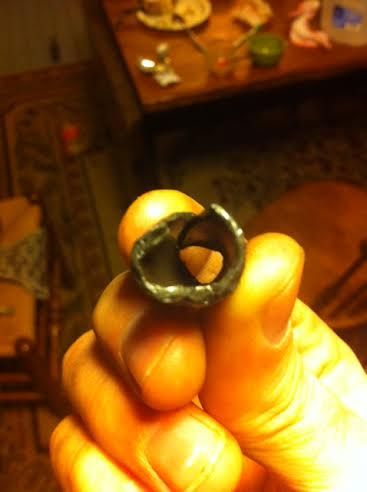

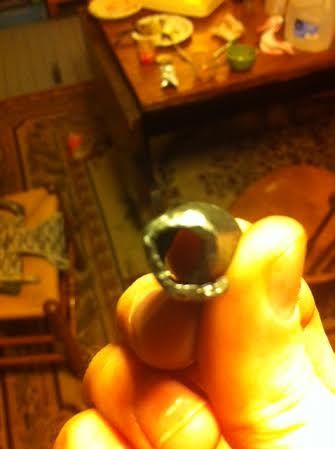

two more photos with a little scale

Posted ImagePosted Image
Offline Profile Quote Post Goto Top

Memphis metro


Plain to see now it is not a clip.
Offline Profile Quote Post Goto Top

David95237


Are you missing one of your alignment sleves? Kinda looks like one.
Edited by David95237, Jan 9 2014, 07:02 PM.
Offline Profile Quote Post Goto Top

Rowbear
Member Avatar


Not sure. Are they on the input shaft or where? Is there more than one?
Offline Profile Quote Post Goto Top

David95237


Theri is 4 bolts that bolt the trans to the motor 2 of them have alignment sleves, and the starter has two.
Offline Profile Quote Post Goto Top

bbowens
Member Avatar


you can use an Aveo flywheel holder tool, DT-47562, to fix the flywheel in place to remove the bolts if you don't have an impact driver. The Aveo tool is the same as the one for the Geo, but they're cheaper, for some reason. This is what I just did.

Here's one for $11.97: http://www.ebay.com/itm/280530351897
Offline Profile Quote Post Goto Top

Rowbear
Member Avatar


Nice Work David. I just did a quick check and only see 3 alignment sleeves so I think you're right.

Thanks for tip on the flywheel tool BBowens
Offline Profile Quote Post Goto Top

Rowbear
Member Avatar


just to be sure, the TO bearing doesn't have anything securing it to the clutch fork on the bottom right? It just kind of rests on that shoulder while the top has the slot?
Offline Profile Quote Post Goto Top

David95237


Correct, Make sure you get another sleeve before you put it back in, or you will wear the pilot bearing out.
Offline Profile Quote Post Goto Top

Rowbear
Member Avatar


uh oh, really? I don't understand why it wouldn't be fine once it's all bolted up. Surely it couldn't move around. I'm thinking they might be hard to find. Too bad my step dad gave away the spare engine and transmission I left in his airplane hanger
Edited by Rowbear, Jan 11 2014, 05:08 PM.
Offline Profile Quote Post Goto Top

Rowbear
Member Avatar


grrr, why can't I get the starter bolted back on? I don't remember it being a problem in the past but now I'm having big problems getting it in line for the two bolts. I must have done something wrong.

nevermind, I got it, that took about 3 hours longer than it should have
Edited by Rowbear, Jan 13 2014, 12:24 PM.
Offline Profile Quote Post Goto Top

Murf 59
Member Avatar


David95237
Jan 9 2014, 07:02 PM
Are you missing one of your alignment sleves? Kinda looks like one.
It is an alignment dowel. It must be in there! There should be 2 for the bell housing, and 2 for the starter.
Offline Profile Quote Post Goto Top

Rowbear
Member Avatar


sorry, no one responded in time to convince me that I needed it and that doesn't seem like a part that would be easy to track down so I bolted the transmission back up with only 3 alignment dowels. The car ran fine for 2 1/2 years with only 3 of them, until the 4th (that was somehow in the bell housing got caught behind the TO bearing.

Guess I'll be the case study in what happens when you only have 3 alignment dowels instead of 4
Offline Profile Quote Post Goto Top

patrickbruce
Member Avatar
average teenage gearhead

Did you have a shim between the starter and trans? You might have it flipped... It only goes on one way
Offline Profile Quote Post Goto Top

Rowbear
Member Avatar


yeah, I have a shim, I let it rest on the alignment dowels first but did have to flip it around to get it on the right way. I think the wires to the starter were giving me too much resistance, but I got it sorted out. It's on snuggly now
Offline Profile Quote Post Goto Top
