LED Volt Meter; Dash Install
Topic Started: Feb 19 2014, 04:12 PM (1,331 Views)
snowfish
Member Avatar
Basic GearHead

Remember these?

Posted Image

http://www.ebay.com/itm/141049350659?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1497.l2648

I picked up, a couple, and decided to do a dash install on my 91 IceBlue Xfi Sport.

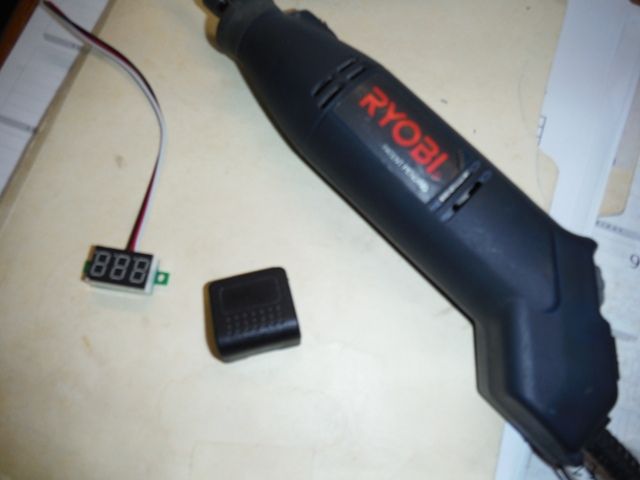

Tools needed.

Posted Image

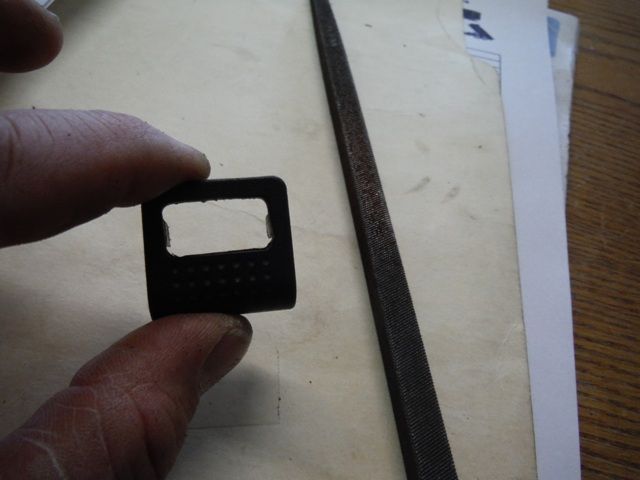

Trim and file an opening in the dash knock out.

Posted Image

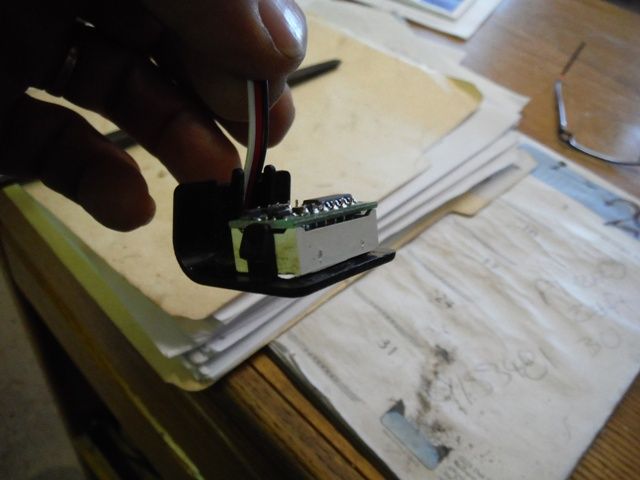

Trim the LED meter tabs and super glue in.

Posted Image

Posted Image

The knock out locking tabs have to be filed down, inside and out, a little. It's a pretty snug fit.

Some window tint will help tone down the display for night driving.

Posted Image

The tint should be applied Before the meter is installed into the knock out. :smackface Mine was installed after. :shake

Posted Image

Some wrinkles, but not as bad, as the camera shows, in person.

Posted Image

Just some fun with a little dashboard Bling. :cheers
Edited by snowfish, Feb 19 2014, 04:13 PM.
Offline Profile Quote Post Goto Top

Mythstae
Member Avatar


That looks very nice installed like that, snowfish! :thumb
Online Profile Quote Post Goto Top

geogonfa
Member Avatar


Now that is neat...
Online Profile Quote Post Goto Top

gbreadman
Member Avatar
Tinkerer

More epic win for GMF.
Offline Profile Quote Post Goto Top

idmetro
Member Avatar


I LIKE it!
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

Very nice. Can you actually see that thing while you're driving, or do you have to crane a bit?
Quote Post Goto Top

t3ragtop
Member Avatar
Turbo3 and Twincam Tweaker

snowfish, that was exactly what i was doing.

i ordered 3 red and 3 green and did a green voltmeter in the same insert you used for my mk2 red vert. i've been scrabbling around in my junk to find a mk3 instrument cluster bezel to work up one for my gt.

where will you make your wiring connections? i'm thinking that i'll use the cigarette lighter for the hot wire. it's key switched on my gt. there's switched and unswitched power as well as a ground on the radio connector for the mk2 and mk3.

yours looks great. you must have gotten bored with riding the snowmobile. :P
Offline Profile Quote Post Goto Top

Memphis metro


You could wire in a small toggle or push button to turn it on and off if so desired. It appears there is a voltage drop at the cigar lighter and not an accurate assessment of the charging rate.
Offline Profile Quote Post Goto Top

McZukee
Member Avatar
Protagonist

:rocker Brilliant! I just ordered one for myself.

Thanks for sharing.
Offline Profile Quote Post Goto Top

bikeAmusPrime
Member Avatar


I was gonna do the same. But I was goint to do one wth actual temp.
Offline Profile Quote Post Goto Top

McZukee
Member Avatar
Protagonist

bikeAmusPrime
Feb 19 2014, 10:29 PM
I was gonna do the same. But I was goint to do one wth actual temp.
:popcorn
Offline Profile Quote Post Goto Top

snowfish
Member Avatar
Basic GearHead

Thanks. :thumb It's easily visible while driving. :drivin Not bored with snowmobiling. :shake Just really slow at work. :tumbleweed The connection was made at the cigar lighter. Very easy source to tap into. :gamerz

Voltage drop? :news The 12.5v is key on, engine off, and four Glow Shift Gauges lit. Fire it up and we're at 13.5 -14v +/- depending upon if the headlights, heater, etc are on or not. Don't really need more accuracy than that. :-/

The temperature intrigues me. :hmm I do have another gauge. :hmm And plenty more knock out placements. ^o) Please share, with pictures, when you get that dialed in. :popcorn
