California Metro with code P420; Which Catalytic convertor ??
Topic Started: Mar 12 2014, 03:30 PM (437 Views)
markoznz
Fresh Fish
[ * ]
I am new to this forum, I am glad of the existance of this forum. A lot of helpful info.

Iwas seeking information about these but couldn't find it.

I have a Geo Metro with Code p420, as I read in this forum it needs a new catalytic converter. But because is a California Metro, I believe it has 2. One, just below the manifold and the second below the car. Which one should I replace???

Thanks for any help!! Smog Check Due next week :scared
Offline Profile Quote Post Goto Top

David95237


3 or 4 cylinder?
Offline Profile Quote Post Goto Top

fireflyin


they will have a resonator and cat the p420 code is to do with catalytic converter only once its plugged the sensor senses that and gives u a CEL
Offline Profile Quote Post Goto Top

David95237


California cars have two cats.
Offline Profile Quote Post Goto Top

00Metro
Member Avatar

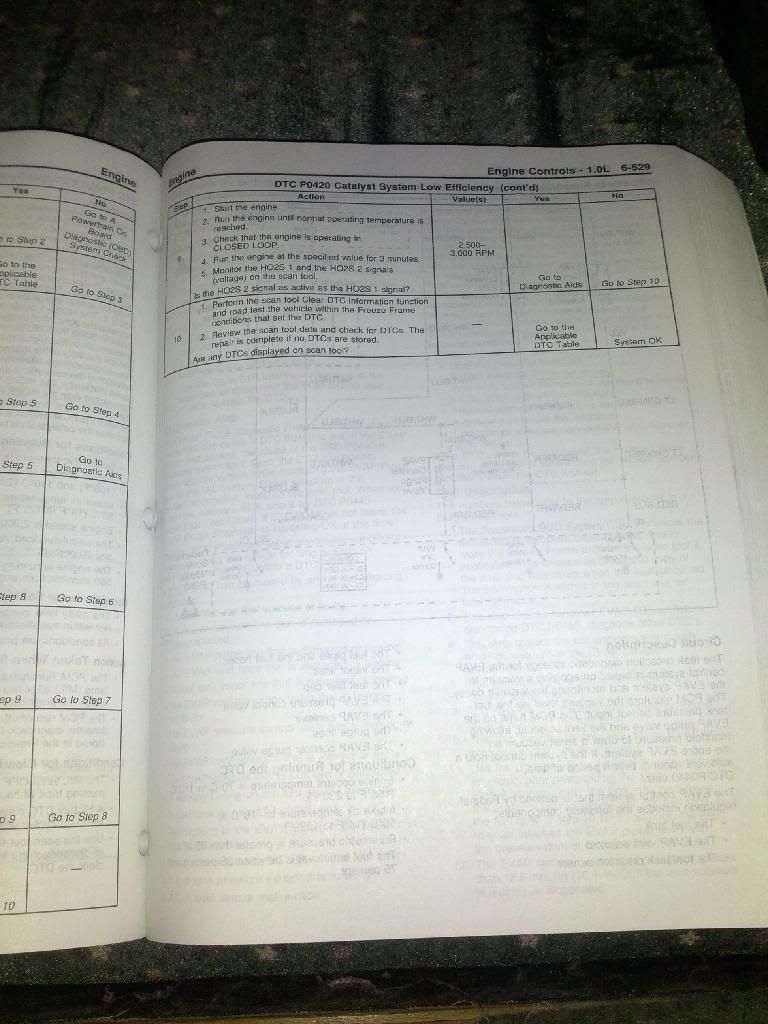

Here is a camera shot of the FSM on P0420. If you need it bigger, just ask, I can get better copy and email it to you.

Posted Image


Posted Image


Posted Image

Hope this helps!

PS if its the 4 cyl I can get that too :)
Offline Profile Quote Post Goto Top

Woodie
Member Avatar


Probably the first one, the one built into the exhaust manifold.

Depends upon where exactly your second O2 sensor is mounted. I thought I had a parts book page for California exhaust, but now I cant find it. If the rear O2 sensor plugs into the exhaust between the two cats, then it's definitely the front one that is bad. If the rear O2 sensor is behind the second cat, then it's measuring the effect of both and you might be able to get away with just replacing the rear one, much less expensive.
Offline Profile Quote Post Goto Top
