Kim & Jims Convertible; 1992 from Minnesota with Love
Topic Started: Jun 30 2014, 03:38 PM (3,345 Views)
snowfish
Member Avatar
Basic GearHead

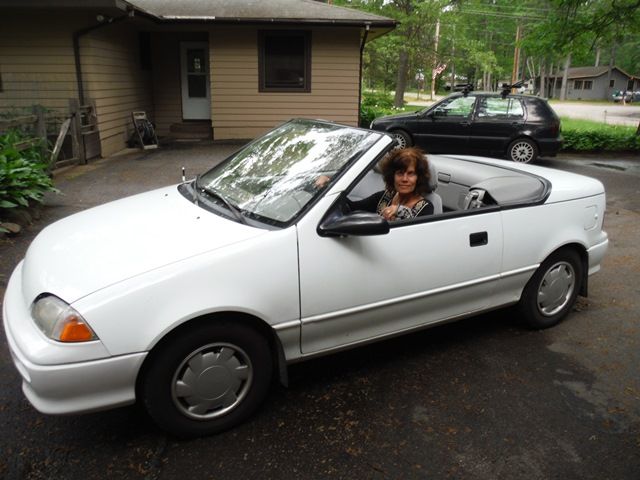

My neighbors, Kim & Jim, picked up this 1992 convertible a couple weeks back.

Posted Image

Posted Image

They Love it! :wub: Cruises surprisingly well for 146,000 miles. :drivin The 4,000rpms(automatic), at 60mph, is not going to break any mpg records. But still light years better than the ol' 300M. It's more of the smiles per miles at this point.

Finally had a chance to give it a little look over.

Posted Image

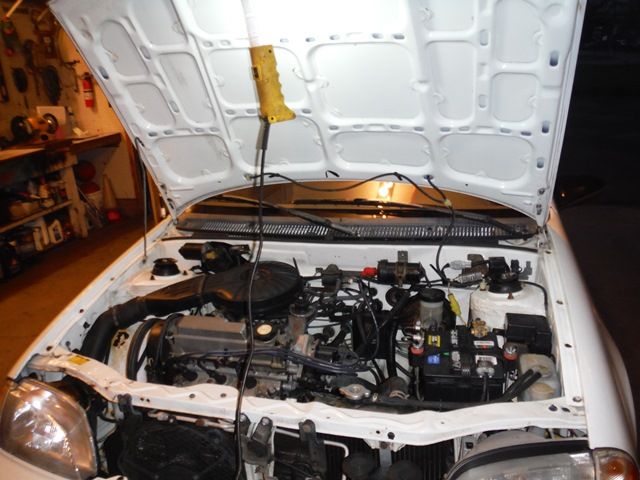

Engine bay looks pretty good for a Minnesota car.

Posted Image

Nice clean spark plugs.

Posted Image

Compression is 185, 55, 165. :smackface Then why are the plugs so clean? :hmm Doesn't matter. :shake We know there's work to be done. :gamerz I'm amazed at how well it cruises at highway speeds on basically 2 cylinders. :hmm

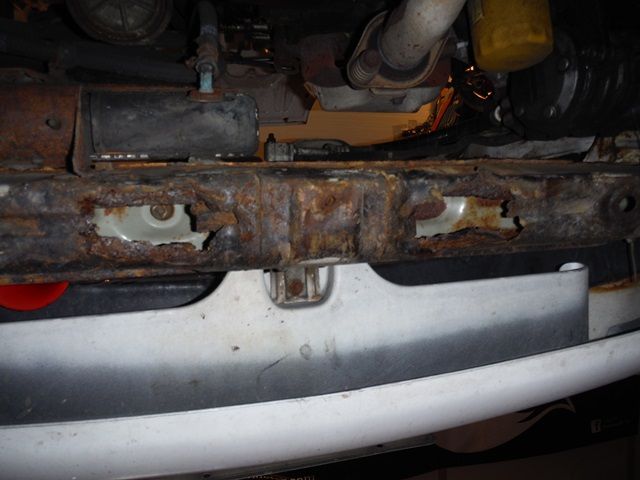

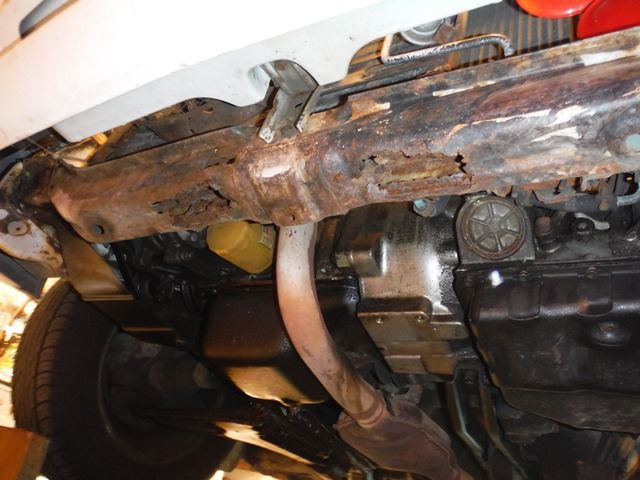

I'm not liking this lower radiator support. :'(

Posted Image

Posted Image

Could be the reason for the headlights not quit aligned.

Posted Image

There's also evidence of shenanigans, going on, in the front as well. :coffee Washers stacked up here, holes drilled there, this bent, that bent, etc. :( Looks like the whole front end is coming off. :gamerz

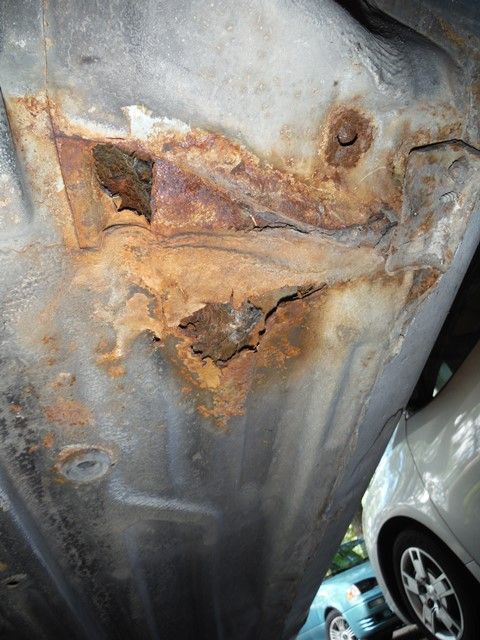

One hole in the floor pan. :shake

Posted Image

We know there will be more compromised material as we dig deeper. ^o)

There appears to be a sizable amount of body filler along the rockers. :news I could ice pick through a bunch of places along where the rocker meets the floor pan. :gamerz But 99% of the floor pans are solid. :thumb

Both front & rear control arm mounts a rock solid. :) This will get a Turbine Tech frame brace regardless. :deal

Next step will be to pull the carpet and see exactly what we're in for. :news And decide what "level" of engine refresh, or build, they are up for. :hmm
Offline Profile Quote Post Goto Top

PA.metro,fixer,frames,ect
Frame Fixer

what a great neighbor you are, wish you lived by me we could split the work between us
Offline Profile Quote Post Goto Top

snowfish
Member Avatar
Basic GearHead

Thanks and Amen! :thumb I know this will be more surgery than they expect. :gamerz No super bad, but more than meets the eye. :news I'm breaking it to them easy. ;)
I coined a phrase, "The magnitude, of the task, is rarely comprehended by the requester". :hmm

We're taking this a little at a time since they're only about 2 blocks away. :tumbleweed
Offline Profile Quote Post Goto Top

Mythstae
Member Avatar


snowfish
Jun 30 2014, 03:38 PM
I'm not liking this lower radiator support. :'(

Posted Image

Posted Image
PM me if you end up needing a rust-free donor piece... I do not own a sawzall, but I just found out recently that my Mom does... (how did I not know this?! :smackface )
I am possibly the slowest shipper in existence, but, maybe I can farm out the shipping work to MMM, he's great at it... :hmm

Anyway, food for thought. I can make a parts run, if you need me to. ^o)
Offline Profile Quote Post Goto Top

brsja
Member Avatar


Or you could drill out the spot welds?
Offline Profile Quote Post Goto Top

Mythstae
Member Avatar


brsja
Jun 30 2014, 05:20 PM
Or you could drill out the spot welds?
I did that last time! Took fo-EVA. MMM claims with a sawzall it would take waaaaaaaaay less time. I've never sawzalled anything, so I wouldn't know - but it HAS to be faster than drilling out all the welds! :scared There are a LOT of them!
Offline Profile Quote Post Goto Top

snowfish
Member Avatar
Basic GearHead

We would definitely go for an un-salted, straight lower radiator support. :thumb And yeah, drilling the spot welds is quite a process. :gamerz

The frame would need to be cut so I could drill out the spot welds later. Remember my saying, "The magnitude, of the task, is rarely comprehended by the requester"? This time the Offer-er may not comprehend the magnitude of the task. :lol

But it's you Mythstae! ;) You can do Anything. :rocker I would be honored if you could get a lower radiator support. :bacon
Offline Profile Quote Post Goto Top

Memphis metro


Maybe your compression gauge was not sealing well on that cylinder. Better check it good and know for sure that cylinders compression is low. Use another guage.
Offline Profile Quote Post Goto Top

Mythstae
Member Avatar


snowfish
Jun 30 2014, 06:41 PM
We would definitely go for an un-salted, straight lower radiator support. :thumb And yeah, drilling the spot welds is quite a process. :gamerz

The frame would need to be cut so I could drill out the spot welds later. Remember my saying, "The magnitude, of the task, is rarely comprehended by the requester"? This time the Offer-er may not comprehend the magnitude of the task. :lol

But it's you Mythstae! ;) You can do Anything. :rocker I would be honored if you could get a lower radiator support. :bacon
Whatcha mean? I mean, I know you gotta take off the bumper. Maybe some fenders. No big deal. Then fire up the sawzall! :D
Offline Profile Quote Post Goto Top

1DCGUY
Member Avatar
Don't be a "Richard"

Big Rhino
Jun 30 2014, 07:57 PM
Maybe your compression gauge was not sealing well on that cylinder. Better check it good and know for sure that cylinders compression is low. Use another guage.
C'mon Rhino, are you suggesting the Snowfish doesn't know how to use a compression gauge, or he didn't try it several times to make sure he didn't make a mistake.

I have to admit, I would probably ask the same question of somebody that just signed up for the forum, but Snowfish??

Really??? :ermm:
Offline Profile Quote Post Goto Top

Memphis metro


Things happen. Does not matter who you are. I would check and recheck before I tore into a engine.
Offline Profile Quote Post Goto Top

snowfish
Member Avatar
Basic GearHead

We didn't need a compression gauge to know it had a burnt valve. :shake
http://geometroforum.com/single/?p=912320&t=5511385
It was more of a "drill" to see where the other cylinders were at. :thumb
Quote:

No big deal.......fire up the sawzall!

Thanks Melanie! :wub: Let me know what you need. :)
Offline Profile Quote Post Goto Top

snowfish
Member Avatar
Basic GearHead

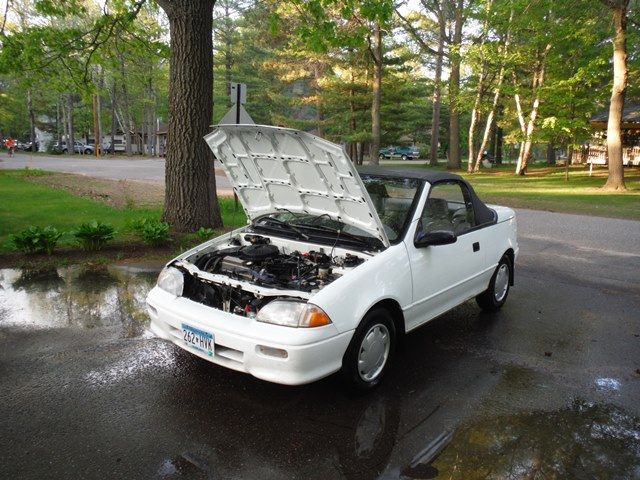

I dug into Kim & Jim's convertible yesterday & today. First a decent power wash. I think I'm becoming allergic to grease! :lol

Posted Image

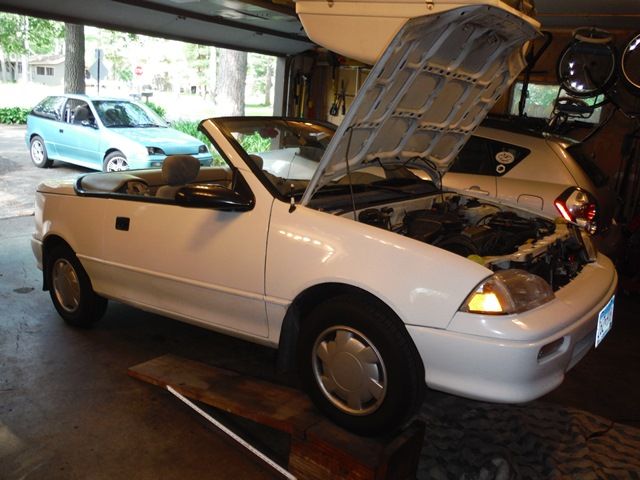

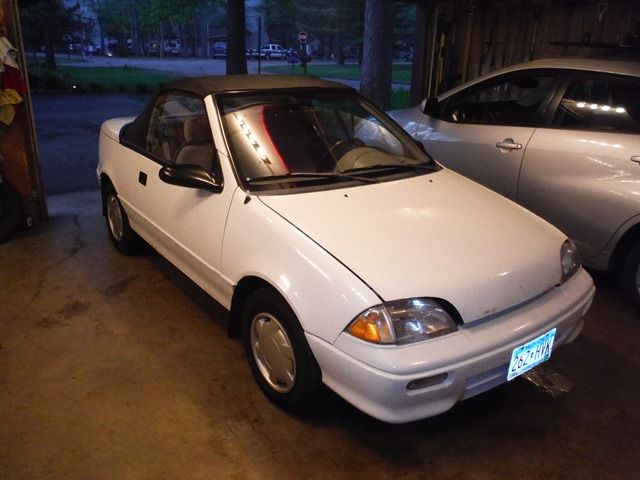

Cleaned up pretty good. Then into the garage.

Posted Image

First time swapping engines on an automatic. Had to study things a bit. :news

Posted Image

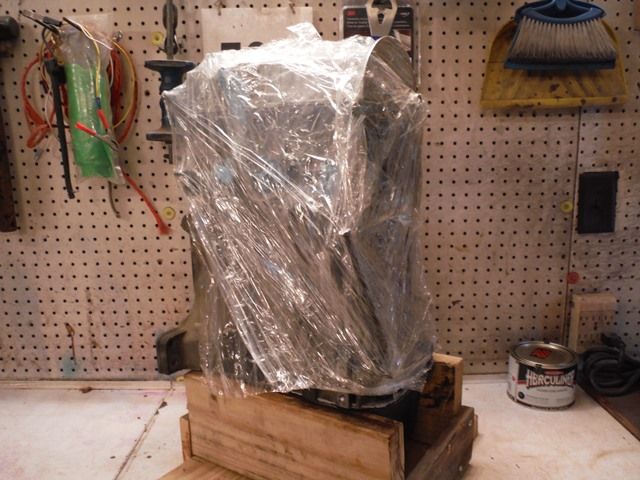

This JDM has been waiting since March. :smackface

Posted Image

Flex plate access.

Posted Image

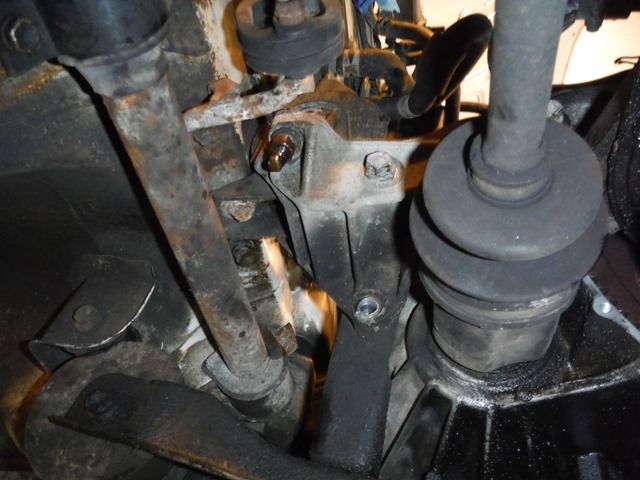

The rear mount is hilarious! :'( Took awhile to figure that one out. :hmm

Posted Image

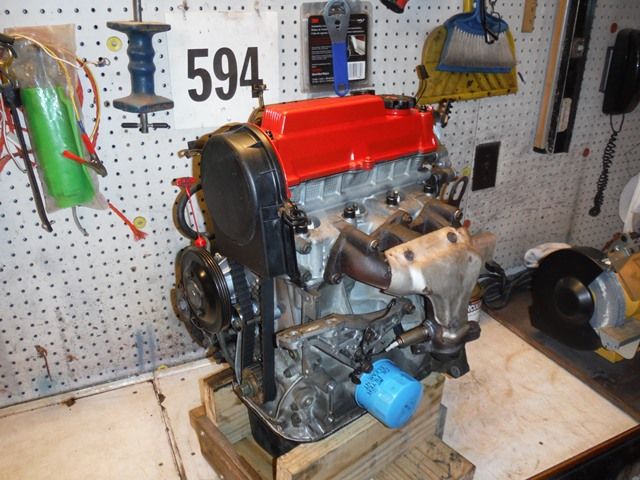

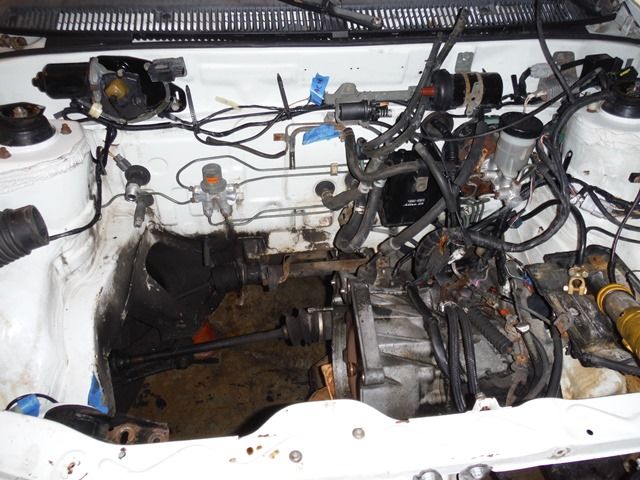

Got the engine pulled. :thumb Now time to move parts around.

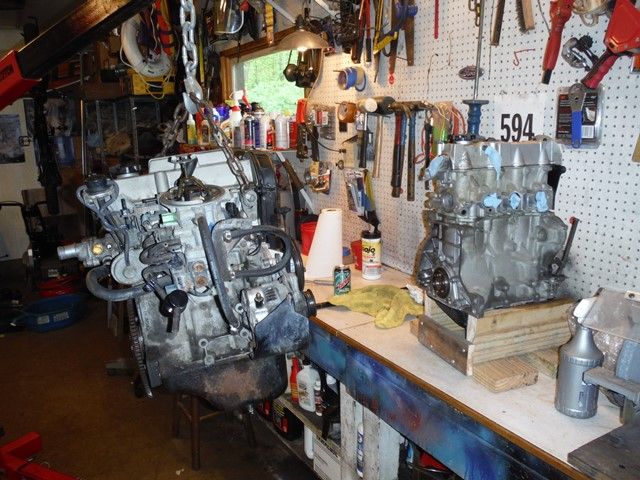

Posted Image

Posted Image

Got most of it done. :gamerz Still need to replace some hoses. Some are pretty soft. :shake

Posted Image

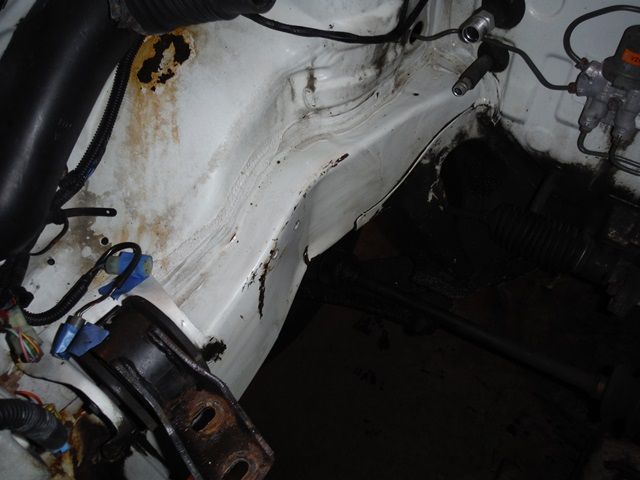

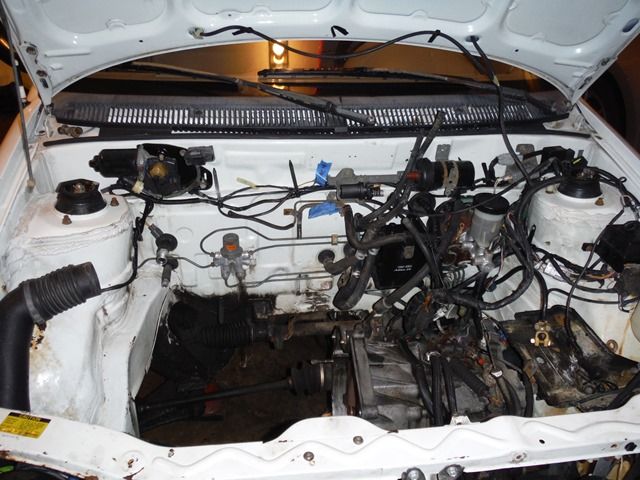

This poor car has been slapped around a bit. I noticed a decent crease in the passenger side frame.

Posted Image

Posted Image

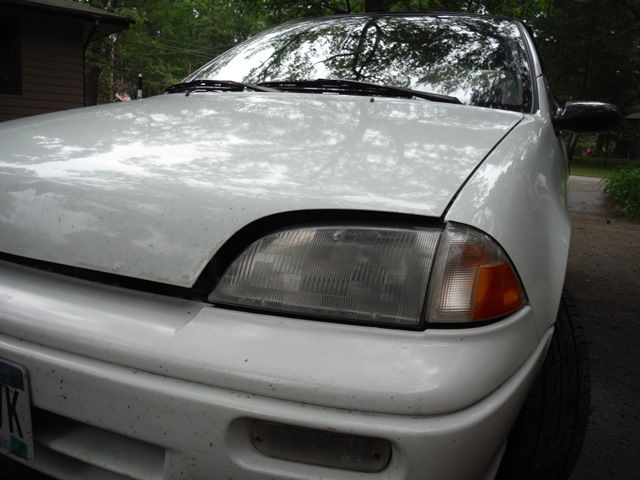

This explains the larger than normal gap between the headlights & hood. For now, it's just the way it's going to be. ^o)

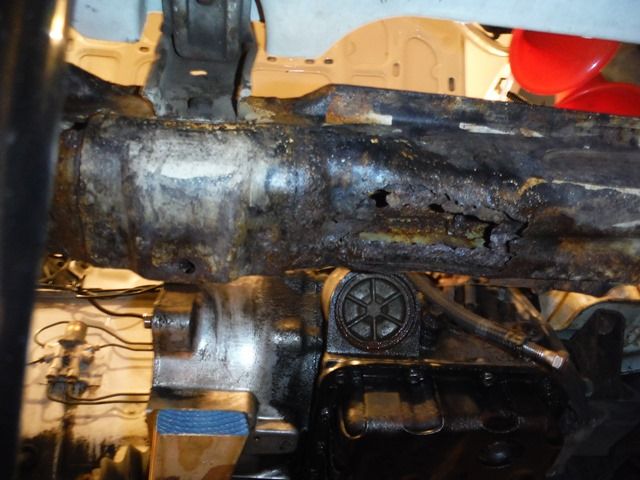

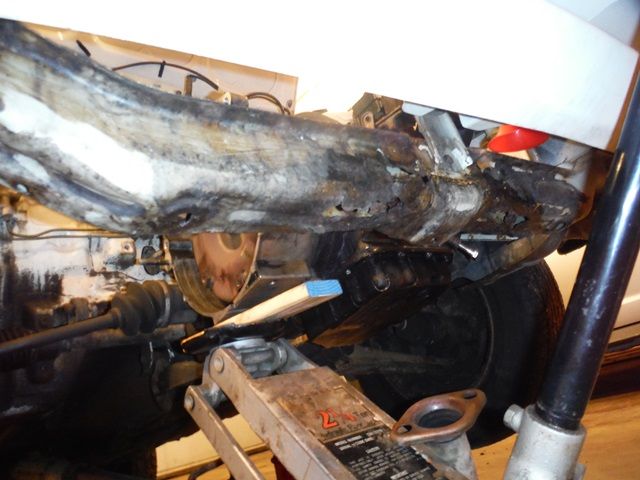

I do need to address the lower radiator support.

Posted Image

Posted Image

Would be nice to have a rust free one. ^o) But this one will get some welding to re-enforce it. :gamerz Won't be pretty, but it should be functional. :thumb Hope to update more later. :cheers

Offline Profile Quote Post Goto Top

Mythstae
Member Avatar


Ugh, I really dropped the ball on this one, didn't I? :smackface
Offline Profile Quote Post Goto Top

calrenman
Just another wrench.

Wow. Snowfish you rock. That rust you all deal with must be a pain! Nice looking car.

:popcorn
Offline Profile Quote Post Goto Top
