"93 wiring trivia
Topic Started: Jul 28 2014, 07:03 PM (628 Views)
evmetro


Ok, so I am getting ready to do the wiring hysterectomy on the wiring harness for the EV conversion. Basically, I want to remove anything from the factory harness that is related to the gasoline engine, and leave only the lighting, wipers, and horn.

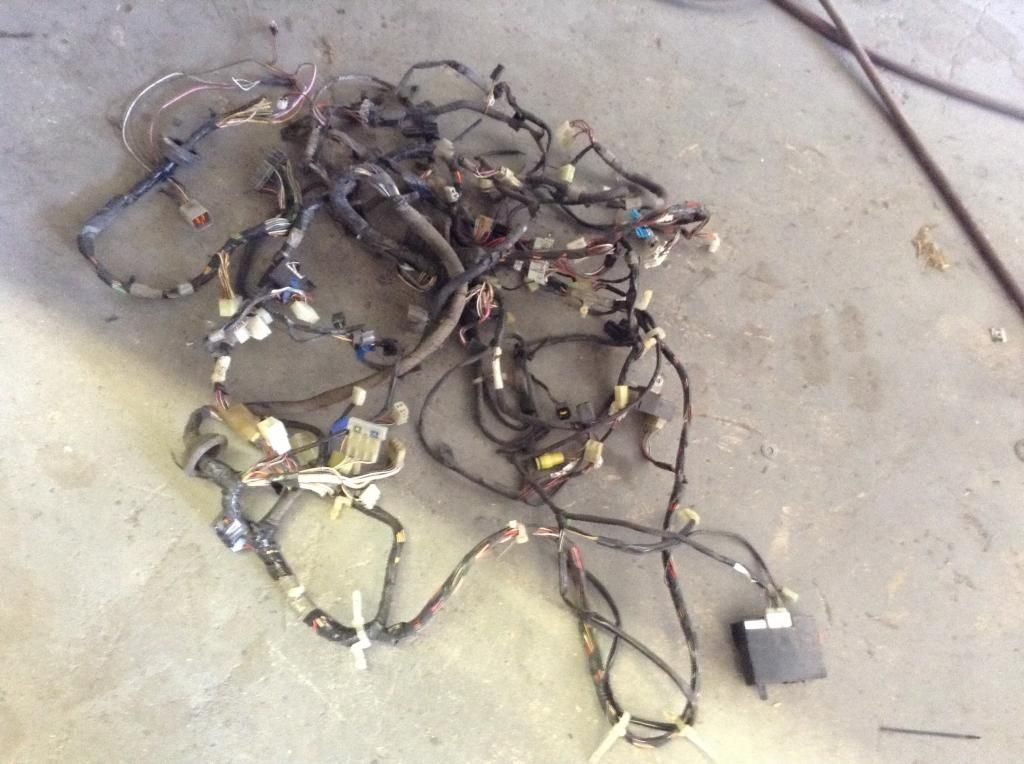

Here is the harness:

Posted Image

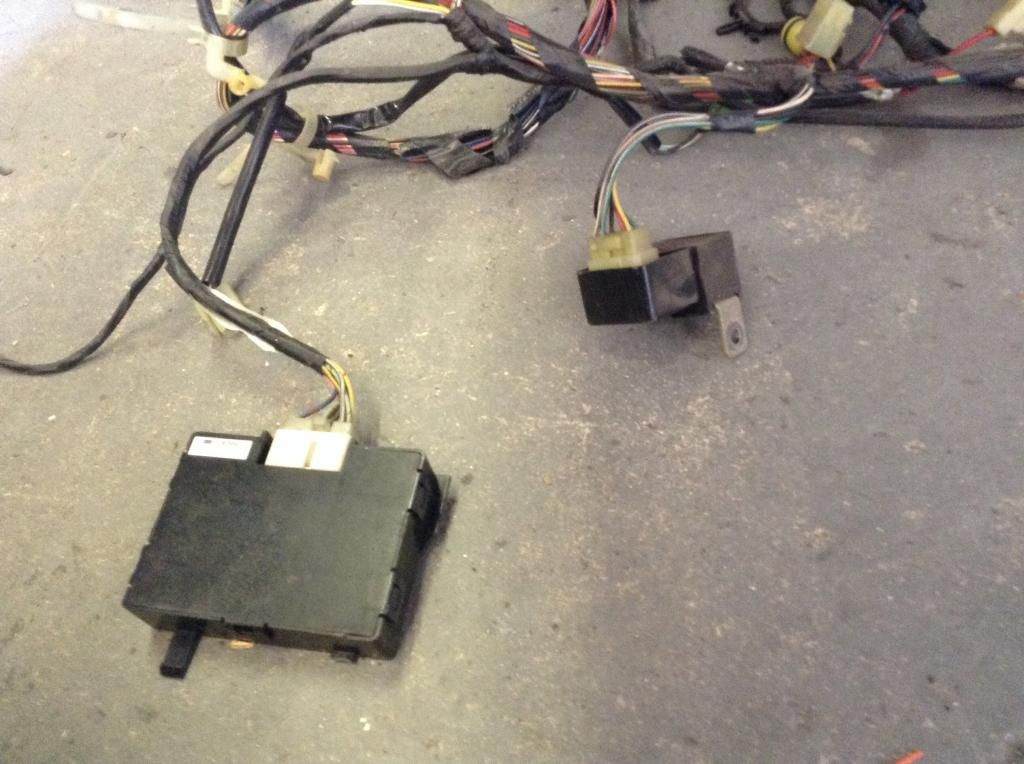

My first trivia question is what these two boxes are for. They mount to the inside of the firewall, above the heater box. I am guessing that they are related to the fan, but not sure. Anybody know what these boxes are for?

Here are the two boxes in question:

Posted Image

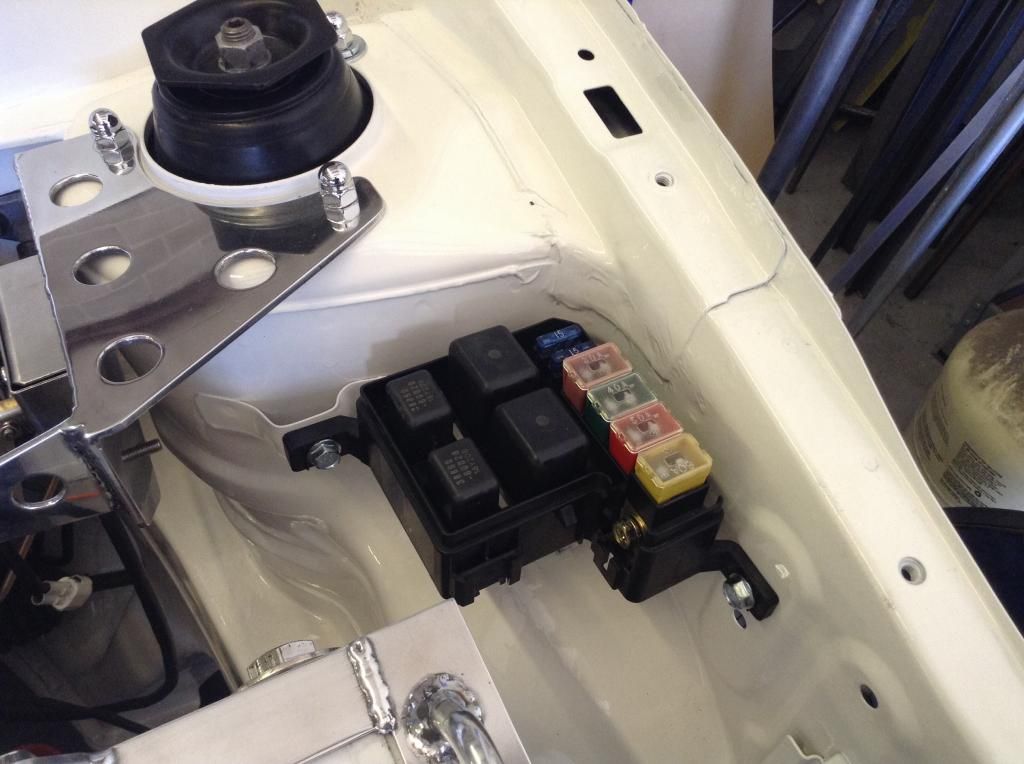

Next simple thing... I have not been able to round up the lid for this relay box, so I don't what relay or fuse is for what. Anybody have a pic of the lid or know what each item is for? I am hoping that there might be some stuff that I can re purpose...

Posted Image
Offline Profile Quote Post Goto Top

Coyote X


http://metroxfi.com/wp-content/uploads/2008/12/suzuki_swift_1993.pdf ignore the mpfi diagram and just use the tbi diagrams.
Offline Profile Quote Post Goto Top

Bad Bent
Member Avatar
Facetious Educated Donkey

evmetro
Jul 28 2014, 07:03 PM
Next simple thing... I have not been able to round up the lid for this relay box, so I don't what relay or fuse is for what. Anybody have a pic of the lid or know what each item is for? I am hoping that there might be some stuff that I can re purpose...

Posted Image
From Jittney... http://geometroforum.com/single/?p=256778&t=2559772

Main Fuse Block
1 - Air Conditioning Relay
2 - Air Conditioning Relay
3 - Fuel Pump Relay
4 - Fuel Injection Relay
5 - Generator to Battery Circuit (60 Amp)
6 - Horn (50 Amp)
7 - Junction Box (40 Amp)
8 - Air Conditioner (30 Amp)
9 - Fuel Injection (15 Amp)
10 - Air Conditioner (15 Amp)
Posted Image
Offline Profile Quote Post Goto Top

evmetro


Awesome! Thanks fellas. I see a lot that I can get rid of.
Offline Profile Quote Post Goto Top

Stiffchezze
Member Avatar
Sir Metrologist

The big box is the A/C amplifier. Basically, it controls when the A/C is on based on engine speed, load, pressures, etc. For your project it can be :shit caned.

The little box kinda looks like the key/light/seat belt minder. Not 100% on that one though. :news
Offline Profile Quote Post Goto Top

evmetro


Stiffchezze
Jul 29 2014, 01:12 AM
The big box is the A/C amplifier. Basically, it controls when the A/C is on based on engine speed, load, pressures, etc. For your project it can be :shit caned.

The little box kinda looks like the key/light/seat belt minder. Not 100% on that one though. :news
Way cool! Less is more...
Offline Profile Quote Post Goto Top

evmetro


When I gutted the harness for my first conversion, I was able to just walk over my gas burner Metro and see what all the plugs went to, but I don't have an early gas burner Metro around to compare this one to.

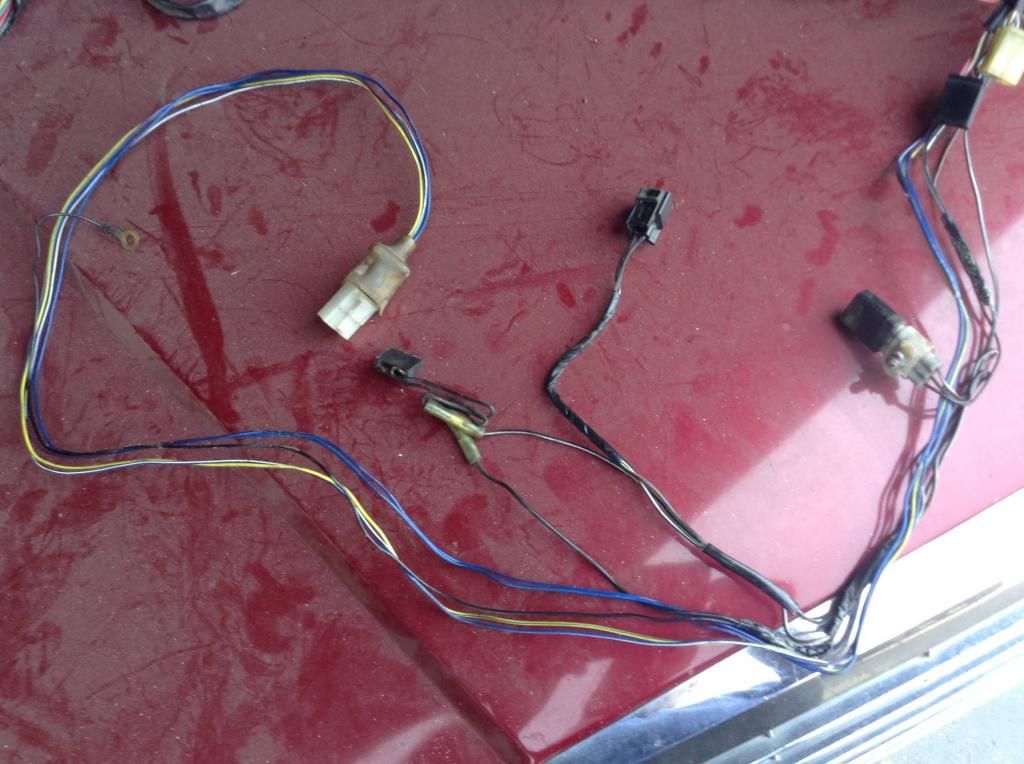

I wonder if somebody can identify what the plugs on this section go to. This is the branch of harness that goes to the wiper motor. I already removed the diagnostic connector with all the purple wires on it.

Posted Image

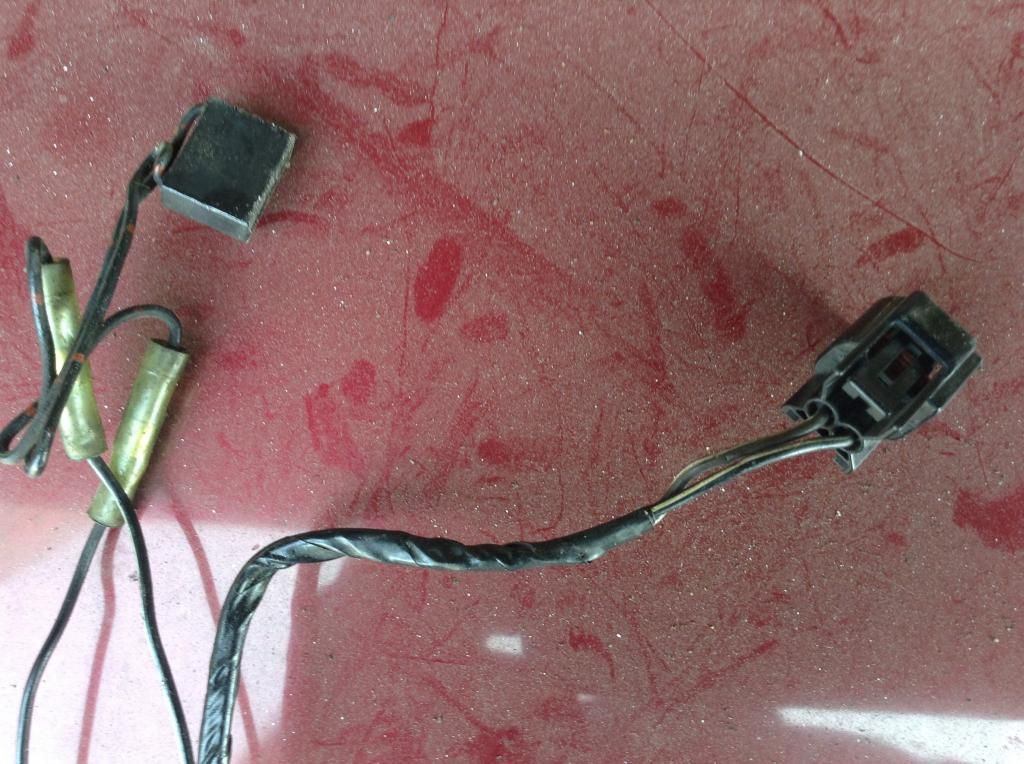

I don't know what this plug is for or what the little chip thingy is for.

Posted Image

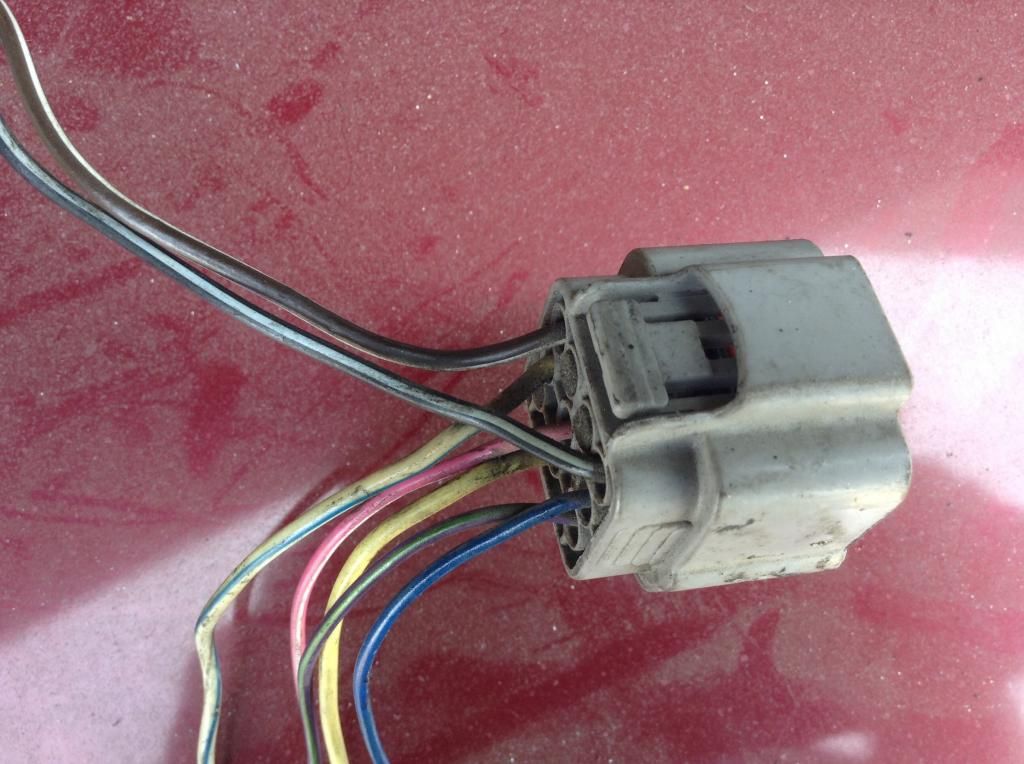

The other end of that black plug goes here. If I can eliminate that black plug, then I can eliminate this big ass gray one. This is where the wires from the little black plug go. These black and brown wires here are all that is left of this grey plug, and I can then drop it on the heap of stuff that is gone from this car.

Posted Image

Here is a closer shot of this other thing that is on this section of harnePosted Imagess...


Offline Profile Quote Post Goto Top

Bad Bent
Member Avatar
Facetious Educated Donkey

So rather than play trivia (which I'm not good at), how about taking a look at this thread? How to pull a G10 by starscream5000. So many pictures, so little time. :-/ :lol

Just trying to get answers sooner. :)
Offline Profile Quote Post Goto Top

myredvert
Member Avatar
myredvert

Harness diagrams in the FSM Section 6D5

FSM SECTION 6D5 ENGINE WIRING
