Driving Light Wiring Q&A
Topic Started: Mar 31 2015, 08:38 PM (710 Views)
Thart10

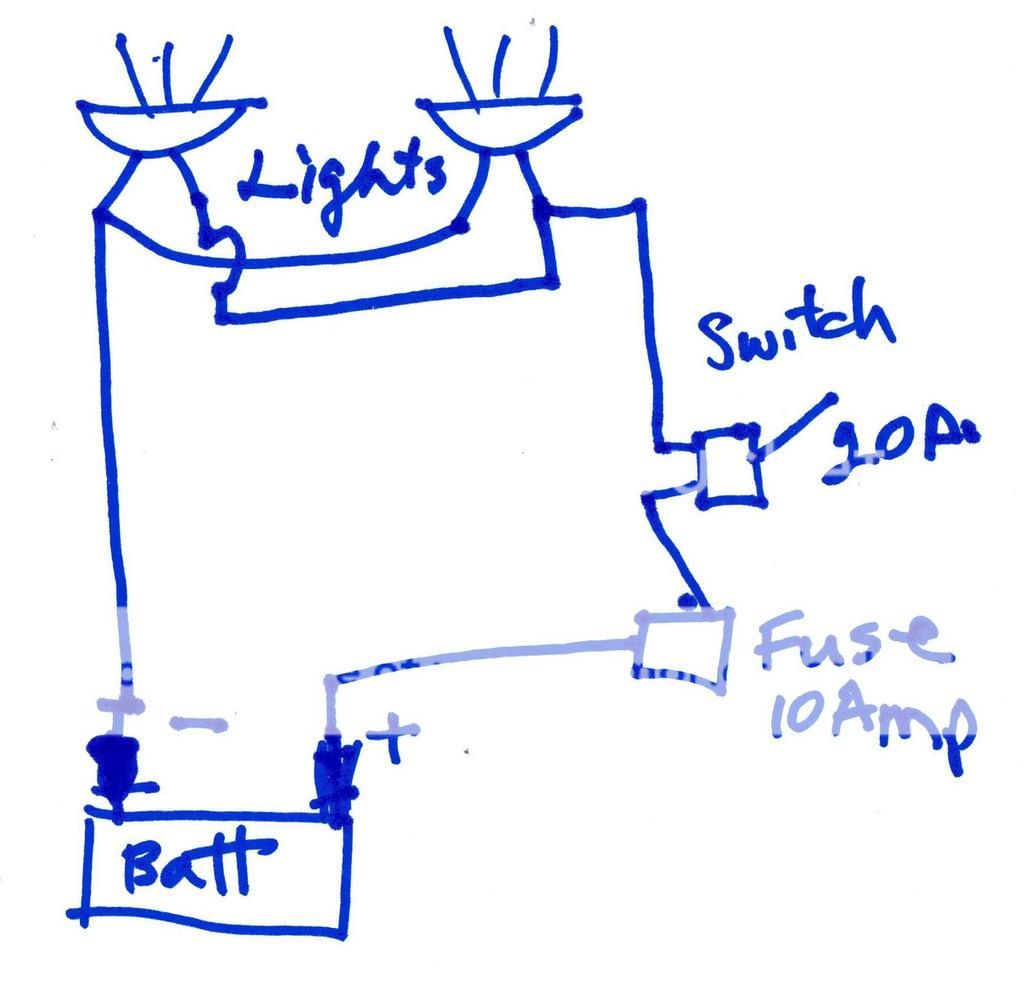

What is wrong with this arrangement? Crude drawing but it's that simple.
Posted Image

I've used this on many cars with a lot of Plastic in the Bumper area, rather than fish out a connection point on the Fuse box. Lately, the 20 Amp switches are getting HOT on both cars, to the point they Melt.
Something happened on the Geo last week. All the lights dimmed, Battery Light Came On and engine ran poorly. Switched OFF the Driving Lights and things returned to NORML
I added a Relay to the Toyota, but before I do that to the Geo, I want to be sure I'm not just moving a Fire Ignition source under the hood where I can't see it smoking until it's too late.
If something is "wrong", why doesn't it Blow the 10 A Fuse before melting the 20 A switches?

I'm thinking this system is getting the Full Battery Amperage and the Full Alternator Voltage, but using only the 12 Volts/10 Amps it was designed for.
