Toe in stick; Toe in stick
Topic Started: May 29 2016, 10:17 AM (688 Views)
fainya
Fainya
[ *  *  *  * ]
I got tires of having tape measures bend and flex when trying to check toe in by myself.
So with a 6' piece of 1/4 square tubing, some wire ties, and an old beat up tape measure I
Made a Toe in stick.

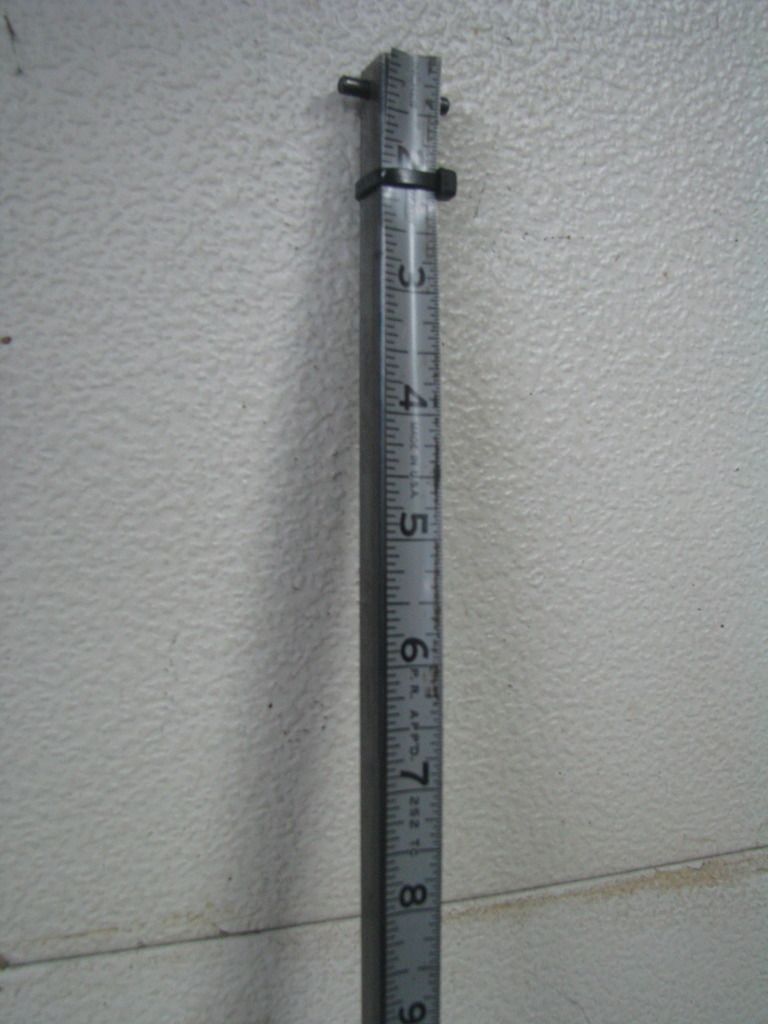

Posted Image

I drilled the end of the stick for a 1/8" split pin that I sue to grab the tire tread with.
I wire tied the tape measure to the 1/4" square tubing. Electrical tape the ends to the tubing so you don't cut
yourself on the sharp ends of the tape measure.

I made the toe in stick long enough to be able to check toe in on my larger trucks.

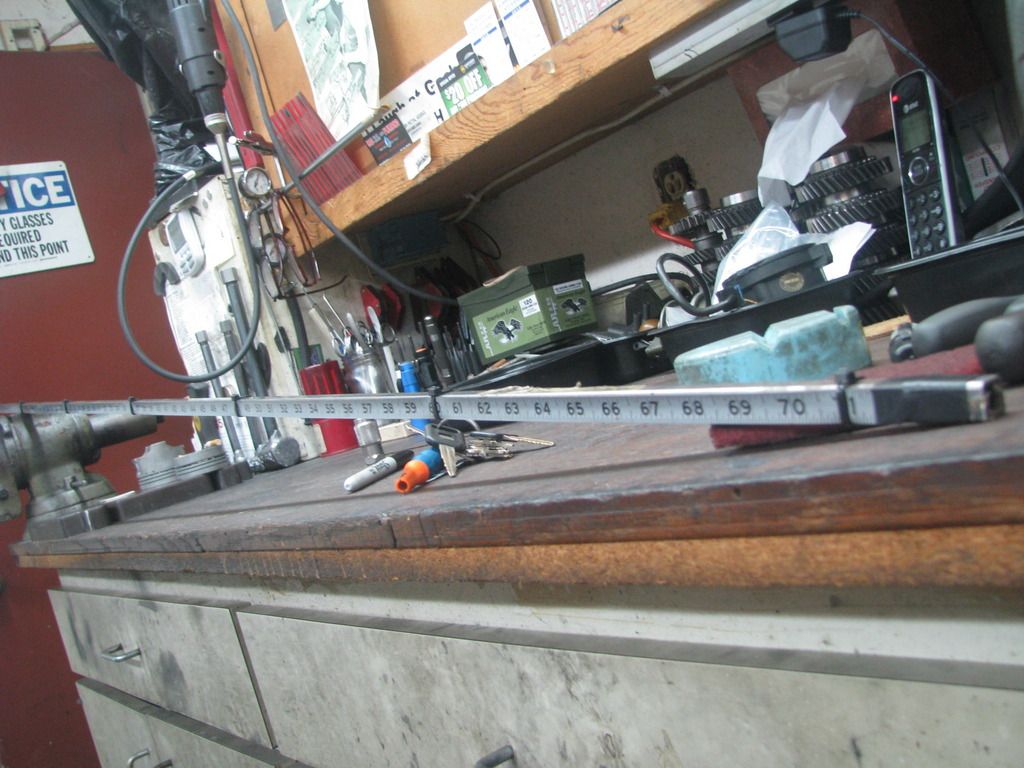

Posted Image

You can buy something like this from Eastwood, but I didn't think it was worth over $100.00.
Offline Profile Quote Post Goto Top

freegeo
Member Avatar


No pics?
Offline Profile Quote Post Goto Top

Silver2K



Posted Image

Posted Image

Offline Profile Quote Post Goto Top

fainya
Fainya
[ *  *  *  * ]
What did I do wrong on posting the pictures?
Offline Profile Quote Post Goto Top

davegran
Old Fart w/Wrenches

When I do an alignment, I construct a reference rectangle around the car using my aluminum straight edges. They are both equidistant from the centerline of the car to avoid dogtracking down the road. A toe bar doesn't take this into account. Once the straight edges are in place, I can measure from them to the front and rear of the wheels to find the individual amount of toe on each wheel.

Posted Image
Offline Profile Quote Post Goto Top

Silver2K


fainya

What did I do wrong on posting the pictures?


Your image hosting account has different links depending on the end user. The links you provided were for a picture to show up on a twitter account. I used the links for "image".

image: http://i1381.photobucket.com/albums/ah224/Fainya/Cars/IMG_4216_zpsamco8fpv.jpg

twitter: http://s1381.photobucket.com/user/Fainya/media/Cars/IMG_4216_zpsamco8fpv.jpg.html?o=1

Offline Profile Quote Post Goto Top

iveyjh
Member Avatar


davegran
May 30 2016, 06:40 AM
When I do an alignment, I construct a reference rectangle around the car using my aluminum straight edges. They are both equidistant from the centerline of the car to avoid dogtracking down the road. A toe bar doesn't take this into account. Once the straight edges are in place, I can measure from them to the front and rear of the wheels to find the individual amount of toe on each wheel.

Posted Image
I do the same but with string and jack stands.
